FEIG · RFID reader

FEIG ISO15693 Proximity Tischleser

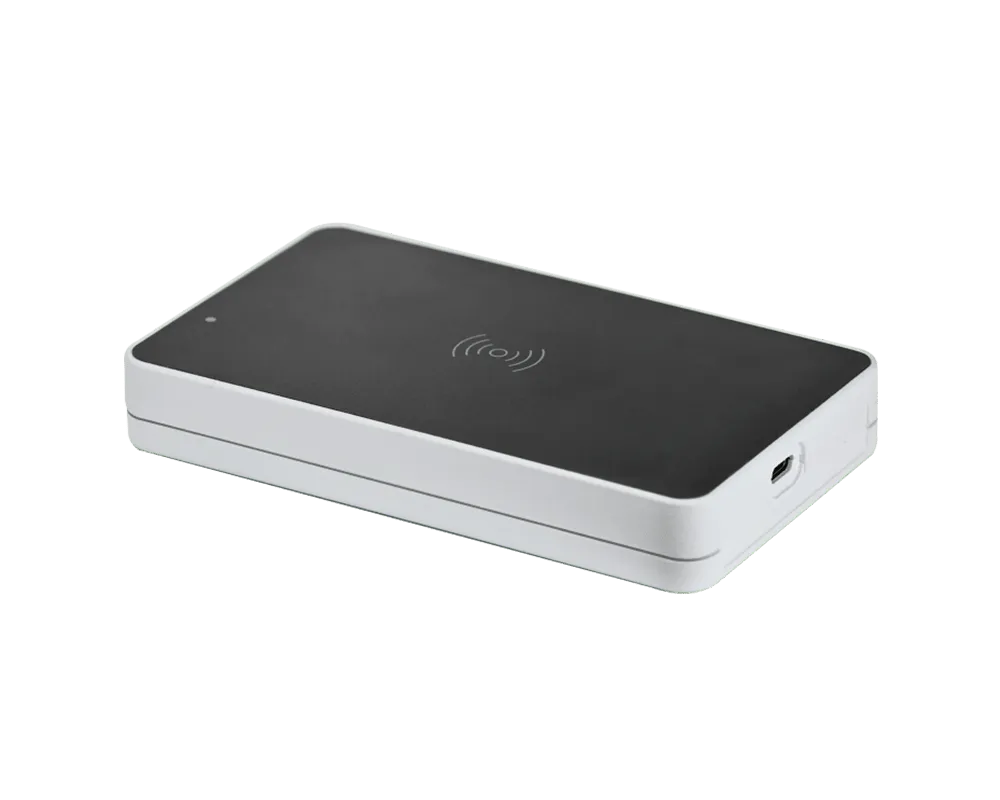

Der HF Proximity Reader ID PR103 für zahlreiche Anwendungen, der zusätzlich auch als Modul erhältlich ist.

SealingID PR103: IP 30; ID PRM103: none

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Dimensions: ID PR103: 145 x 85 x 22 mm; ID PRM103: 138 x 77 x 17 mm
Weight: ID PR103: 130 g; ID PRM103: 50 g
Housing: Plastic ABS
Color: Housing: similar to RAL 9016 (traffi c white); Front film: similar to RAL 9017 (traffi c black)
IP / sealing: ID PR103: IP 30; ID PRM103: none
Operating frequency: 13.56 MHz
Transmitting power: 0.6 W ± 2 dB
Supply voltage: 5 V DC (via USB)
Current consumption: max. 0.5 A
Power consumption: max. 2.5 VA
Antenna: integrated
Scan range / decode distances: max. 20 cm
Ports / interfaces: USB 2.0
Interface connector: USB-C
Indicators, optical: 1 LED (multicolored)
Supported transponders: ISO 15693, (ISO 18000-3 MODE 1)* NXP ICode 1, NFC tag Type 5
Operation modes: ISO Host Mode, Scan Mode
Temperature range operation: −25 °C up to +60 °C
Temperature range storage: −25 °C up to +70 °C
Relative air humidity: 5 % up to 95 % (non-condensing)
Radio license: Europe, UK: EN 300 330 / USA: FCC 47 CFR Part 15 / Canada: IC RSS-GEN, RSS-210
EMC: EN 301 489
Safety & Health: EN 62368-1, EN 50364
ID PR103-USB: Housing Version with USB 2.0 interface
ID PRM103-USB: Module Version with USB 2.0 interface
ID MS.MR103/PR103-A: Mounting kit
ID CAB.USB-AC: USB interface cable, USB-A to USB-C
ID CAB.USB-CC: USB interface cable, USB-C to USB-C
