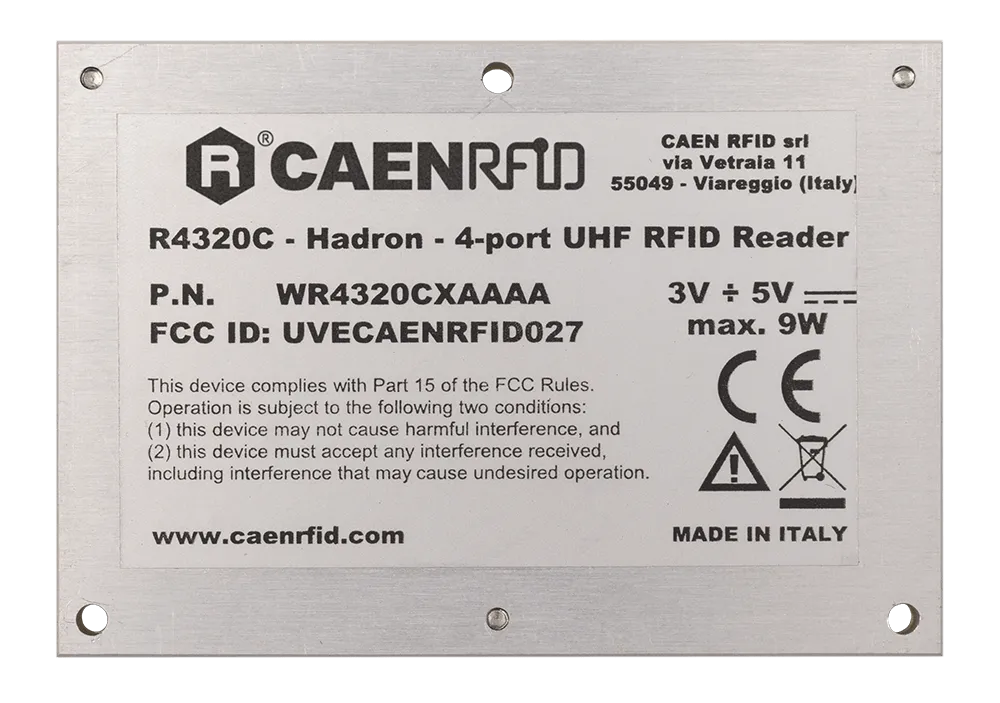

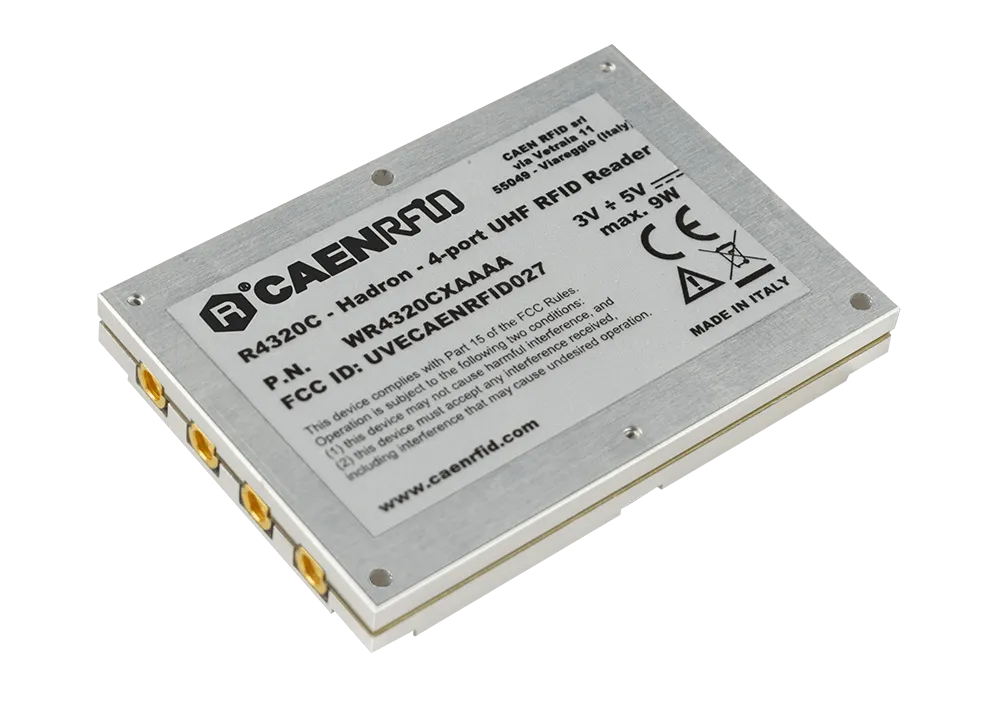

CAEN RFID Hadron
The Hadron (Model R4320C), embedded module of the easy2read © product line, is a RAIN RFID multiregional compact reader for high performances applications. With programmable output power from 10dBm to 31.5dBm, the reader reaches top reading performances being able to detect RAIN tags from a distance of 9 m. (30 feet) depending on the antenna and the tag used.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Frequency Range
- 865.600÷867.600 MHz (ETSI EN 302 208 v3.1.1) 902÷928 MHz (FCC part 15.247)
- RF Power
- Programmable from 10dBm to 31.5dBm (30dBm for FCC)
- RX Sensitivity
- -84dBm – 10%PER, assuming 20 dB antenna RL @ 31.5 dBm output
- Output Power Accuracy
- +/- 1dB
- Antenna VSWR Requirement
- < 2:1 for optimum performances

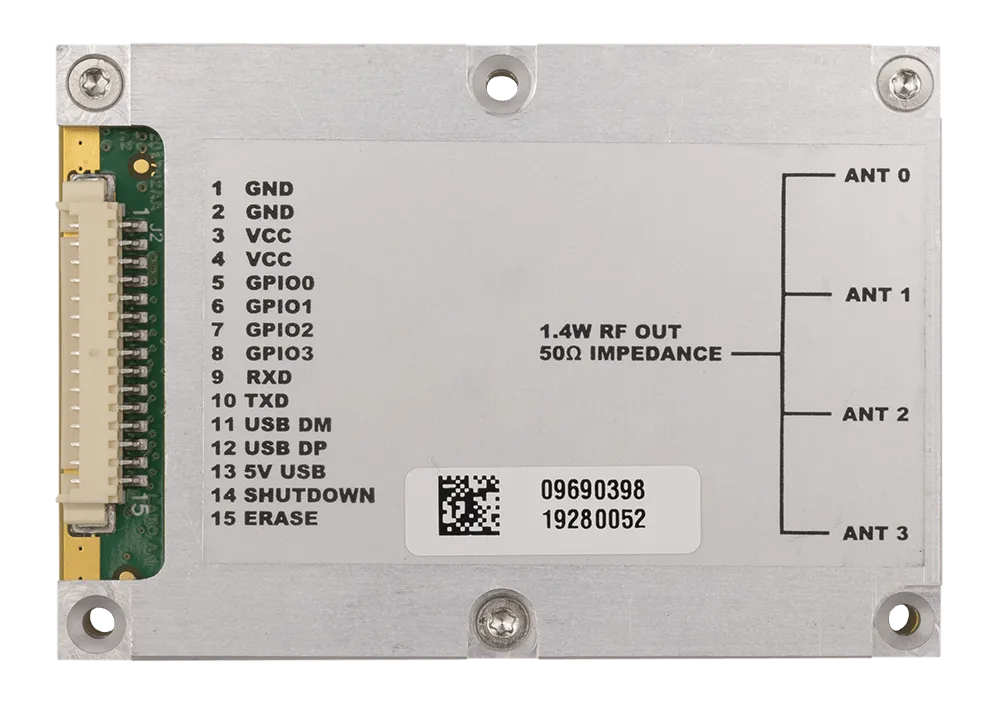

- Antenna Connectors
- Nr. 4 MMCX jacks
- Frequency Tolerance
- ±10ppm over the entire temperature range
- Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v3.1.1) 50 hopping channels (compliant to FCC part 15.247)
- Standard Compliance
- EPC C1G2 / ISO18000-63
- Digital I/O
- 4 I/O lines 3.3V out @ 3mA; 5V tolerant
- Forward Link Characteristics
- PR-ASK 40kBit/s; DSB-ASK 160kBit/s (FCC only)
- Return Link Characteristics
- Miller encoding (M=4; LF=250kHz) Miller encoding (M=4; LF=300kHz) FM0 400kbit/s (FCC only)
- Connectivity
- USB interface One USB 2.0 Full Speed (12 Mbit/s) device port UART Serial Port – Baudrate: up to 115200 – Databits: 8 – Stopbits:1 – Parity: none – Flow control: none – 3.3 V I/O voltage level

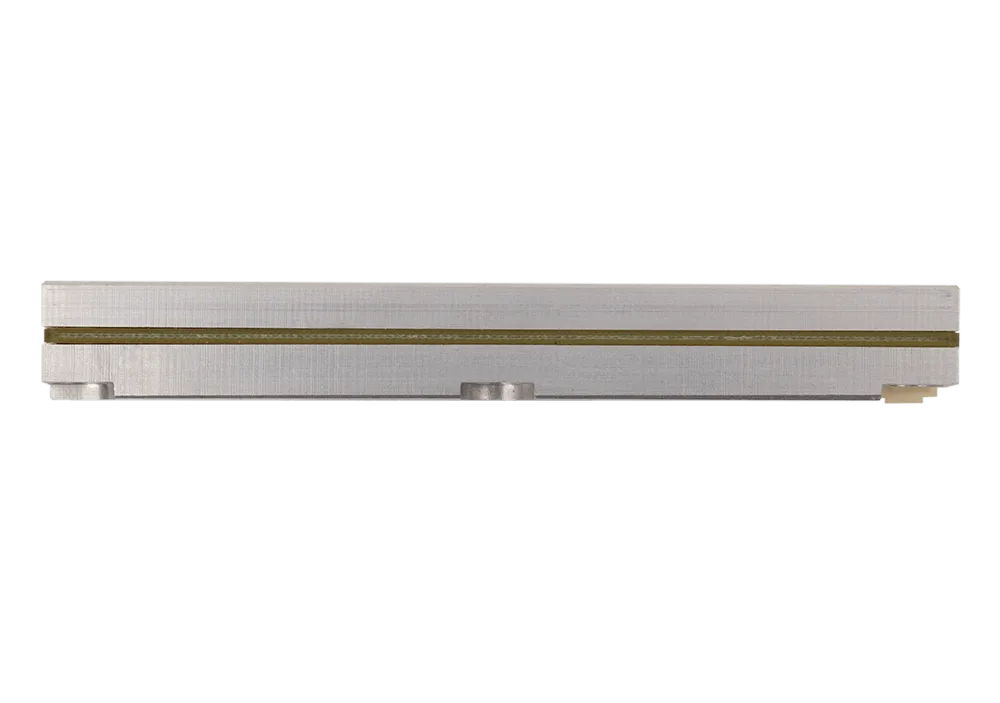

- Dimensions
- (L) 60 x (W) 42 x (H) 7,5 mm 3
- Power Consumption (max)
- 8.5W peak (TX/RX mode)
- DC Power
- 3,5 VDC ÷ 5.5 VDC
- Operating temperature
- -20°C to +60°C
- Weight
- 35 g
