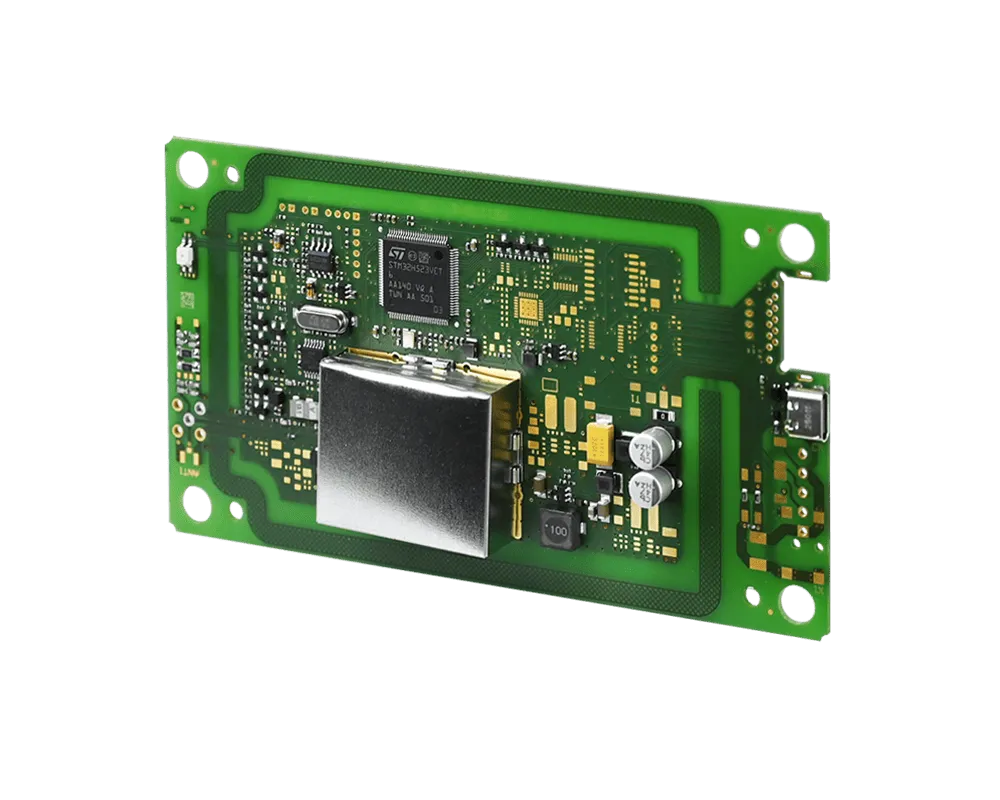

FEIG ISO15693 Proximity Readermodul
Der HF Proximity Readermodul ID PRM103 für zahlreiche Anwendungen, das zusätzlich auch als Gehäusevariante erhältlich ist.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 138 x 77 x 17 mm
- Weight
- 50 g
- Operating frequency
- 13.56 MHz
- Transmitting power
- 0.6 W ± 2 dB
- Supply voltage
- 5 V DC (via USB)
- Current consumption
- max. 0.5 A
- Power consumption
- max. 2.5 VA
- Antenna
- inregrated
- Scan range / decode distances
- max. 20 cm
- Ports / interfaces
- USB 2.0
- Interface connector
- USB-C
- Indicators, optical
- 1 LED (multicolored)
- Supported transponders
- ISO 15693, (ISO 18000-3 MODE 1)* NXP ICode 1, NFC tag Type 5
- Operation modes
- ISO Host Mode, Scan Mode
- Temperature range
- Operation: −25 °C up to +60 °C; Storage: −25 °C up to +70 °C
- Relative air humidity
- 5 % up to 95 % (non-condensing)
- Radio license
- Europe, UK: EN 300 300 / USA: FCC 47 CFR Part 15 / Canada: IC RSS-GEN, RSS-210
- EMC
- EN 301 489
- Safety & Health
- EN 62368-1, EN 50364
- ID PRM103-USB
- Module Version with USB 2.0 interface
- ID PR103-USB
- Housing Version with USB 2.0 interface
- ID MS.MR103/PR103-A
- Mounting kit for housing version
- ID CAB.USB-AC
- USB interface cable, USB-A to USB-C
- ID CAB.USB-CC
- USB interface cable, USB-C to USB-C
