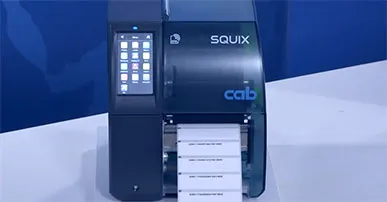

CAB SQUIX UHF RFID
Highest industrial reliability in processes related to writing and printing RFID labels.
- ScanningCC200-SQ
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Operated with basic and peel-off units
- SQUIX 4.3, SQUIX 4 SQUIX 4.3P, SQUIX 4P SQUIX 4.3 M, SQUIX 4 M SQUIX 4.3 MP, SQUIX 4 MP SQUIX 4.3 MT, SQUIX 4 MT
- Controls
- no final cutter position, cover off cutter
- Label height mm max.
- 100
- Operated with basic and peel-off units
- SQUIX 4.3 M, SQUIX 4 M SQUIX 4.3 MP, SQUIX 4 MP SQUIX 4.3 MT, SQUIX 4 MT
- Material Weight (cardboard) gr/m 2
- 60-300
- Cutting length mm at least
- 5
- Material passage mm max.
- 2.5
- Performance* cuts/min
- 100
- Printing stops if
- no final cutter position
- Perforation : Width of off-cuts mm
- 0.5
- Material: Width mm max.
- 85
- Material: Weight (cardboard) gr/m 2
- 60 - 300
- Material: Thickness mm
- 0.05 - 1.1
- Stacker providing a cutter
- ST400 M
- Operated with
- SQUIX 4.3 M, SQUIX 4 M, SQUIX 4.3 MT, SQUIX 4 MT
- Material Width mm
- 20 - 100
- Material Weight (cardboard) gr/m 2
- 60 - 300
- Material Thickness mm
- 0.05 - 0.8
- Cutting length mm
- 20 - 150
- Material passage mm max.
- 1.2
- Printing stops if
- no final cutter position, paper jam, cover open, limit of collecting
- Limit of collecting mm max.
- 100
- Scan engines / capture options
- CC200-SQ
- Operated with
- all SQUIX units
- Scan distance mm
- 45 - 150
- Scan angle °
- -15 to +15
- Number of codes on a label
- 1
- Controls GOODBAD
- check of legibility
- Controls VERIFY
- check of legibility and results compared with initial data
- Roll diameter mm max.
- 142
- Clamping axle provided for core diameters of mm
- 38.1 - 40
- Winding
- outside
- Roll diameter mm max.
- 205
- Core diameter mm
- 40 if a winder axle or a cardboard core are in use 76 if a cardboard core is in use with an adapter
- Winding
- outside or inside
- Roll diameter mm max.
- 300
- Core diameter mm
- 38.1
- Core diameter mm if an adapter is in use
- 76
- Tube applicator
- AXON 2
- Operated with
- SQUIX 4.3 MP, SQUIX 4 MP
- Tubes Diameter mm
- 10 - 22
- Tubes Length, closure cap included mm
- 25 - 120
- Tubes Conicity % max.
- 0.8
- Labels Materials
- paper, synthetics such as PET, PP
- Labels Width mm
- 5 - 56
- Labels Height mm at least
- 12
- Liner Width mm max.
- 60
- Controls
- applicator pivoted, tube missing, incorrect tube diameter
- Wrap-around applicator
- WICON
- Use
- SQUIX 4 MP
- 1 Item diameter 1) mm
- 2.0 - 16.0
- 2 Item length mm at least
- 134
- 3 Centering panel distant to left and right mm
- 124
- 4 Label margin distant to edge of item by stop mm
- 25 - 120
- mm 5 Label margin distant to centering panel
- 12.7
- 5 Deflection related to a length of 124 mm max. mm
- 1
- 6 Label width mm
- 12.7 - 50.8
- 6 Label height mm
- 19.1 - 70.0
- Applicator Number of wrap-arounds
- 2 - 10
- Applicator Speed of wrapping u/sec
- 3.0
