CAEN RFID · RFID reader
CAEN RFID fIDo

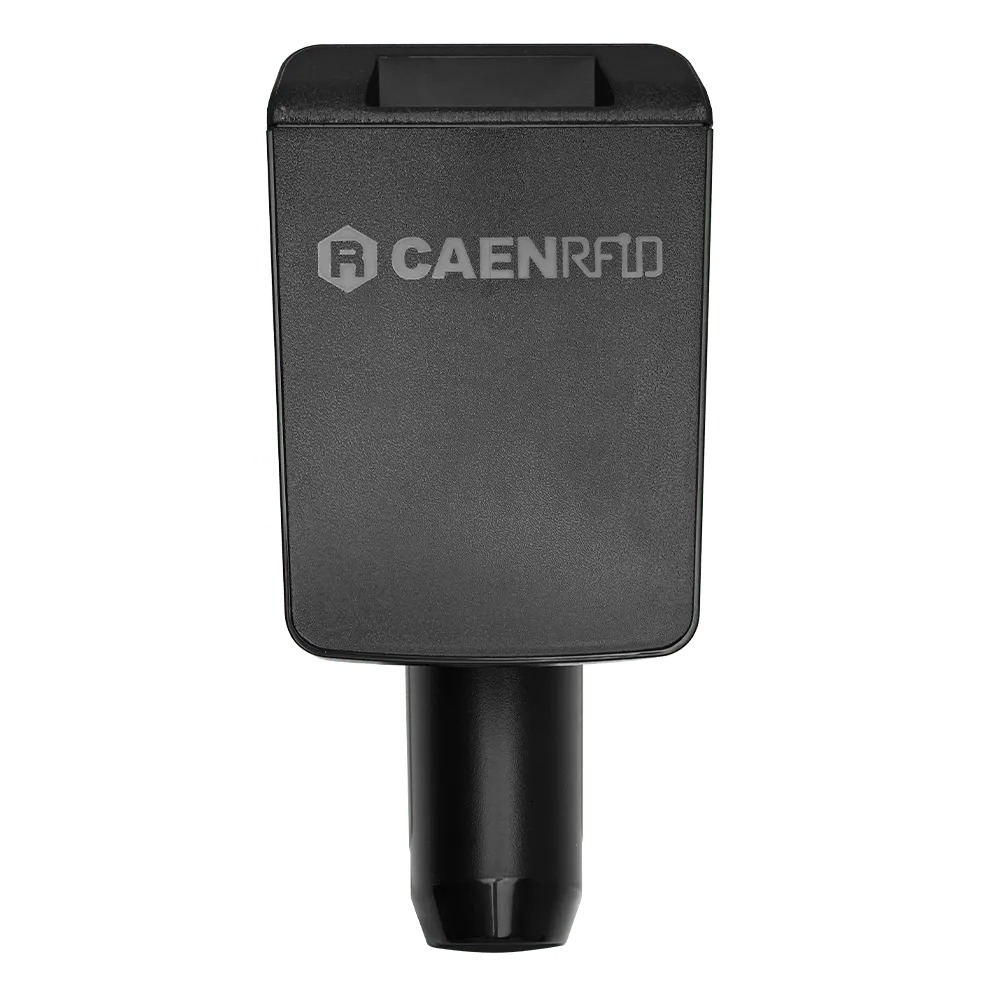

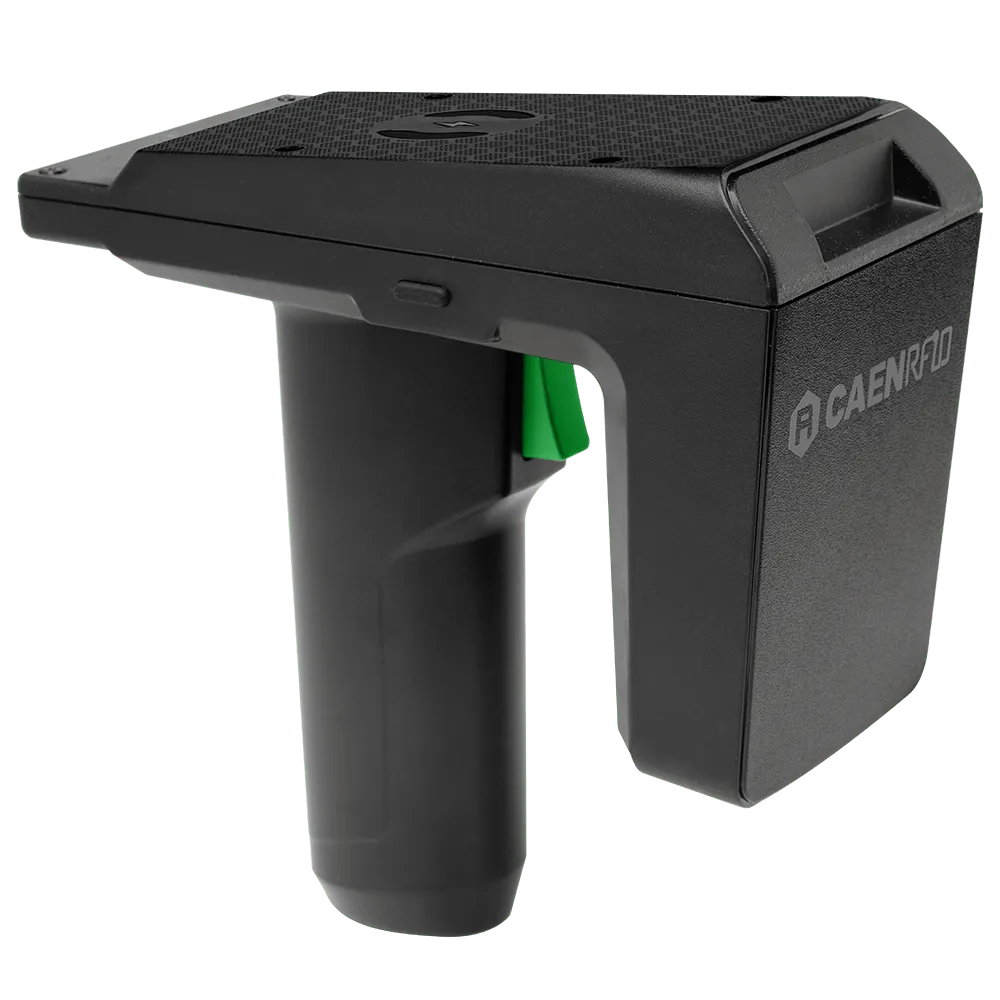

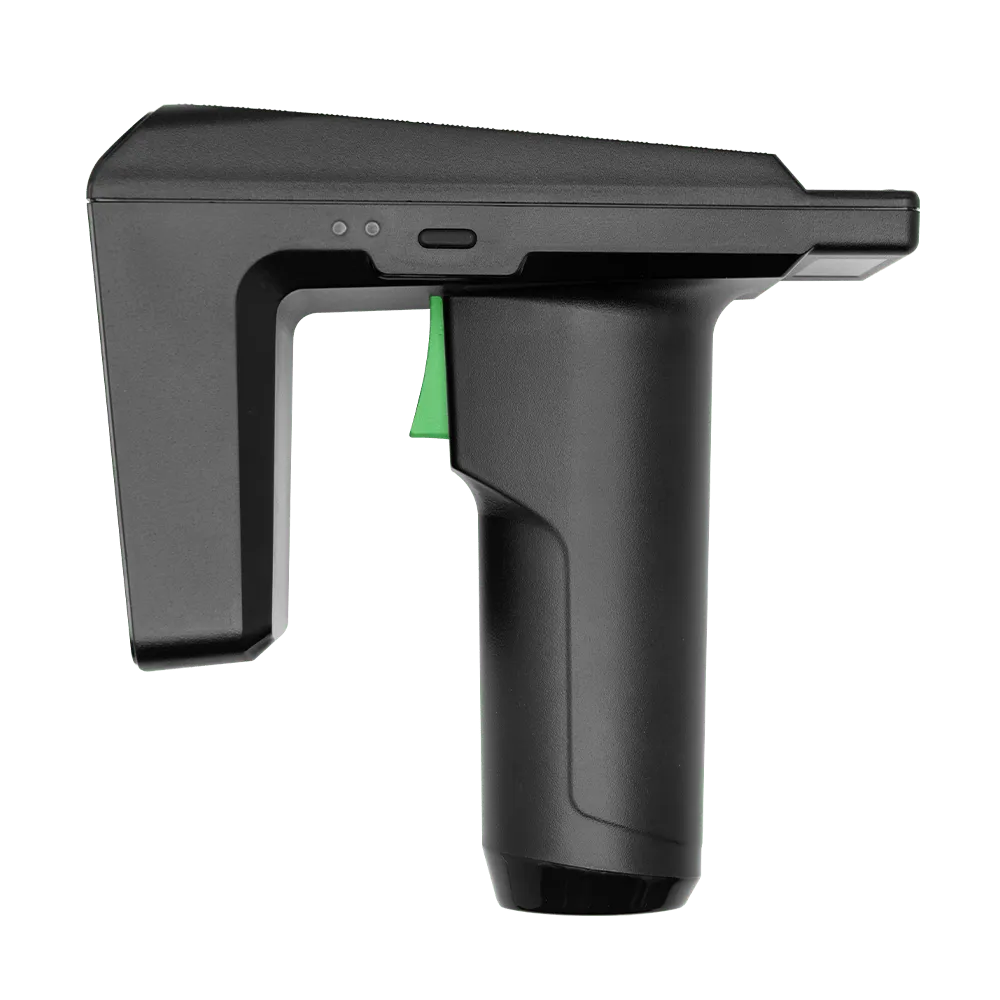

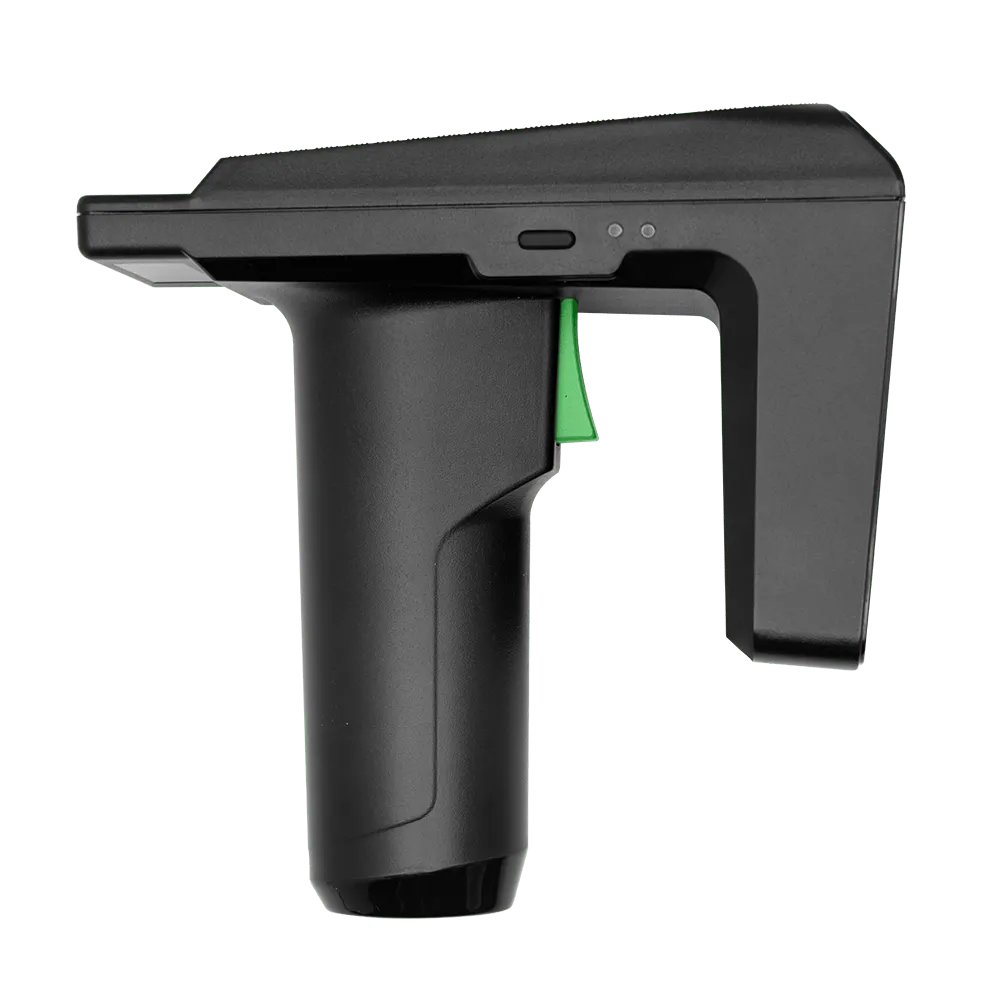

fIDo (Model R1307IE, R1307IU) is a RAIN RFID sled reader of the easy2read © product line with integrated antenna for long range applications.
- BatteryLi-Ion 3.7 V, 5200 mAh Operating: > 12 h (with 100,000 tag readings) Standby: > 50 days (powered off, no LED…
- SealingIP65
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Frequency Range
- 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.4.1) (Mod. R1307IE) 902÷928 MHz (FCC part 15.247) (Mod. R1307IU)
- RF Power
- Configurable from 1 dBm ERP to 28 dBm ERP (Mod. R1307IE) Configurable from 3 dBm EIRP to 30 dBm EIRP (Mod. R1307IU)
- RX Sensitivity
- -85 dBm – 10%PER @ 30 dBm output
- Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.4.1) (Mod. R1307IE) 50 hopping channels (compliant to FCC part 15.247) (Mod. R1307IU)
- Standard Compliance
- EPC Class 1 Gen 2 – ISO18000-63
- Antenna gain
- 3.0 dBic (typical)
- Antenna polarization
- Integrated Circular Polarized Antenna
- Scan range / decode distances
- Up to 10.0 m
- USB Interface
- USB 2.0 Full Speed (12 Mbit/s) via USB Type-C connector
- Bluetooth Interface
- Bluetooth 4.2 Smart Ready compliant 11 dBm EIRP output power BR 5 dBm EIRP output power EDR 7 dBm EIRP output power BLE HID and Serial over GATT (BLE) HID and SPP profiles (Bluetooth classic)
- User Interface
- Power and Trigger buttons Power and battery status LED Communication and operation result LED Bi-tonal buzzer and vibration element for event signaling
- Battery / runtime
- Li-Ion 3.7 V, 5200 mAh
- Battery / runtime
- Operating: > 12 h (with 100,000 tag readings) Standby: > 50 days (powered off, no LED blinking)
- Battery Charging Time
- 4 hours with 5V 3A AC/DC power supply (with Wireless Charger TX disabled) 6 hours with 5V 3A AC/DC power supply (with Wireless Charger TX enabled)

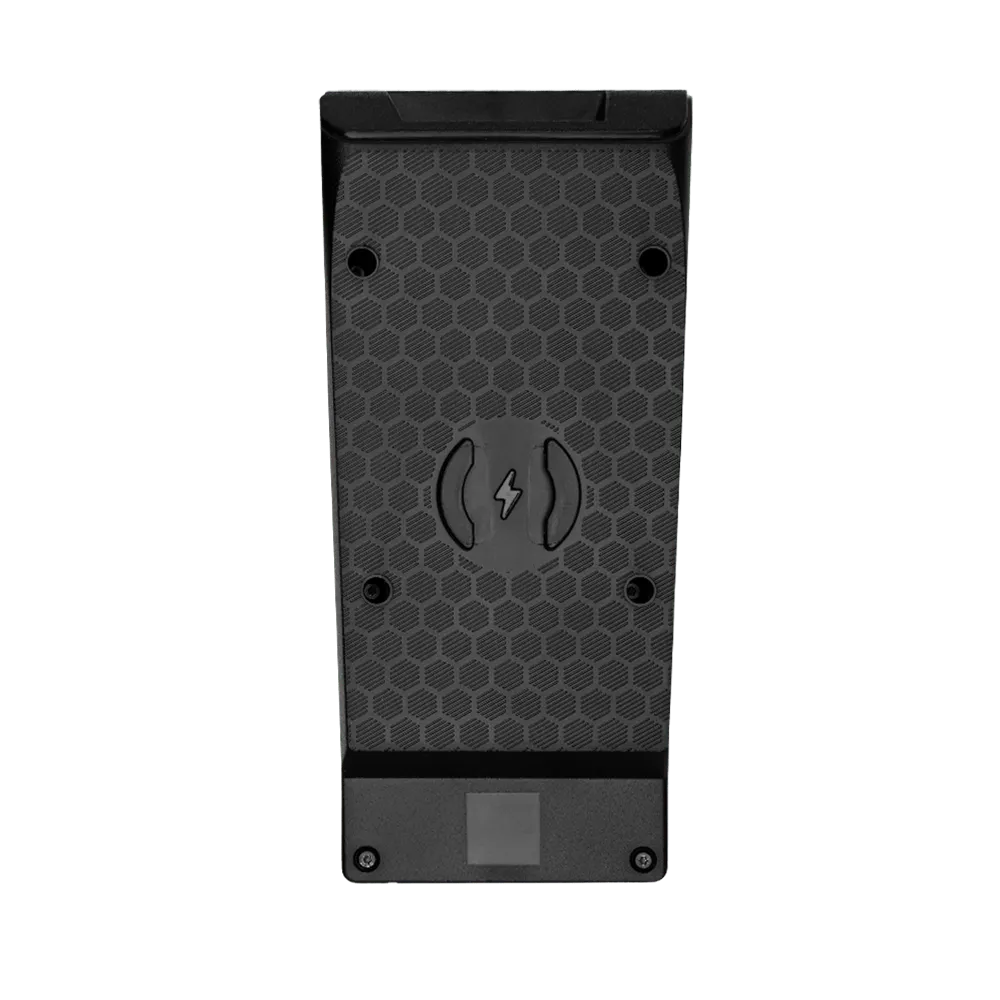

- Wireless Charger
- Transmitter power 5W
- IP / sealing
- IP65
- Dimensions
- 151 x 150 x 72 mm 3 5.9 x 5.9 x 2.8 inches 3
- Operating temperature
- -10 °C to +55 °C
- USB Cable Length
- 1.5 m
- Weight
- 374 g (w/o barcode) 386 g (with barcode)
