FEIG · Accessory

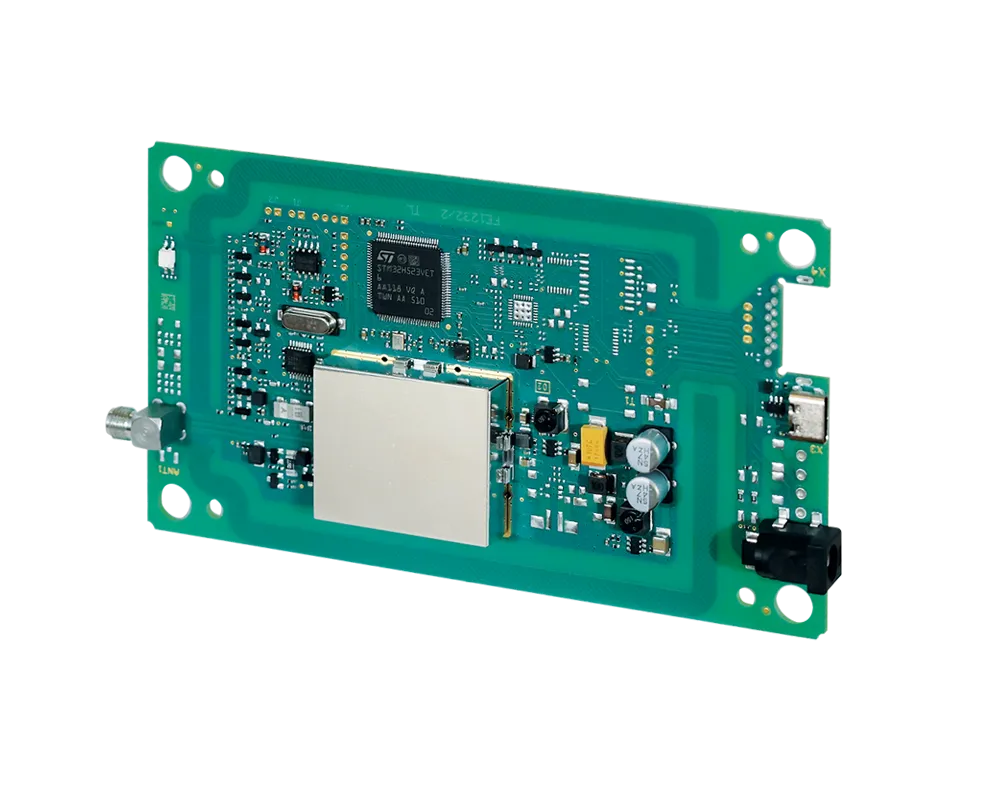

FEIG ISO15693 Mid Range Readermodul
Kompaktes HF Multitag-Readermodul: ISO 15693-Reader in 2 verschiedenen Schnittstellen-Varianten
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 145 mm x 77 mm x 17 mm
- Weight
- 56 g
- Operating frequency
- 13.56 MHz
- Transmitting power
- Standard: 1.2 W ± 1 dB; High power: 1.5 W ± 1 dB
- Power Supply ID MRM103-A/-USB
- 12 V DC up to 24 V DC
- Power consumption
- max. 6 W
- Antenna connector
- 1 x SMA connector (50 Ω)
- Supply voltage at antenna output
- 5 V (5 mA)
- ID MRM103-A
- RS232
- ID MRM103-USB
- USB 2.0
- Indicators, optical
- 1 LED (multicolored)
- Supported transponders
- ISO 15693 / ISO 18000-3 Mode 1*, I-Code 1
- Reader modes
- ISO Host Mode, Scan Mode, Notification Mode**
- Others
- Antenna shortcut detection, Temperature control, Full support of the external multiplexer ID ANT.Mux.5
- Temperature range
- Operation: −25 °C up to +55 °C; Storage: −40 °C up to +85 °C
- Relative air humidity
- 5 % up to 95 % (non-condensing)
- Radio license
- Euope: EN 300 330; USA: FCC 47 CFR Part 15; Canada: IC RSS-GEN, RSS-210
- EMC
- EN 301 489
- Safety & Health
- EN 62368-1, EN 50364
- EN 62368-1, EN 50364
- EN 60068-2-6 10 up to 150 Hz: 0.075 mm / 1 g
- Shock
- EN 60068-2-27 Acceleration: 30 g
- ID MRM103-A
- Module version; RS232 asynchr.
- ID MRM103-USB
- Module version; USB 2.0
