FEIG ISO15693 Mid Range Tischleser

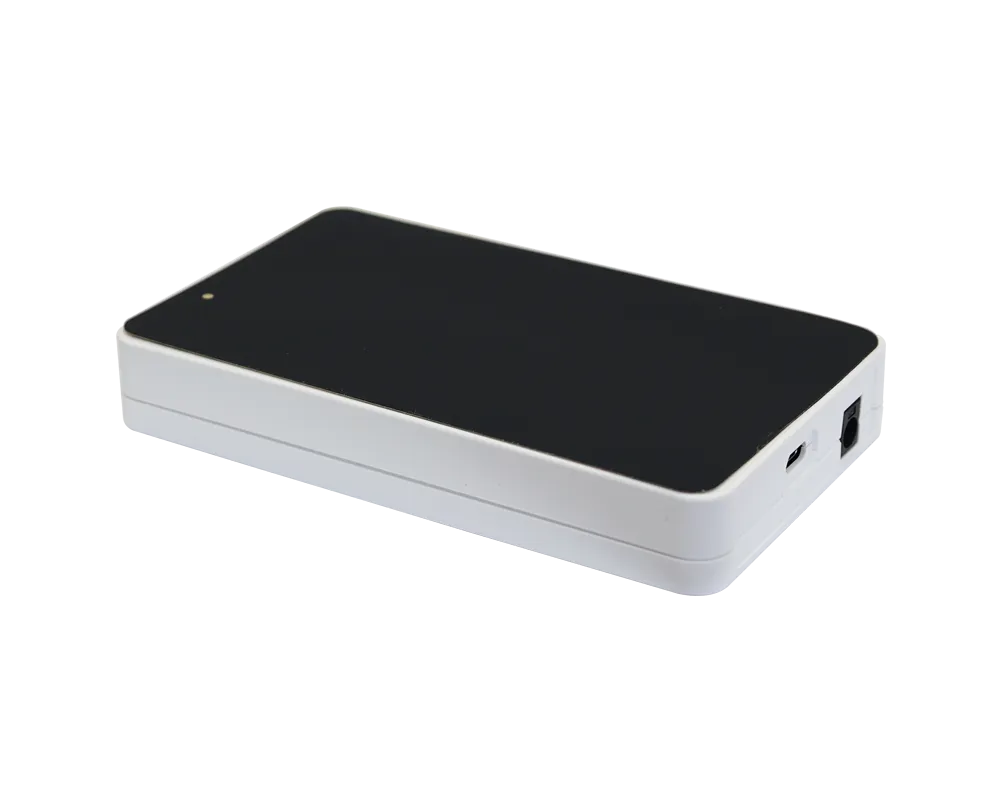

Der HF Mid Range Reader ID MR103 mit umfangreichen Schnittstellen für zahlreiche Anwendungen, der auch als Modul erhältlich ist.
- SealingMR103: IP30; MRM103: none
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- MR103: 145 mm x 85 mm x 22 mm; MRM103: 145 mm x 77 mm x 17 mm*
- Weight
- MR103: 150 g; MRM103: 56 g
- Housing
- Plastic ASA
- Color
- Housing: similar to RAL 9016 (traffic white); Color front film: similar to RAL 9017 (traffic black)
- IP / sealing
- MR103: IP30; MRM103: none
- Operating frequency
- 13.56 MHz
- Transmitting power
- Standard: 1.2 W ± 1 dB; High Power: 1.5 W ± 1 dB
- Charging / power
- MR103-A/-USB, MRM103-A/-USB, MR103-E: 12 V DC up to 24 V DC each
- Power consumption
- max. 6 W
- Antenna connector
- 1 x SMA connector (50 Ω)
- Supply voltage at antenna output
- 5 V (5 mA)
- Ports / interfaces
- MR103-A: RS232; MR103-E: Ethernet (TCP/IP); MR103-USB and MR103-USBC: USB2.0 each
- Indicators, optical
- 1 LED (multicolored)
- Supported transponders
- ISO 15693 / ISO 18000-3 Mode 1**, I-Code 1
- Reader modes
- ISO Host Mode, Scan Mode, Notification Mode*
- Others
- Antenna shortcut detection, Temperature control, Full support of the external multiplexer ID ANT.Mux.5
- Temperature range
- Operation: −25 °C up to +55 °C; Storage: −40 °C up to +85 °C
- Relative air humidity
- 5 % up to 95 % (non-condensing)
- Radio license
- Europe: EN 300 330; USA: FCC 47 CFR Part 15; Canada: IC RSS-GEN, RSS-210
- EMC
- EN 301 489
- Safety & Health
- EN 62368-1, EN 50364
- Vibration
- EN 60068-2-6 10 up to 150 Hz: 0.075 mm / 1 g
- Shock
- EN 60068-2-27 Acceleration: 30 g
- ID MR103-A
- Housing version; RS232 asynchr.

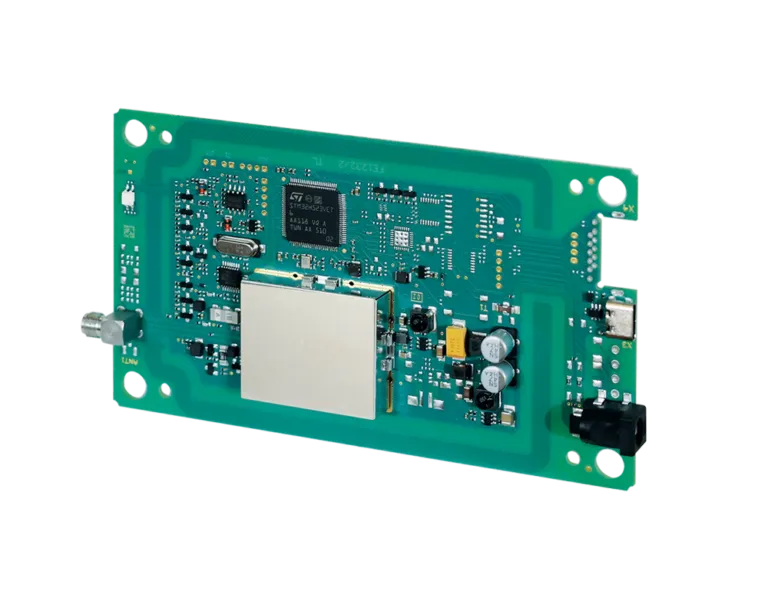

- ID MRM103-A
- Module version; RS232 asynchr.
- MR103-E
- Housing version; Ethernet
- ID MR103-USB
- Housing version; USB 2.0
- ID MRM103-USB
- Module version; USB 2.0
- ID MR103-USBC
- Housing version; USB 2.0 powered via USB Type-C Conector
