FEIG · RFID reader

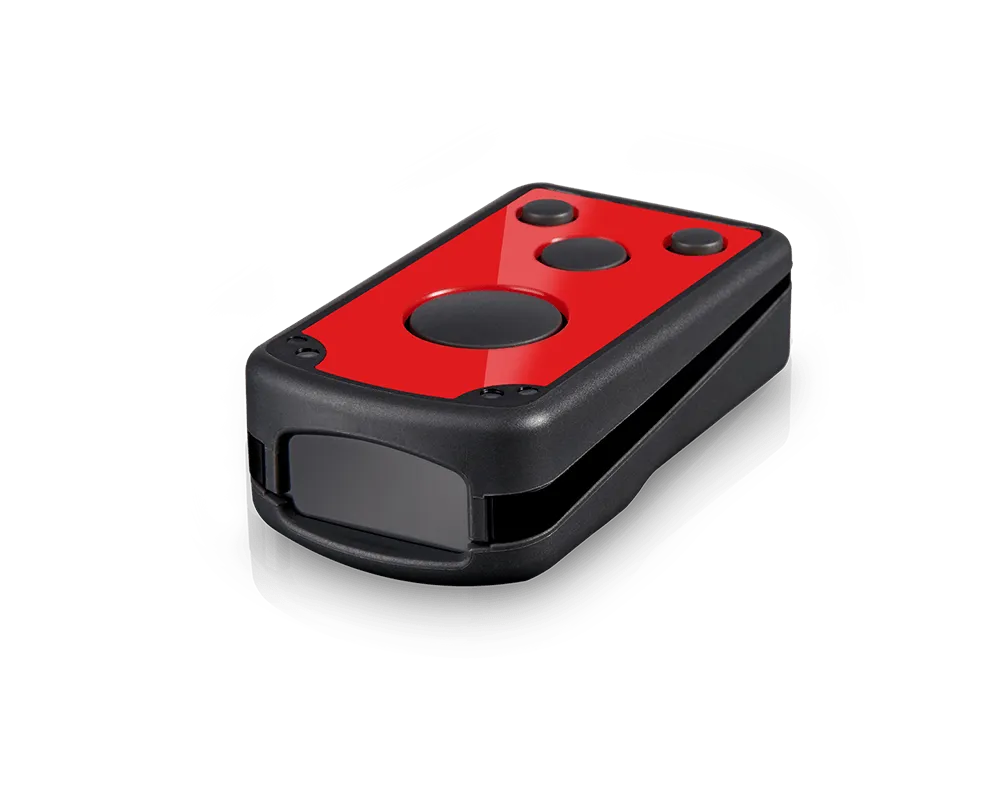

FEIG ID ECCO Smart
Robust NFC booster & barcode scanner (BLE 5.0) for programming and maintenance work in LED industry, transport, logistics and healthcare.
- SealingIP54
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 87 mm x 48 mm x 26 mm (3.42“ x 1.89“ x 1.02“)
- Weight
- 98 g
- Housing
- double-walled, rubber coated
- Color
- black, red
- IP / sealing
- IP54
- Operating frequency
- 13.56 MHz
- Transmitting power
- 1.5 W HF Reader IC
- Supported transponders
- ISO 15693
- Barcode 1D Symbol sets
- EAN-8, EAN-13, ISBN, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2of5, Interleaved 2of5, UCC/EAN-128,
- Barcode 2D Symbol sets
- Datamatrix, QR Code, PDF417
- Ports / interfaces
- USB Serial, Bluetooth LE V4.2 & V5.0
- Operating time
- up to 16 h*
- Indicators, optical
- 4 LEDs (red, green, yellow, blue)
- Indicators, further
- Buzzer, Vibrations feedback
- Keyboard / keys
- 4 keys (ON / OFF, Trigger 2 x configurable)
- Processor
- Dual Core Prozessor
- RAM / storage options
- 256 KB RAM/1 MB Flash
- Supported OS
- USB: Win 10 (32 und 64 Bit) BLE: iOS from V13.3.1 & Android from V9.0
- Bluetooth interface
- Zhaga Book 25 services and protocol
- Bluetooth LE GATT profile
- FEIG Data Services and FEIG standard protocol
- Shock resistente
- 1.6 m drop on concrete
- Temperature range operation
- −20°C up to +55°C (−4°F up to +131°F)
- Temperature range storage
- −20 °C up to +60 °C (−4 °F up to +140 °F)
- Temperature range battery load
- −0 °C up to +45 °C (32 °F up to +113 °F)
- Relative air humidity
- 5% up to 95% (not condensing)
- Certificates
- RoHS, WEEE, CE, FCC, IC
