FEIG ID ECCO Smart

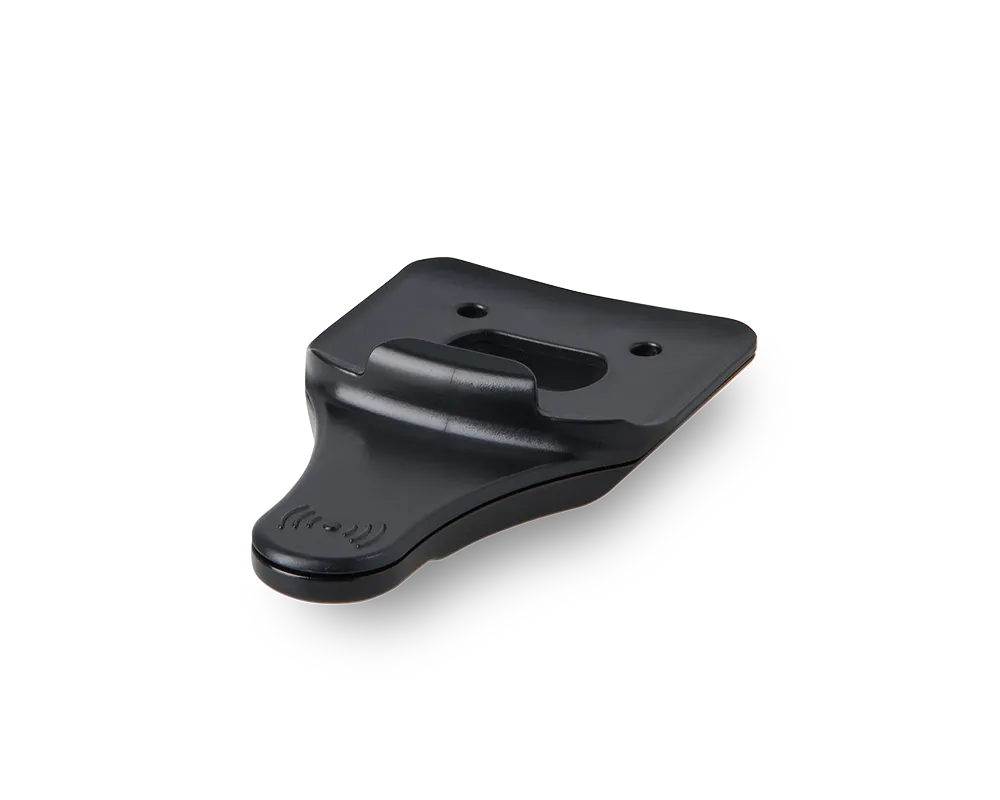

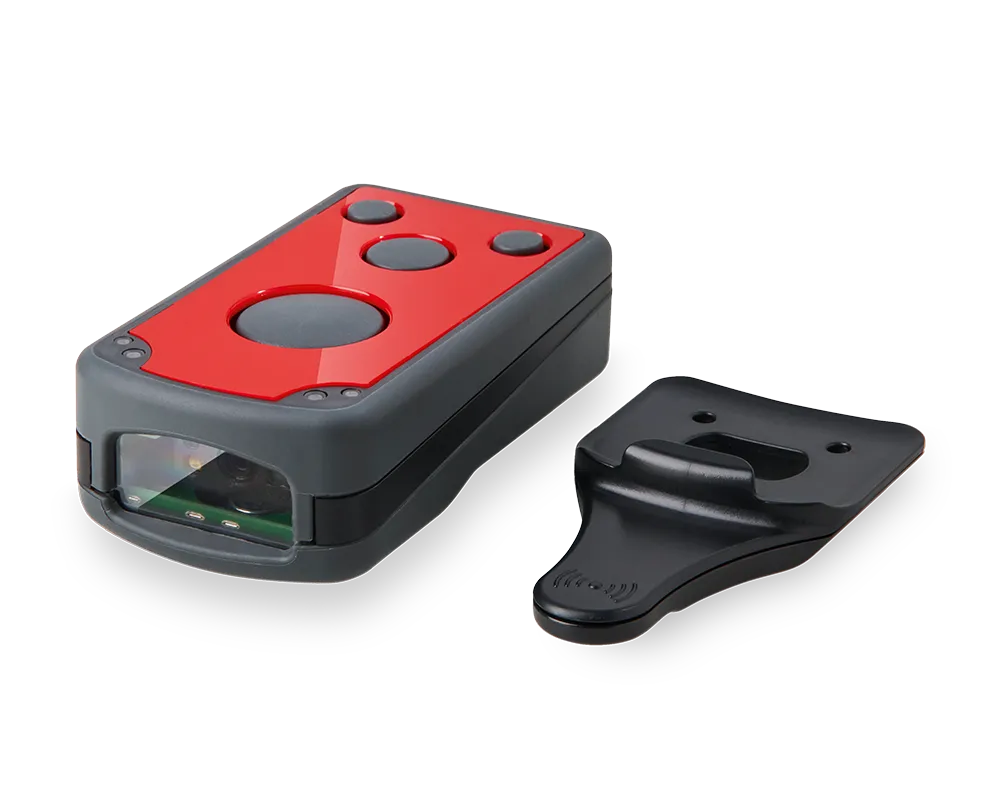

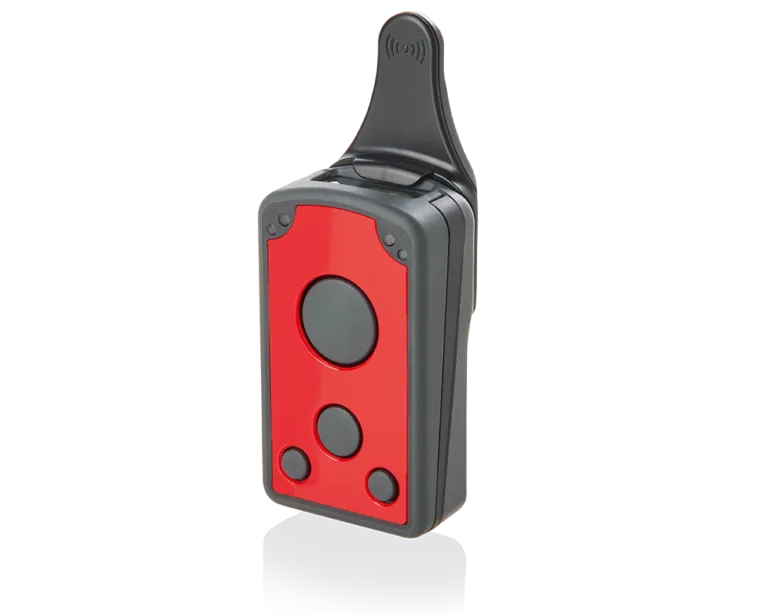

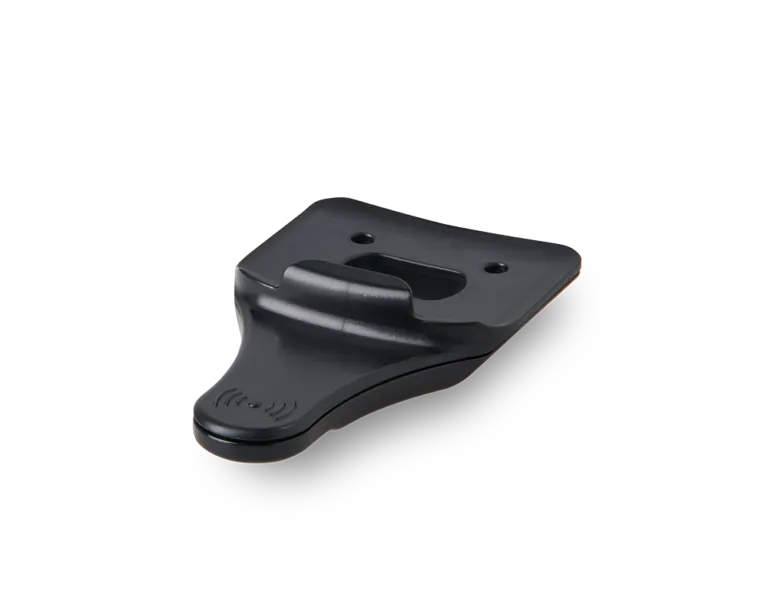

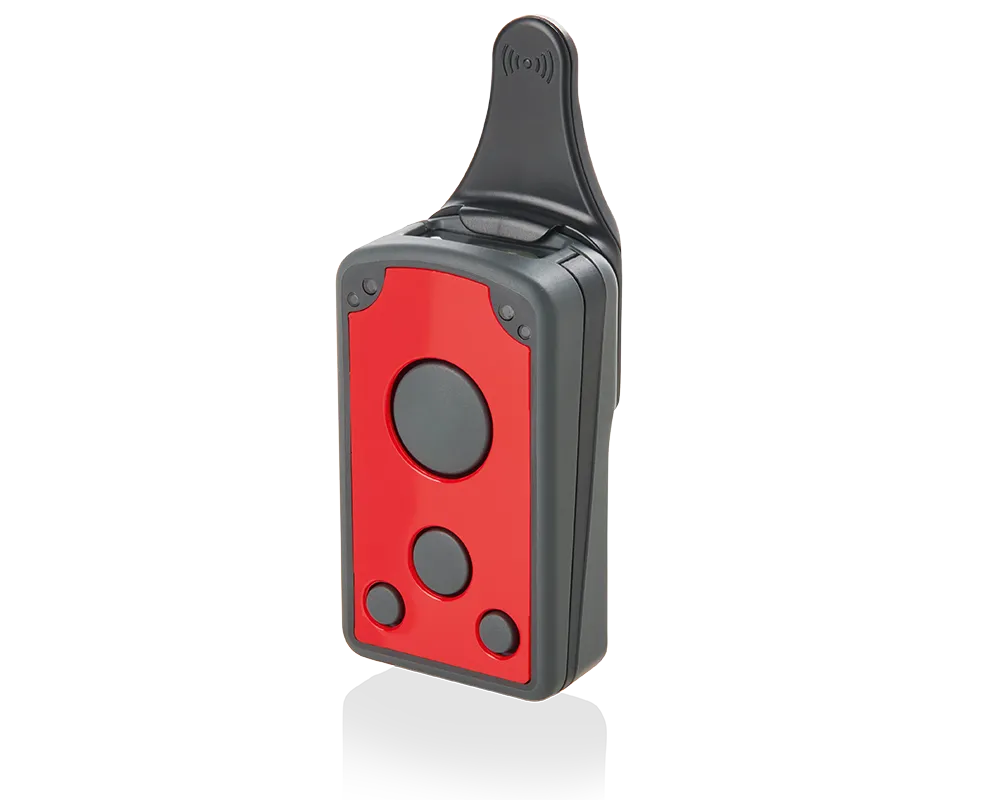

Hybrid barcode and RFID handheld with ID NFC MetalTag Antenna that can easily recognize, read and write miniature transponders.
- Battery1,300 mAh Lithium Polymer battery; 3.7 V
- SealingIP54
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 87 mm x 48 mm x 26 mm
- Weight
- approx. 98 g
- Housing
- double-walled, rubber coated
- Color
- black, red
- IP / sealing
- IP54
- RF operating frequency
- 13.56 MHz
- RF transmitting power
- 1.5 W HF Reader IC
- Supported transponders
- ISO 15693
- Barcode* 1D symbol sets
- EAN-8, EAN-13, ISBN, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2of5, Interleaved 2of5, UCC/EAN-128
- Barcode* 2D symbol sets
- Datamatrix, QR Code, PDF417
- Ports / interfaces
- Bluetooth LE V5.0, Gatt profile, BLE HID, USB-HID
- Battery / runtime
- 1,300 mAh Lithium Polymer battery; 3.7 V
- Operating time
- up to 16 h
- Indicators, optical
- 4 LEDs (red, green, yellow, blue)
- Indicators, further
- Buzzer, vibration feedback
- Keyboard / keys
- 4 keys (ON/OFF, configurable)
- Processor
- Dual Core Processor
- RAM / storage options
- 256 KB RAM / 1 MB Flash
- Supported OS
- USB: Win 10 (32 and 64 Bit) / BLE: iOS from V13.3.1 & Android from V9.0
- Bluetooth LE GATT profile
- FEIG Data Services and FEIG standard protocol
- Shock resistance
- 1.6 m drop on concrete
- Temperature range operation
- −20°C up to +55°C (−4 °F up to +131 °F)
- Temperature range storage
- −20°C up to +60°C (−4 °F up to +140 °F)
- Temperature range battery load
- 0 °C up to +45 °C (+32°F up to +113 °F)
- Relative air humidity
- 5 % up to 95 % (non condensing)
- Certificates
- RoHS, WEEE, CE, FCC, IC
