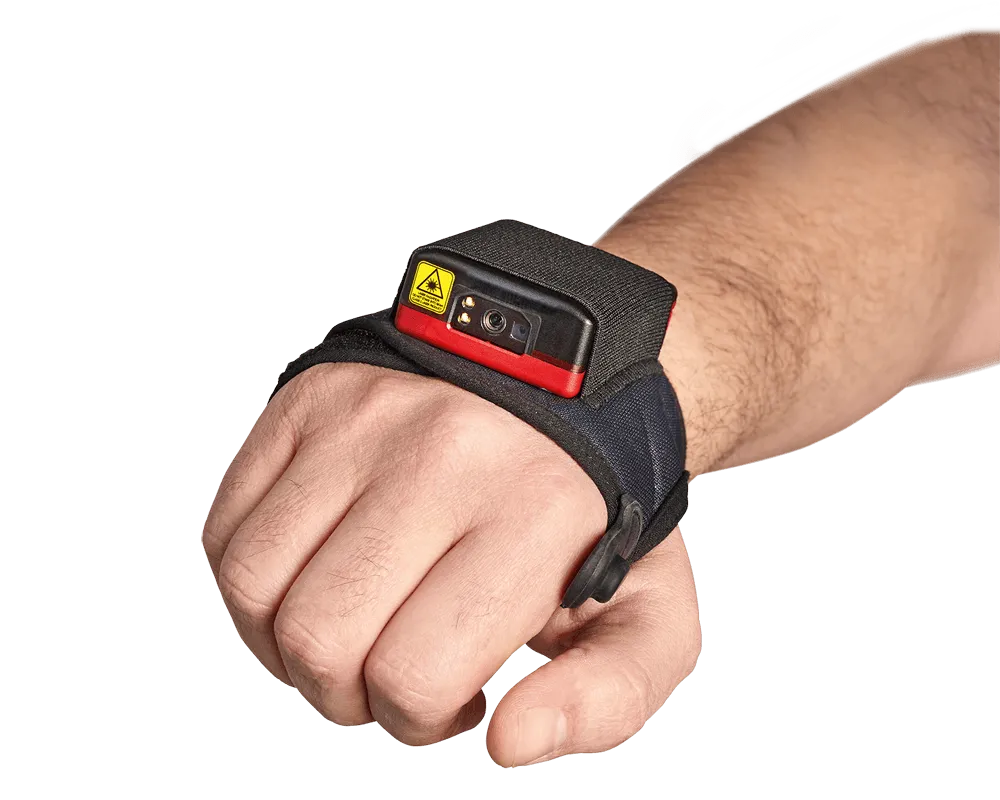

FEIG Hybrid RFID & Barcode Wearable HyWEAR compact
Discover the hybrid barcode & RFID wearable HyWEAR compact from FEIG for ✓ efficient working. ✓ Made in Germany.
- Battery1100 mAh Lithium-Polymer, 3.7 V
- SealingIP 54
- Drop1.5 m drop to concrete 500 rollovers from a height of 50 cm
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Housing
- robust ABS
- Dimensions
- 60 mm x 50 mm x 23 mm (2.36 inch x 1.97 inch x 0.91 inch)
- Weight
- approx. 70 g
- Color
- black (translucent) / red
- IP / sealing
- IP 54
- UHF RFID Operating frequency
- 865 MHz bis 868 MHz (version EU) / 902 MHz bis 928 MHz (version FCC)
- Supported transponders
- EPC Class1 Gen2
- Barcode 1D-Decoding
- EAN-8, EAN-13, UPC-A, UPC-E, Code 128, Code 39, Code 93, Interleaved 2of5, (others on request)
- 2D-Decoding
- DataMatrix, QR Code, PDF417
- Radio function
- Bluetooth 5.0, Protocol: HID, SPP
- Signal indicator
- red / green / yellow / blue Status LEDs Buzzer and vibration feedback
- Battery / runtime
- 1100 mAh Lithium-Polymer, 3.7 V
- Temperature range operation
- –20 °C up to 55 °C
- Temperature range storage
- –25 °C up to 85 °C
- Humidity
- 5 % up to 95 % (non-condensing storage)
- Drop specification
- 1.5 m drop to concrete
- Drop specification
- 500 rollovers from a height of 50 cm
