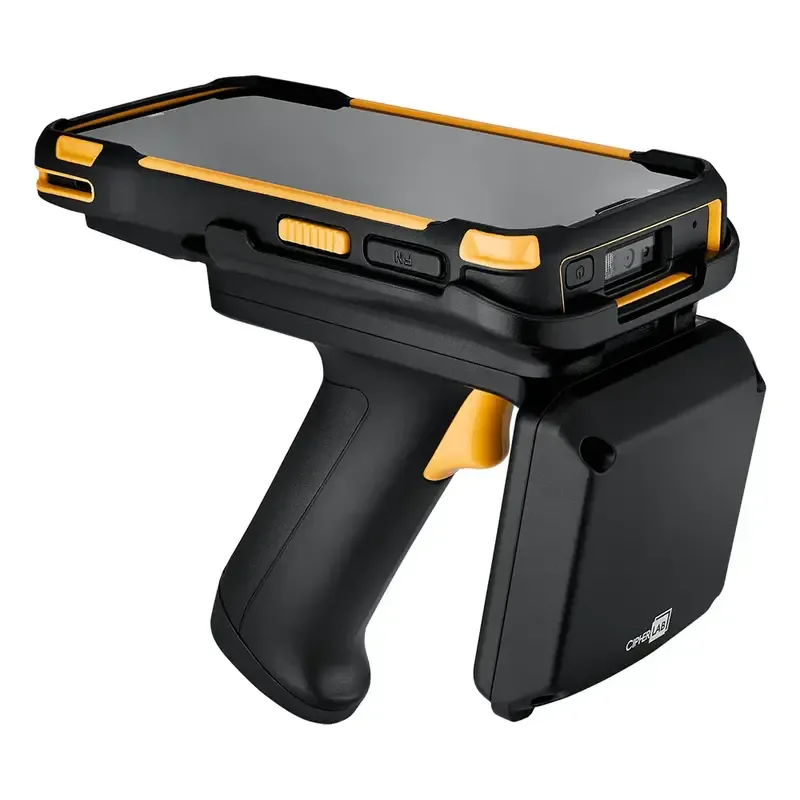

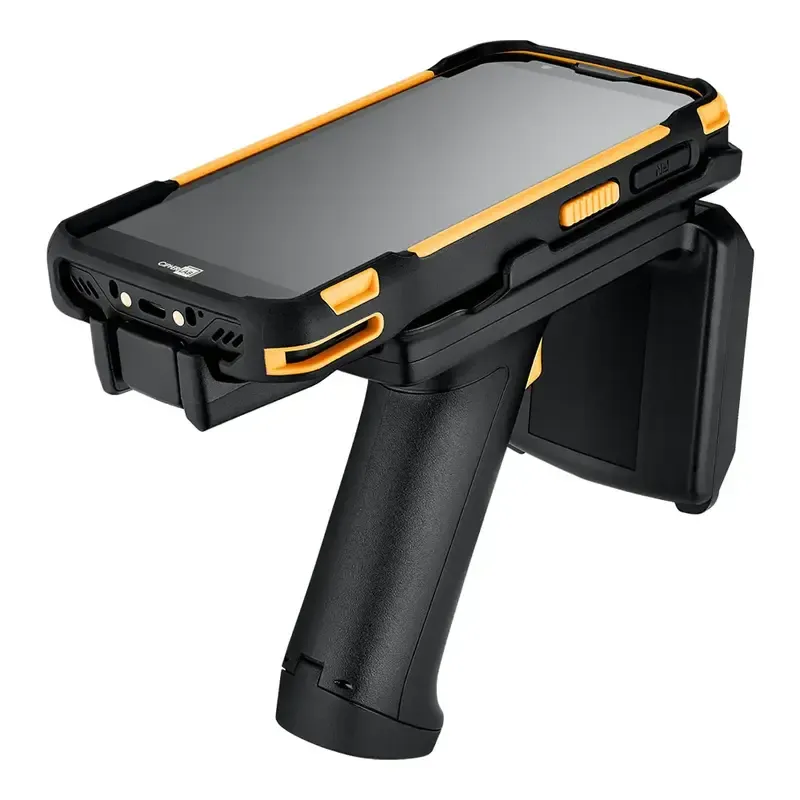

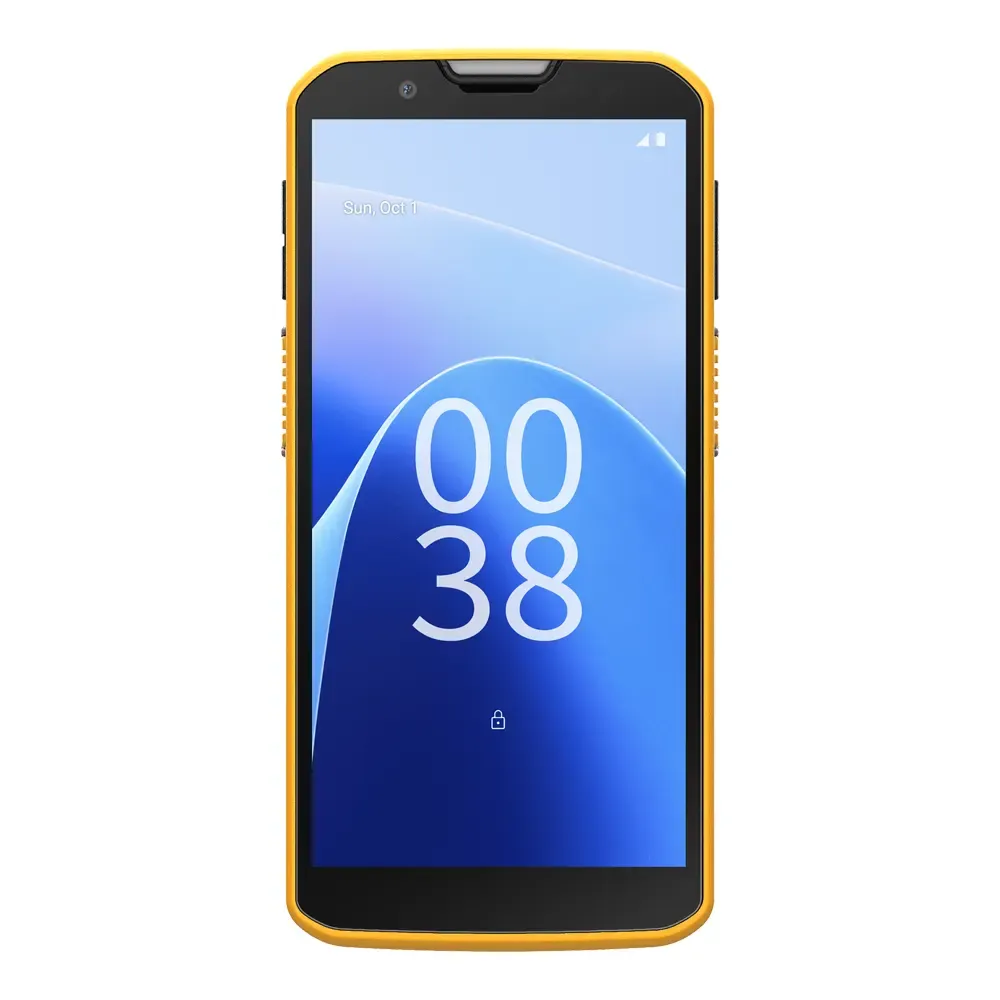

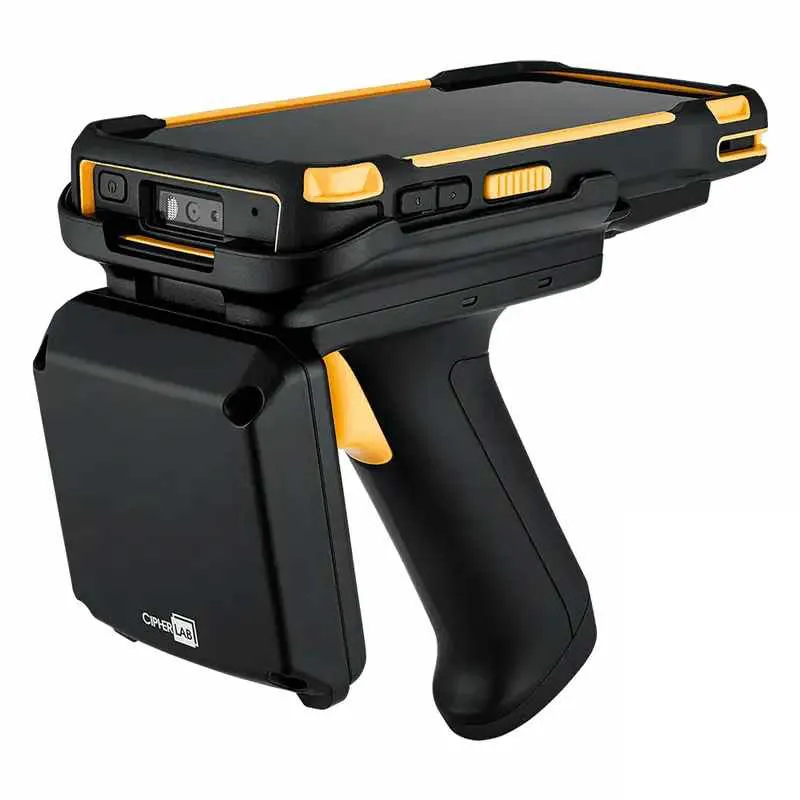

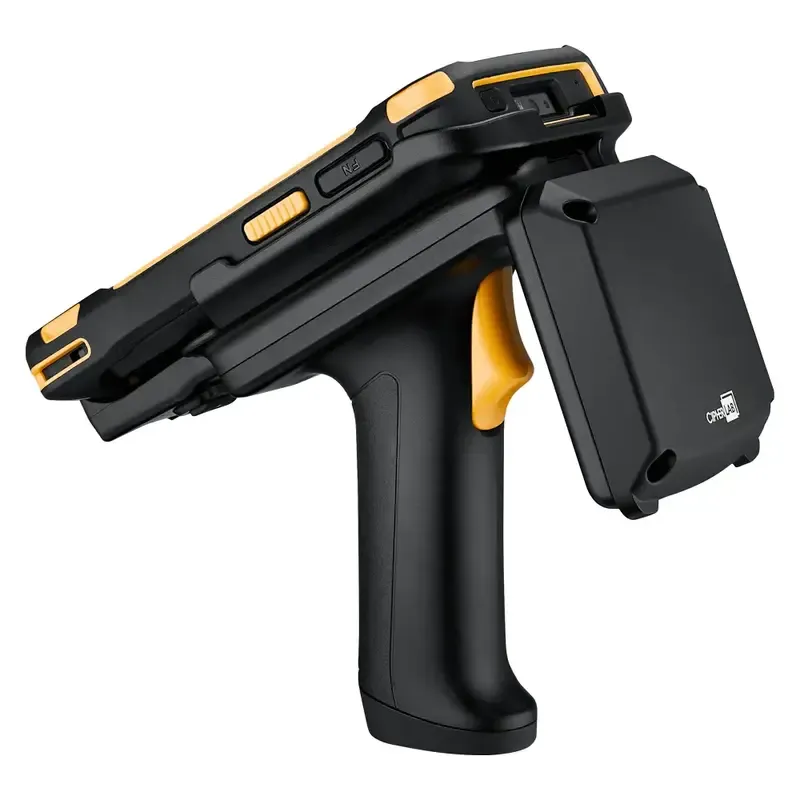

CipherLab RS38
RS38 5G touch mobile computer has a lightweight design, built-in mobile OCR scanner, Wi-Fi 6E support, and UHF RFID reader option, ideal for logistics use.
- Battery3.6v, 3000mAh Li-ion battery
- SealingIP54
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Processor
- Qualcomm QCM4490 Kryo Octa-core CPU 2.4 GHz
- RAM / storage options
- 8GB LPDDR5 SDRAM/128GB ROM
Display
- Touch panel
- Corning ® Gorilla ® Victus, Two-mode supports glove and wet finger. Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger. Anti-fingerprint coating.
- Keyboard / keys
- 1 programmable key, volume up and down keys, left and right trigger keys, power key
Data capture
- Cameras
- Rear 16 Megapixels PDAF with LED flash / Front: 8 Megapixels fixed focus
Power
- Battery / runtime
- 3.6v, 3000mAh Li-ion battery
- Charging / power
- Li-ion battery pack Typical voltage: 3.6V Typical capacity: 3000mAh
Connectivity
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, support fast roaming DBS(Dual Band Simultaneous Support), WiFi6E(802.11ax), MU-MIMO2x2
- Location / GPS
- GPS , GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS, a-GPS, supports XTRA
Rugged
- IP / sealing
- IP54
- Operating temperature
- -20°C to 50°C / -4°F to 122°F
- Storage temperature
- -30°C to 70°C / -22°F to 158°F -30°C to 70°C / -22°F to 158°F (without battery)
Size
- Weight
- Without RS38: 374.70 g With RS38: 680.75 g Without RK26: 353.4 g With RK26: 632.7 g Without RS36: 366 g With RS36: 655 g Without RS35: 366 g With RS35: 655 g 268g (with 4500mAh battery) 315g (with 6800mAh battery)
- Dimensions
- Without RS38: 186.2mm x 93.8mm x 153mm With RS38: 186.2mm x 93.8mm x 165.1mm
Software & service
- Warranty
- 1-year standard warranty
