CipherLab · RFID reader

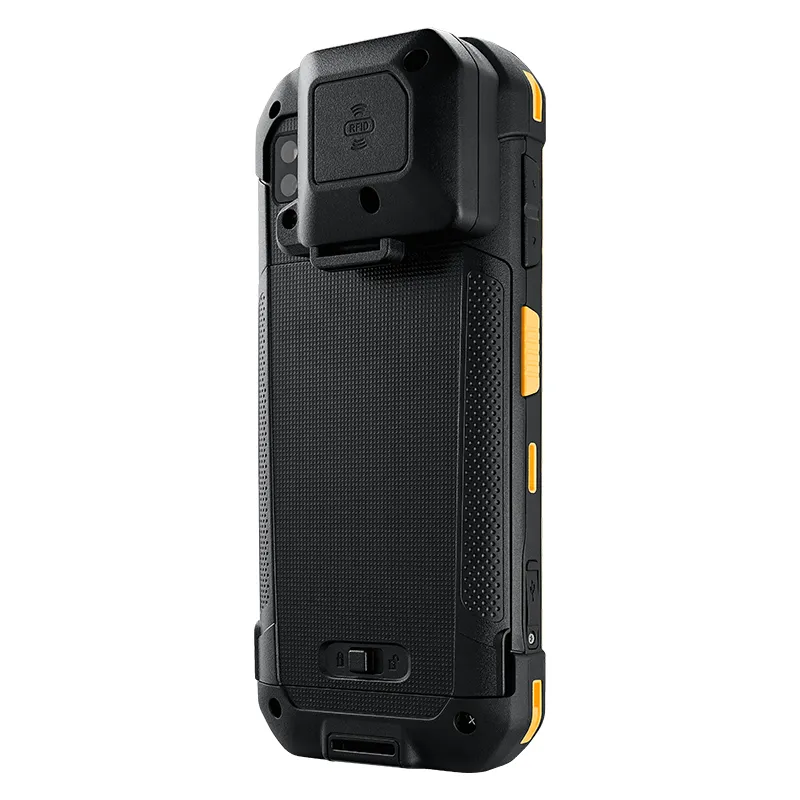

CipherLab RS36
Detailed information of NUHF RFID Reader, RS36 offered by CipherLab Co., Ltd..
- Operating systemAndroid 10 with GMS (Upgradeable to Android 11.0 with GMS) / Android 11 with GMS
- Display5.5" HD 720 (W) x 1440 (H), Transmissive IPS LCD, outdoor visibility, optically bonded to Touch Panel
- Scanning2D imager
- SealingIP54
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 10 with GMS (Upgradeable to Android 11.0 with GMS) / Android 11 with GMS
- Processor
- Qualcomm Octa-core 2GHz Octa-core 1.8GHz Octa- core 2.6GHz
- RAM / storage options
- 64GB UFS Flash / 4GB LPDDR4X RAM 3GB x 32GB (Standard) / 4GB x 64GB (Optional) 4GB RAM/64GB ROM
Display
- Display size
- 5.5" HD 720 (W) x 1440 (H), Transmissive IPS LCD, outdoor visibility, optically bonded to Touch Panel
- Touch panel
- Corning ® Gorilla ® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger
- Keyboard / keys
- 1 programmable key, volume up and down keys, left and right trigger keys, power key
Data capture
- Scan engines / capture options
- 2D imager
- Cameras
- Rear :16 megapixels PDAF with LED flash / Front:5 megapixels 2 Rear autofocus 13 megapixels with LED flash Rear 13 Megapixels AF with LED flash / Front: 5 Megapixels fixed focus
Power
- Charging / power
- Li-ion battery pack Typical voltage: 3.85V Typical capacity: 4000mAh Li-ion battery pack Typical voltage: 3.85V Standard battery: 4000mAh Extended battery: 6000mAh
Connectivity
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w, IEEE 802.11ax (WI-FI 6 model only) IEEE 802.11a/b/g/n/ac/ax/d/h/i/k/r/v, support fast roaming DBS(Dual Band Simultaneous Support), WiFi6(802.11ax)
- Location / GPS
- GPS/GLONASS/Gallileo/BeiDou (L1+L5)/a-GPS
Rugged
- IP / sealing
- IP54
- Operating temperature
- -20°C to 50°C / -4°F to 122°F
- Storage temperature
- -30°C to 70°C / -22°F to 158°F -30°C to 70°C / -22°F to 158°F (without battery) -20°C to 60°C / -4°F to 140°F (without battery)
Size
- Weight
- With RS36: 337 g With RS36: 338 g 288g (with 4000mAh battery) / 319g (with 6000mAh battery) 288 g (with battery) 280g (with battery)
- Dimensions
- With RS36: 165 mm x 78.6 mm x 37.2mm
Software & service
- Warranty
- 1 year 1 year standard warranty 1-year standard warranty
