Chainway · RFID reader

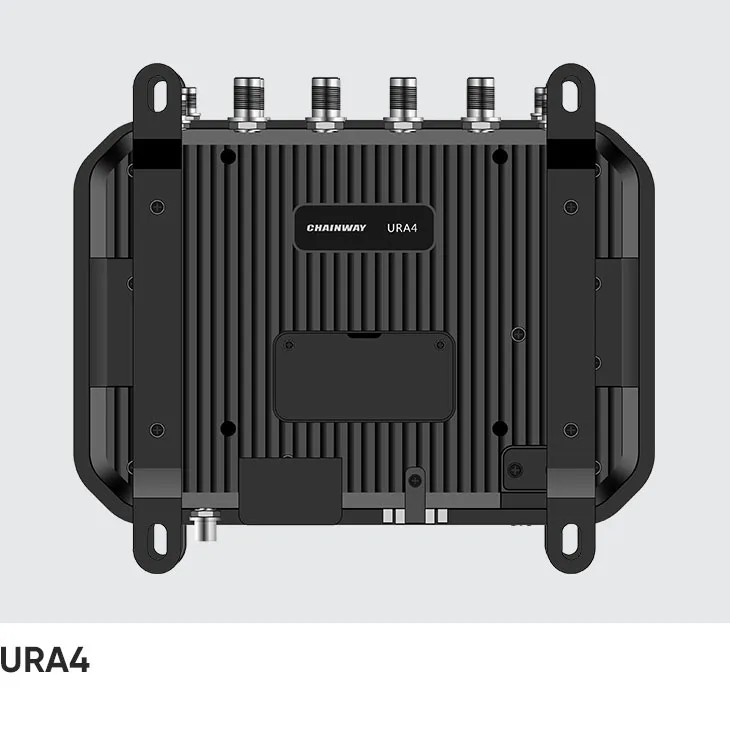

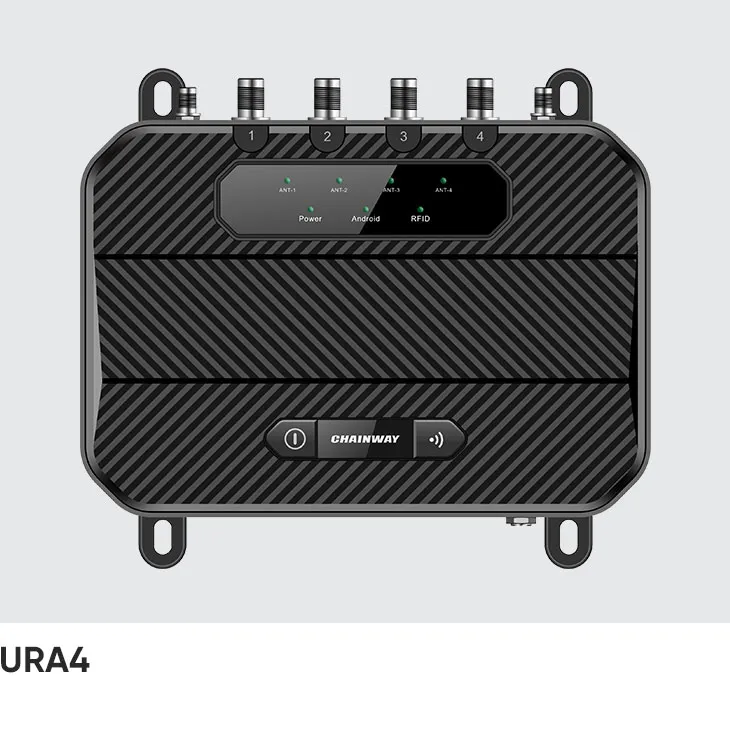

Chainway URA4 Fixed RFID Reader
A 4-channel fixed RFID reader running Android 13, the URA4 features a self-developed UHF module based on Impinj E Series chips with Gen2X support and a 1300+tags/s read rate. It supports RS-232, RJ45, HDMI, multiple antenna types, and flexible deployment for various RFID applications.
- Operating systemAndroid 13 Android 9.0
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 13 Android 9.0
- Processor
- Octa-core 2.0 GHz Qualcomm 1.8 GHz Octa-core
- RAM / storage options
- 3GB + 32GB 3 GB + 32 GB 2 GB + 16 GB (optional)
Power
- Charging / power
- DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W) DC 10V – 24V 2W Optional (33dBm, support +10~+33dBm
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dualband, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,1 16,120,124,128,132,136,140,149,153,157,161,165), Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAPMSCHAPv2, PEAP-LTS,PEAP-GTC,etc. Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149, 153,157,161,165), Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dualband, IPV4,IPV6;
- Bluetooth
- 5.1 Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Rugged
- Operating temperature
- -25 °C to 55 °C -25 °C to 65 °C
- Storage temperature
- -40 °C to 85 °C
- Humidity
- 5% - 95%
Size
- Weight
- 1000g / 35.27 oz. (without antenna)
- Dimensions
- 214 (L) x 148 (W) x 30 (H) mm
