Chainway · RFID reader

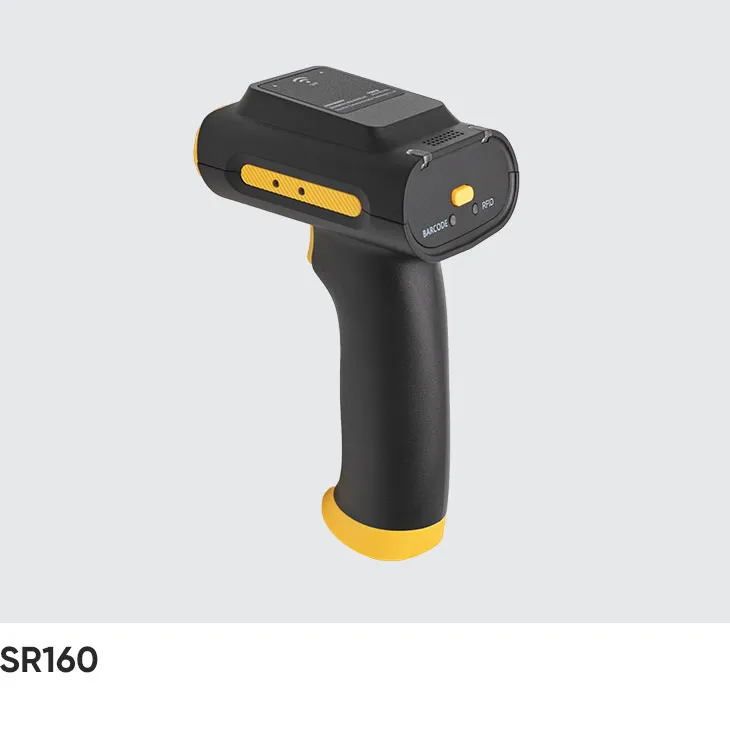

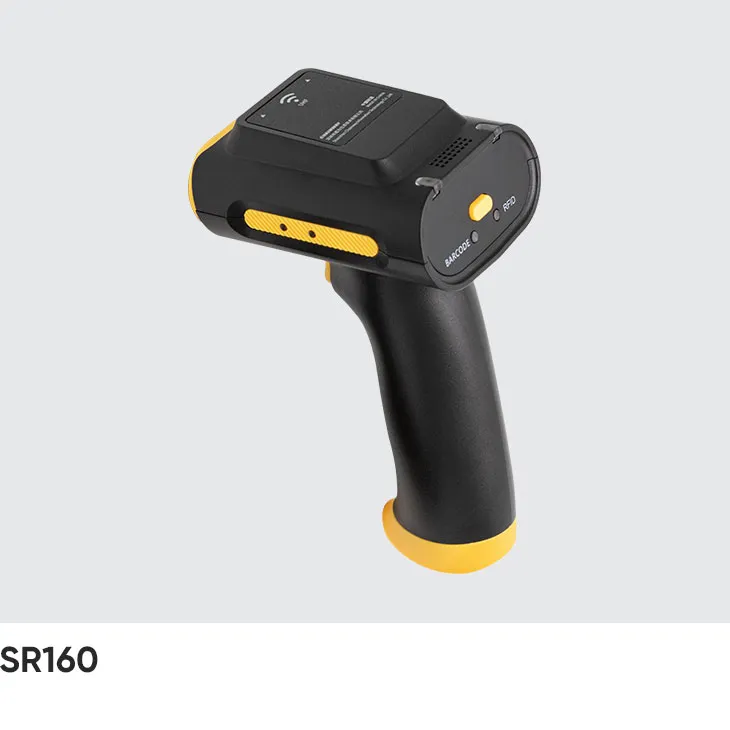

Chainway SR160 Bluetooth RFID Scanner
A lightweight Bluetooth RFID scanner combining UHF RFID and 1D/2D barcode scanning, the SR160 features a self-developed UHF module based on Impinj E Series chips with Gen2X support. It offers a 7-100cm adjustable read range, 3 scan modes, and USB, RS-232, and Bluetooth connectivity.
- Scanning2D Scanner
- Battery2600mAh
- Drop1.5m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Display
- Keyboard / keys
- power key / scan key
Data capture
- Scan engines / capture options
- 2D Scanner
Power
- Battery / runtime
- 2600mAh
Connectivity
- Bluetooth
- Bluetooth Low Energy (BLE) 5.0
Rugged
- Drop specification
- 1.5m
- Operating temperature
- -4°F to 122°F / -20°C to +50°C
- Storage temperature
- -40°F to 158°F / -40°C to +70°C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Dimensions
- 154.0 x 87.8 x 65.0mm / 6.46 x 3.43 x 2.56in.
Send a request
Get a quote for the SR160 Bluetooth RFID Scanner
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
