Chainway · RFID reader

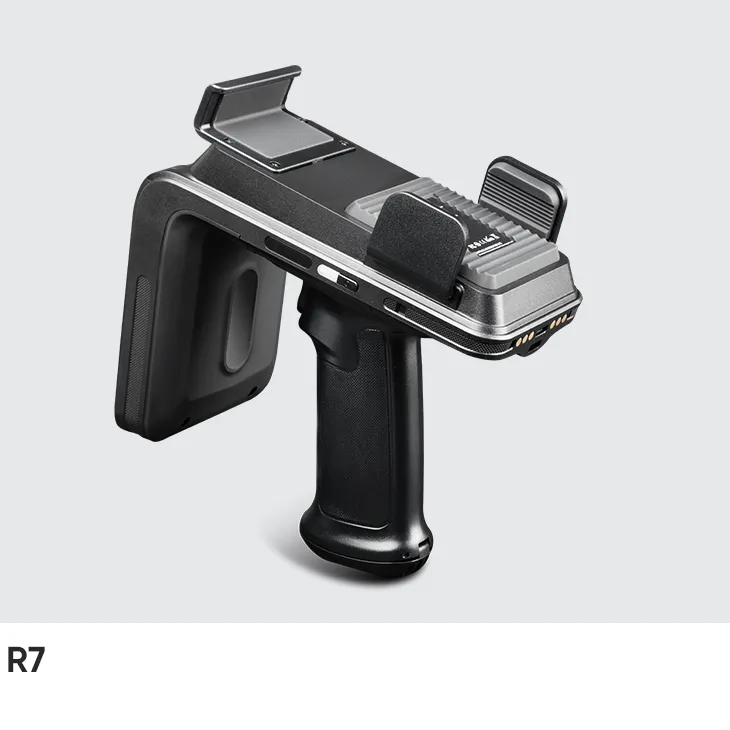

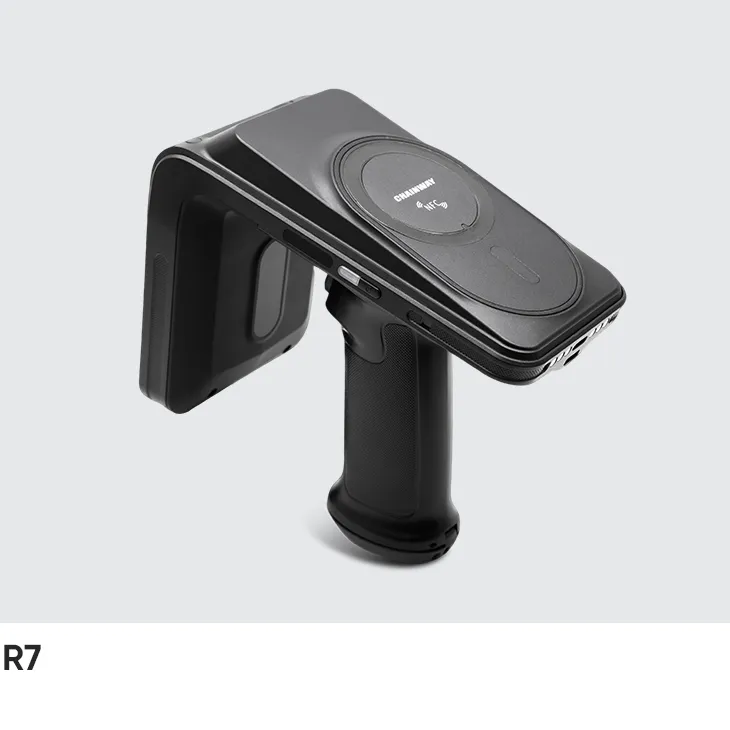

Chainway R7 UHF RFID Sled Reader
A high-performance UHF RFID sled reader powered by an Impinj E Series chipset with Gen2X support, the R7 delivers a read range of over 30m and a read rate of up to 1300+tags/s. Compatible with Android and iOS, it supports NFC tap-to-pair, Bluetooth 5.0, USB Type-C, optional Wi-Fi 6, and a 6700mAh removable battery.
- ScanningSE4107; NLS-N1; NLS-EM3596
- Battery6700 mAh removable battery Built-in NTC temperature sensor and battery meter
- SealingIP54 per IEC sealing specifications
- DropMultiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Data capture
- Scan engines / capture options
- SE4107; NLS-N1; NLS-EM3596
Power
- Battery / runtime
- 6700 mAh removable battery Built-in NTC temperature sensor and battery meter
Connectivity
- Wi-Fi / WLAN
- Support IEEE 802.11 a/b/g/n/ac/ax, 2.4G/5G dual-band * This function is optional
- Bluetooth
- Bluetooth 5.0
- Ports / interfaces
- USB 2.0 Type-C Bottom 6-pin pogo-pin charging dock interface
Rugged
- IP / sealing
- IP54 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- –20°C to 50°C (–4°F to 122°F)
- Storage temperature
- –40°C to 70°C (–40°F to 158°F) 32°F to 113°F / 0°C to 45°C Charging Temperature
- Humidity
- 5%–95% RH, non-condensing
Size
- Weight
- Basic version: 578 g (20.39 oz) Magnetic version: 590 g (20.81 oz) Clip-on version: 642 g (22.65 oz)
- Dimensions
- Clip-on version: 157.01 mm × 85.22 mm × 162.41 mm (6.18 × 3.35 × 6.39 in) Basic/Magnetic version: 157.01 mm × 85.22 mm × 146.42 mm (6.18 × 3.35 × 5.76 in)
