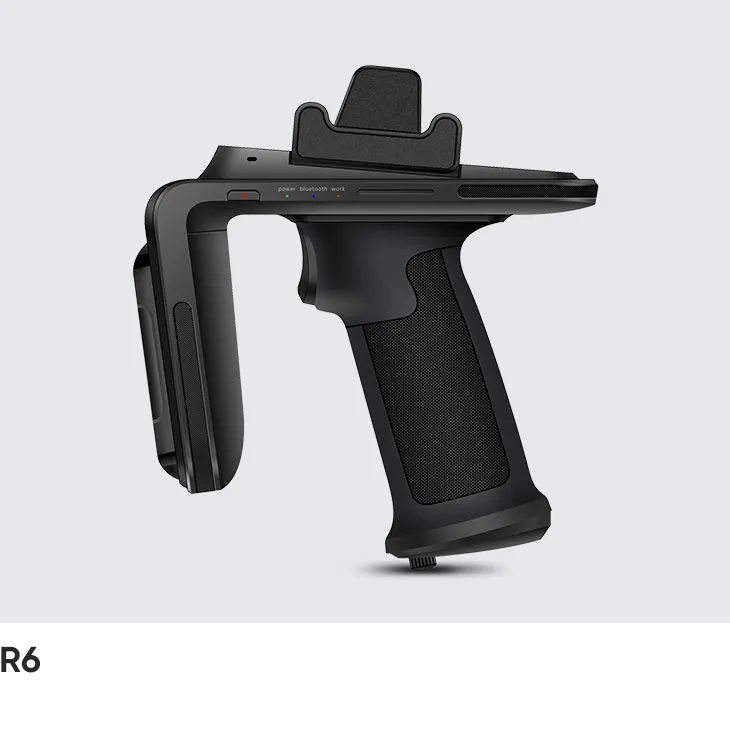

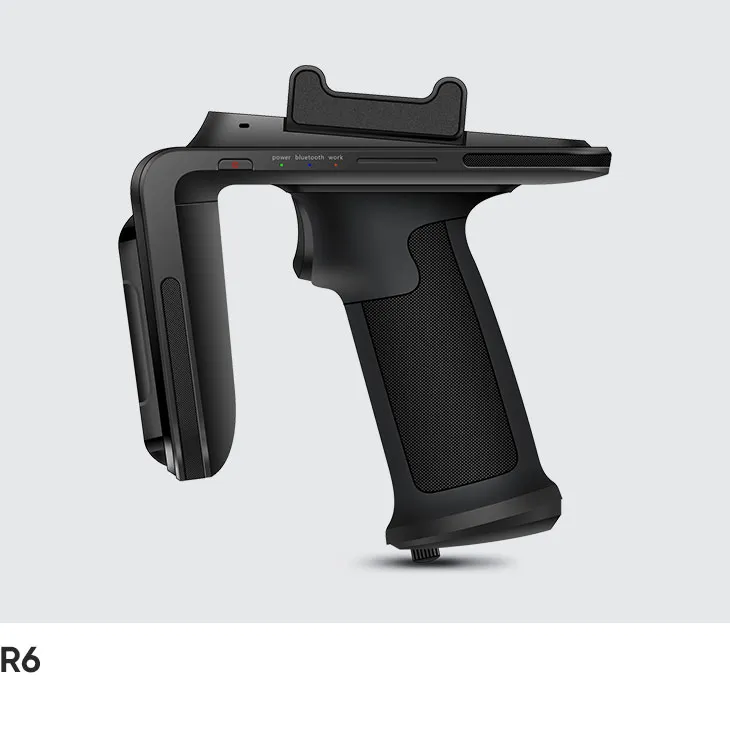

Chainway R6 UHF RFID Sled Reader
Chainway RFID Sled Reader R6 features powerful UHF reading and writing, and barcode scanning with high sensitivity. You can attach almost any mobile phone to R6 UHF Sled Reader for a complete one-piece solution. The device can be widely deployed in clothing inventory, warehouse management, vehicle management, financial management and so forth.
- ScanningSE2707
- SealingIP54 per IEC sealing specifications
- DropMultiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Data capture
- Scan engines / capture options
- SE2707
Power
- Charging / power
- Battery specification: 5200 mAh removable battery Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 2.5 hours (UHF reading: 400 tags) Charging time:4-5 hours (with standard adaptor and USB cable) FCC: 902 MHz – 928 MHz; 36 dBm (EIRP) Battery specification: 5200 mAh removable battery
Connectivity
- Bluetooth
- Bluetooth Low Energy (BLE) 5.0
- Ports / interfaces
- USB 3.0 Type-C
Rugged
- IP / sealing
- IP54 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4℉~+122℉ / -20℃~+50℃ Sealing IP54 per IEC sealing specifications
- Storage temperature
- -40℉~+158℉ / -40℃~+70℃
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- RFID configuration: 438 g (including battery) RFID + Engine configuration: 446 g (including battery)
- Dimensions
- 151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in.
