Chainway · RFID reader

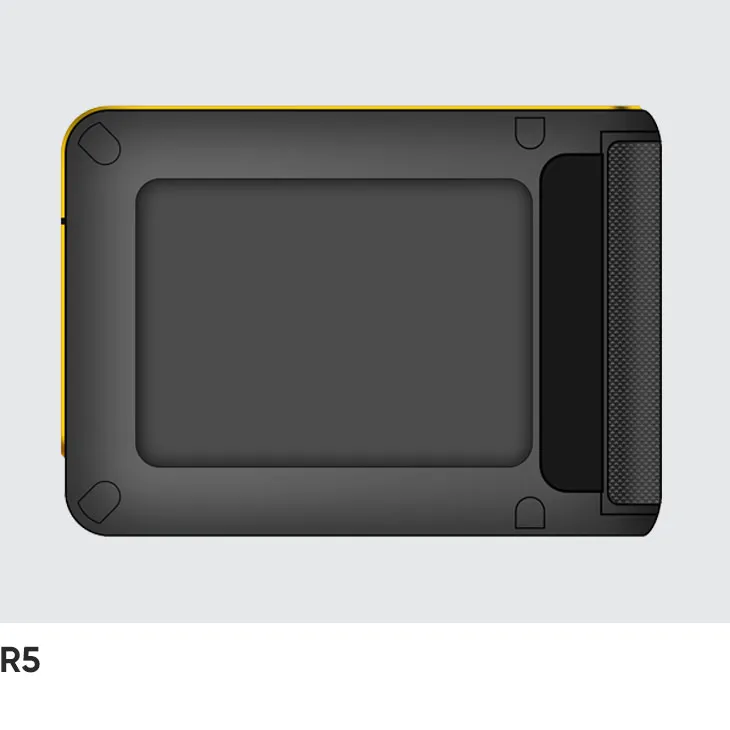

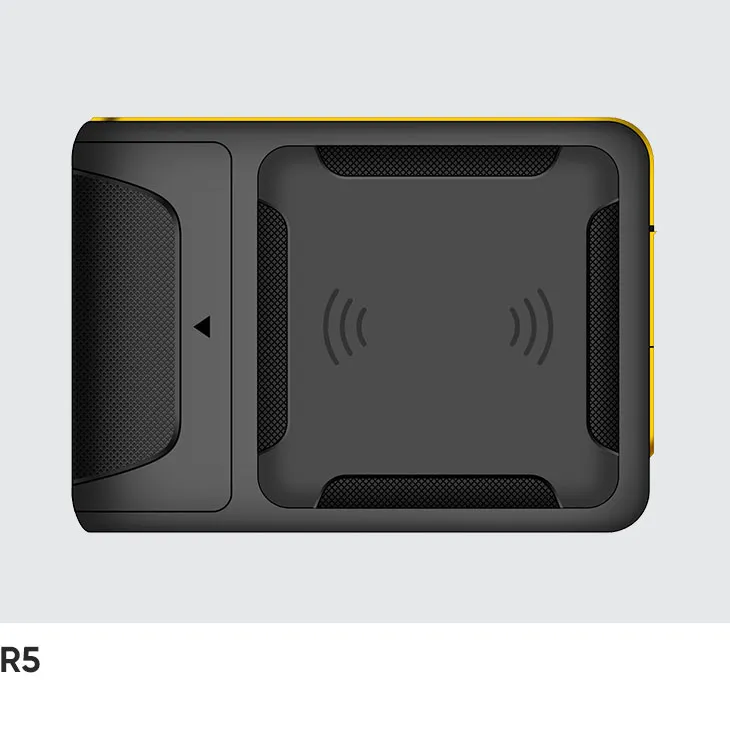

Chainway R5 Wearable RFID Reader
Chainway R5 is a newly-developed wearable UHF reader. Equipped with embedded Impinj E710 RFID chip, it enables read distance of over 14m. It performs data transmission via Type C USB, and enables user information interaction via Bluetooth coordinated with APP or SDK. And it also can be paired with Android/IOS device to expand RFID capability.
- Battery2000 mAh (removable)
- SealingIP65
- Drop1.5 m dropping on concrete
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Display
- Keyboard / keys
- ON/OFF, SCAN
Power
- Battery / runtime
- 2000 mAh (removable)
- Charging / power
- 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) 1W (30dBm, support +5~+30dBm adjustable)
Connectivity
- Bluetooth
- Bluetooth Low Energy (BLE) 5.0
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.5 m dropping on concrete
- Operating temperature
- -20 °C to +50 °C
- Storage temperature
- -40 °C to +70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 200 g / 7.05 oz.
- Dimensions
- 108 mm × 78 mm × 18 mm Weight 200g / 7.05oz.
Send a request
Get a quote for the R5 Wearable RFID Reader
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
