Chainway · RFID reader

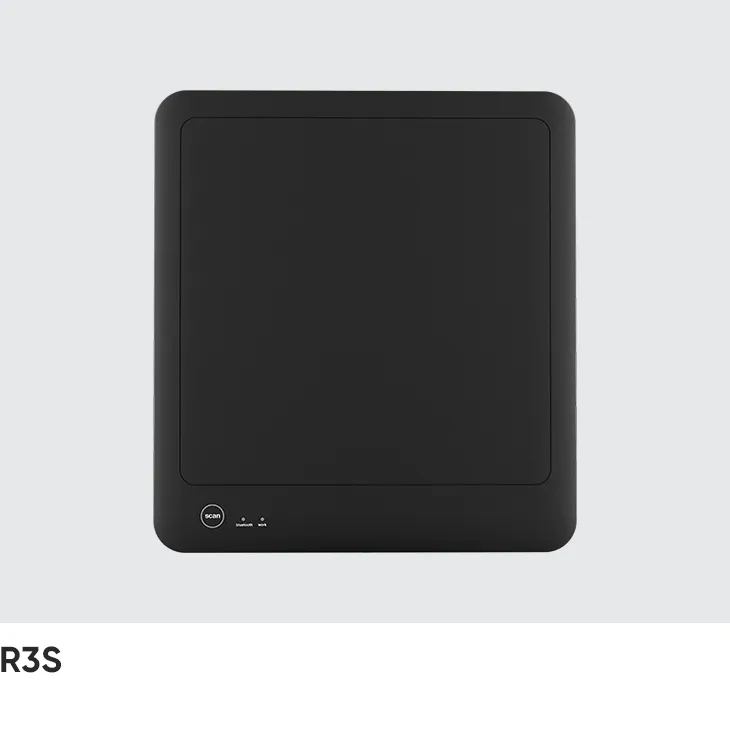

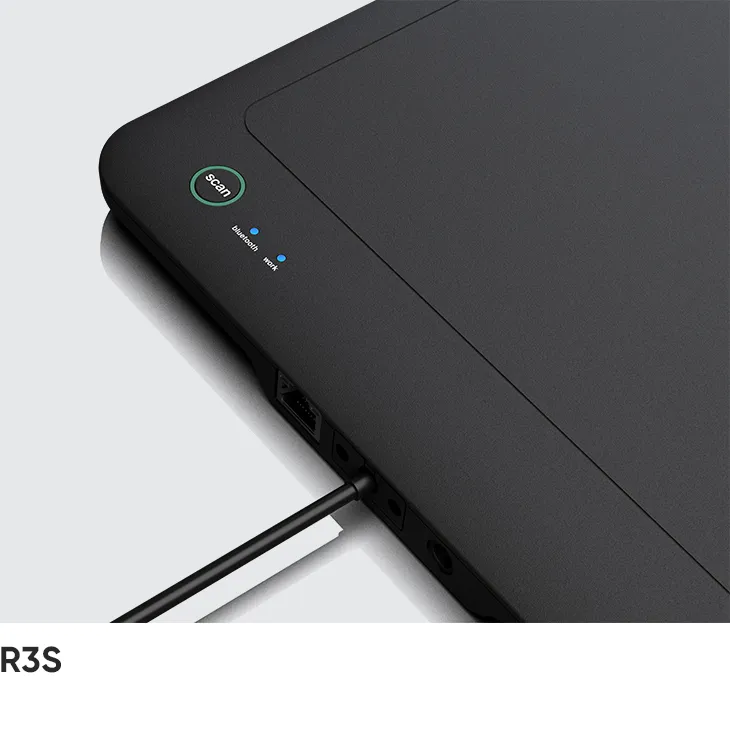

Chainway R3S Desktop RFID Reader
A compact all-in-one desktop RFID reader featuring an integrated UHF module and antenna. Powered by the Impinj E Series chipset with Gen2X support, the R3S reads 70+ tags per scan at a range of over 100cm. It supports Type-C, Ethernet, Bluetooth 5.0, Windows, Android, and iOS.
- SealingIngress Protection (IP) 54 rating
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Power
- Charging / power
- USB power supply DC power supply (input voltage DC +8V to +28V) Power over Ethernet (PoE+, IEEE 802.3at, 25.5W)
Connectivity
- Bluetooth
- BLE 5.0
Rugged
- IP / sealing
- Ingress Protection (IP) 54 rating
- Operating temperature
- -4°F to 122°F (-20°C to 50°C)
- Storage temperature
- -40°F to 158°F (-40°C to 70°C)
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- Approximately 650g / 22.93oz.
- Dimensions
- 255mm × 235mm × 18mm / 10.04in × 9.25in × 0.71in
Send a request
Get a quote for the R3S Desktop RFID Reader
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
