Chainway · RFID reader

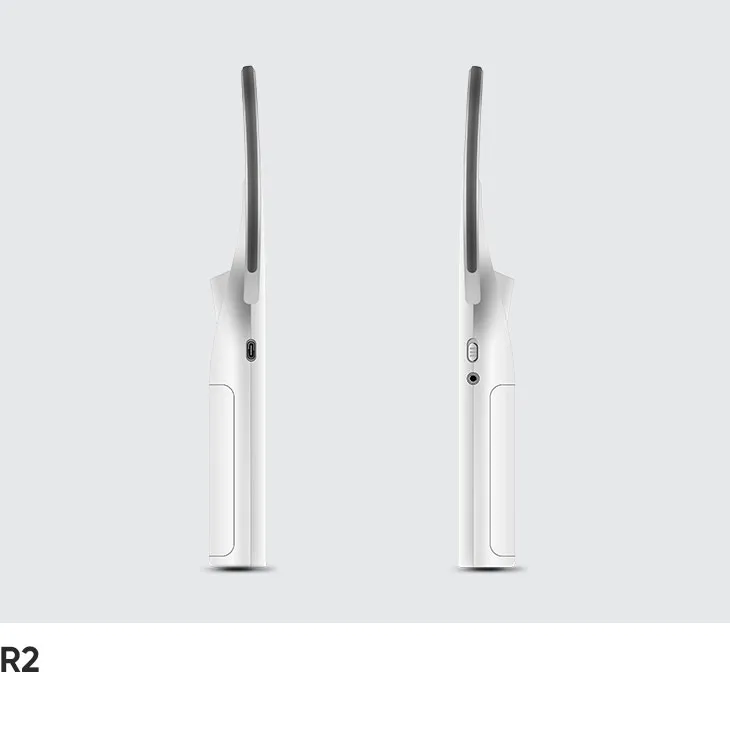

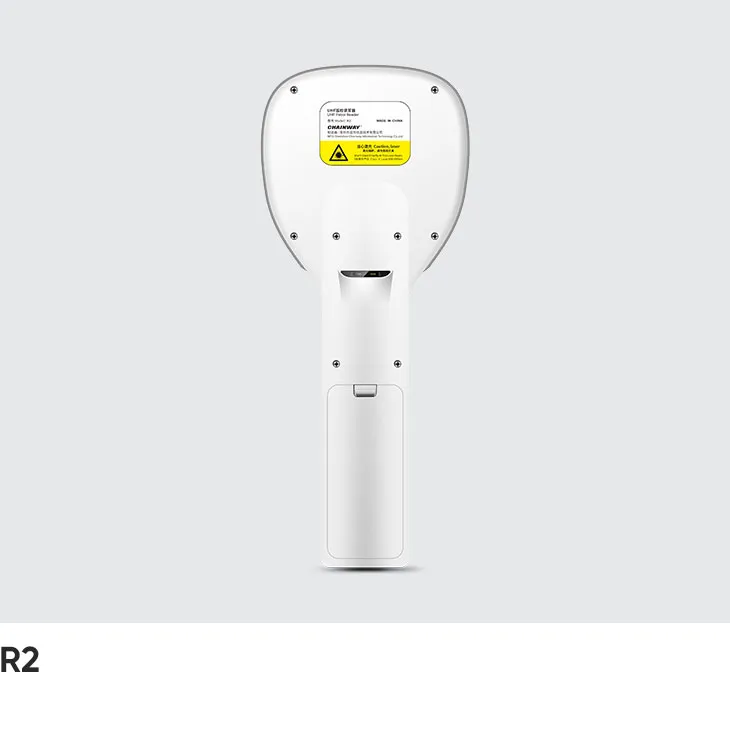

Chainway R2 Bluetooth RFID Reader
Chainway RFID Swing Reader R2 is a newly-developed handheld data collection device with stylish design and incredible performance. It delivers superior UHF reading and writing, barcode scanning, transmits data to the data center via Bluetooth with ease. It can complete tasks in inventory management, asset management, and inspection etc.
- Display1.77 inch, 128 x 160
- DropMultiple 1.5m / 4.9ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- RAM / storage options
- 50000 tags
Display
- Display size
- 1.77 inch, 128 x 160
Power
- Charging / power
- Battery specification: 5200 mAh Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable) Battery specification: 5200mAh removable battery
Connectivity
- Bluetooth
- Bluetooth Low Energy (BLE) 5.0
- Ports / interfaces
- USB Type-C
Rugged
- Drop specification
- Multiple 1.5m / 4.9ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -20℃~+50℃
- Storage temperature
- -40℃~+70℃
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- 334 g / 11.78oz. (with battery)
- Dimensions
- 282 x 117.5 x 32mm / 11.10 x 4.63 x 1.26in.
