Chainway · RFID reader

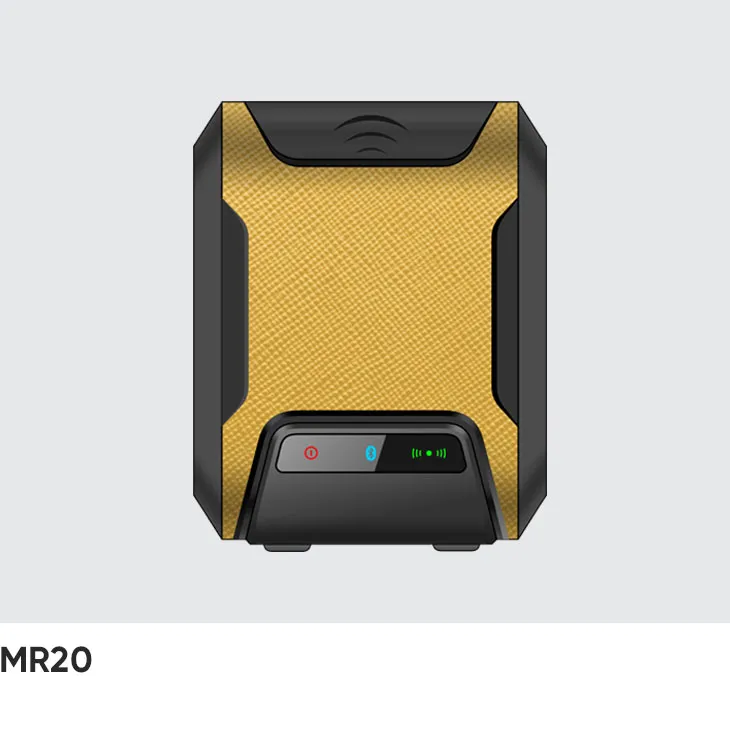

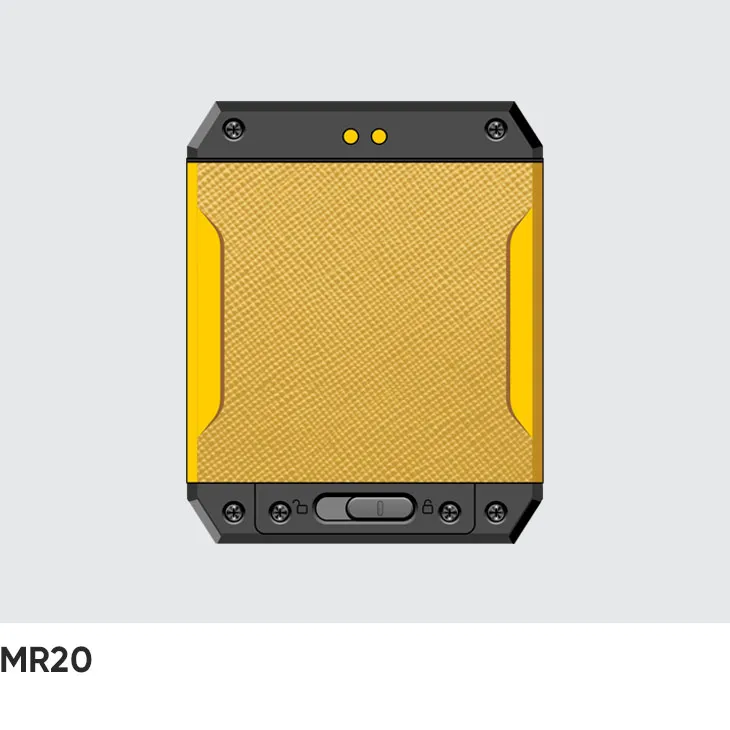

Chainway MR20 Wearable RFID Reader
A compact 64g wearable Bluetooth UHF RFID reader, the MR20 features a self-developed UHF module based on Impinj E Series chips with Gen2X support. Compatible with Android and iOS devices, it supports hand wraps, wristbands, and lanyards for flexible hands-free data capture, with a 1200mAh removable battery and IP65 protection.
- SealingIP65
- Drop1.5 m dropping on concrete
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Display
- Keyboard / keys
- ON/OFF, SCAN
Power
- Charging / power
- 1200 mAh ( removable ) 0.5W (27dBm, support +19-27dBm adjustable)
Connectivity
- Bluetooth
- Bluetooth Low Energy (BLE) 5.0
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.5 m dropping on concrete
- Operating temperature
- -20 °C to +50 °C
- Storage temperature
- -40 °C to +70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 64 g / 2.26 oz. ( with glove: 90 g / 3.17 oz. )
- Dimensions
- 50 x 62 x 19mm / 1.97 x 2.44 x 0.75 in.
Send a request
Get a quote for the MR20 Wearable RFID Reader
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
