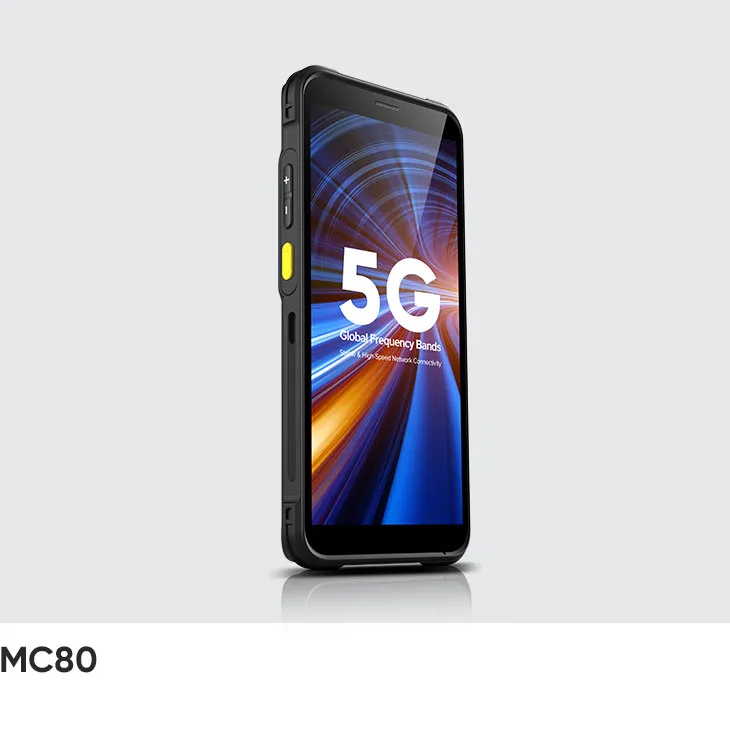

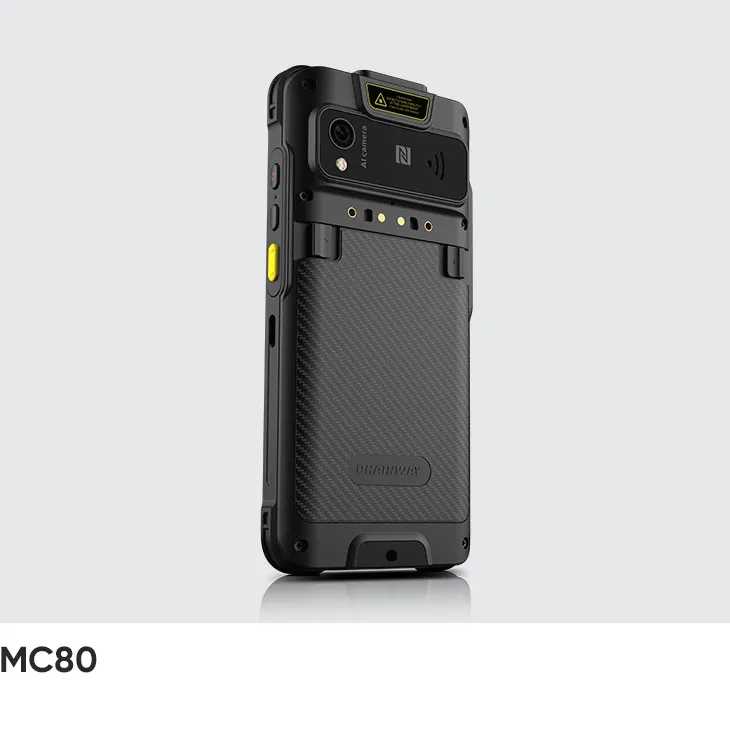

Chainway MC80 5G UHF RFID Reader
Powered by the Qualcomm Dragonwing Q-6690 processor, the MC80 is one of the first UHF RFID readers on this platform to ship with Android 16. It features chip-level UHF RFID integration, 5G, Wi-Fi 7, Bluetooth 6.0, long-range barcode scanning, NFC, dual cameras with a 50MP rear camera, and versatile data capture capabilities.
- Operating systemAndroid 16 (upgradeable to Android 20)
- Display6", 720 × 1440 (HD+); optional 1080 × 2160 (FHD+)
- SealingOptional IP65/IP67, IEC compliant
- DropMIL-STD-810H Drop Test: 1.8m without a protective case and 2.0m with a rugged rubber boot
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 16 (upgradeable to Android 20)
- Processor
- Octa-core, 2.0GHz, with an optional configuration of up to 2.9GHz
- RAM / storage options
- UFS, with configurations ranging from 4GB + 64GB to 16GB + 256GB
Display
- Display size
- 6", 720 × 1440 (HD+); optional 1080 × 2160 (FHD+)
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 Power key, 2 scan keys, 1 volume (+/-) keys, 1 multifunctional key
Data capture
- RFID
- Built-in UHF, integrated into the chipset platform
- Cameras
- 8MP 50MP, supports PDAF and HDR, with flash
Power
- Charging / power
- 5000mAh / 8000mAh (optional) Smart battery supporting QC4.0 and PD3.0 fast charging, with hot-swap capability
Connectivity
- Wi-Fi / WLAN
- Supports 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7); 2 × 2 MIMO antennas; Fast roaming supported 165mm*76.8mm*15.5mm/6.50*3.02*0.61 in
- Bluetooth
- Bluetooth 6.0, BLE, headset support
- Location / GPS
- Integrated GPS, BeiDou, GLONASS, Galileo, and QZSS A-GPS: Supports XTRA UWB (optional): Enables reliable communication and high-precision positioning in indoor and other complex environments
- Ports / interfaces
- USB 3.0 Type-C, supports OTG and water drop detection Bottom connector: 6-pin pogo contacts Rear connector: 2-pin pogo contacts
Rugged
- IP / sealing
- Optional IP65/IP67, IEC compliant
- Drop specification
- MIL-STD-810H Drop Test: 1.8m without a protective case and 2.0m with a rugged rubber boot
- Tumble specification
- 2000 × 0.5m / 1.64ft. falls, IEC compliant
- Operating temperature
- -4℉ to 122℉ / -20℃ to +50℃
- Storage temperature
- -40℉ to 158℉ / -40℃ to +70℃
- Humidity
- 5%RH - 95%RH non-condensing
Size
- Weight
- 283g / 9.98 oz. (device with battery)
- Dimensions
- 165mm × 76.8mm × 15.5mm / 6.50 × 3.02 × 0.61 in
