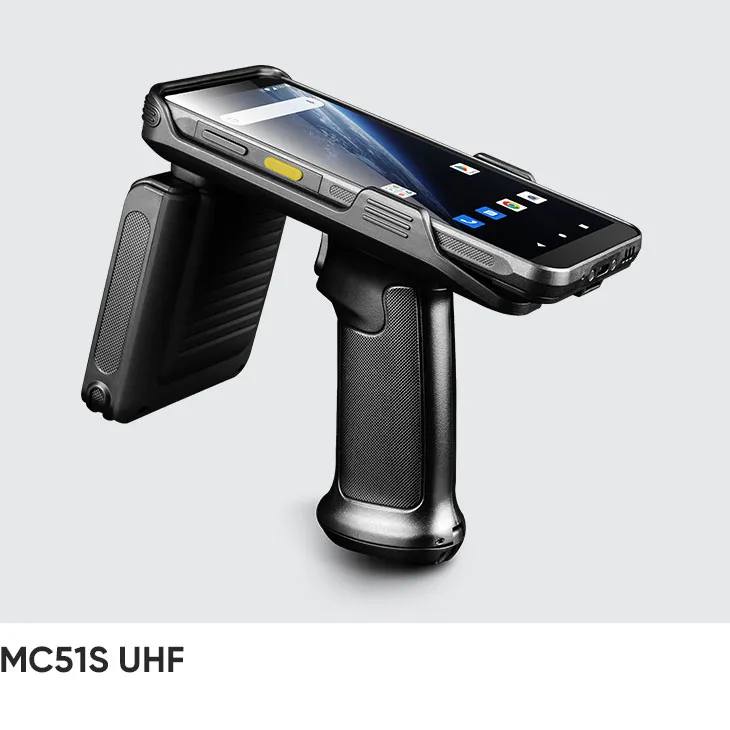

Chainway MC51S UHF RFID Reader

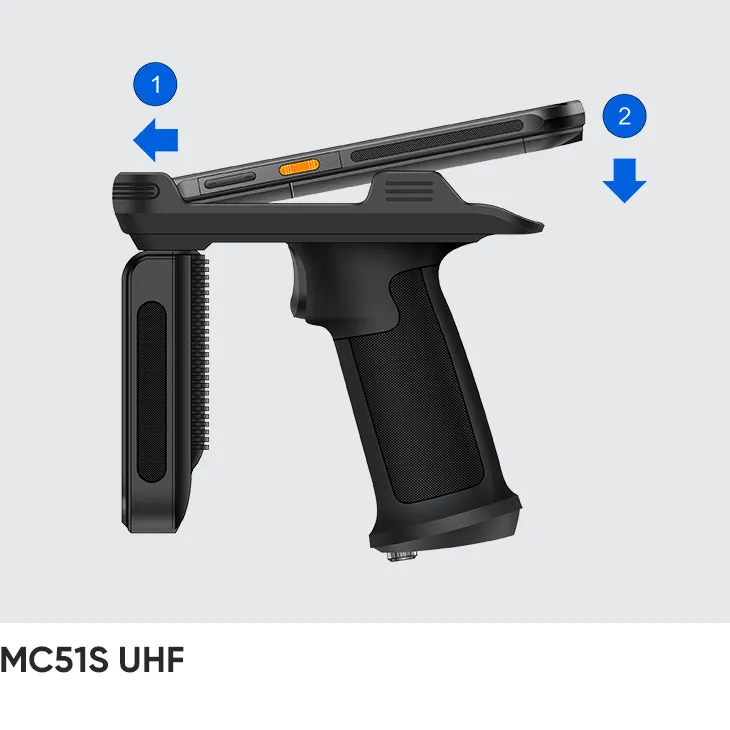

A powerful Android 16 UHF RFID reader, the MC51S features a detachable UHF sled powered by Impinj E family reader ICs. It delivers a read rate of up to 1300+tags/s and a read range of over 30m, along with a Qualcomm octa-core 2.8GHz processor and a 11200mAh removable battery.
- Operating systemAndroid 16
- Display6" display, 1440 × 720; Optional 2160 × 1080 FHD version
- SealingHost IP67 per IEC sealing specifications
- DropPassed 1.5m / 4.92ft. drop test to MIL-STD-810H standard
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 16
- Processor
- Octa-core 2.8GHz
- RAM / storage options
- 4GB + 64GB; optional up to 8GB + 256GB
Display
- Display size
- 6" display, 1440 × 720; Optional 2160 × 1080 FHD version
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 Power key, 2 scan keys, 1 volume (+/-) keys, 1 multifunctional key
Data capture
- Cameras
- 16MP Autofocus with flash 2D Scanner
Power
- Charging / power
- 5000mAh removable main battery, support QC3.0 and RTC Support Battery Management System Hot-swap 1-30dBm, step 1dB
Connectivity
- Wi-Fi / WLAN
- Supports 802.11 a/b/g/n/ac/ax; fast roaming supported
- Bluetooth
- Bluetooth 5.1, headset support
- Location / GPS
- GPS, BeiDou, GLONASS, and Galileo; AGPS supported 161.0 × 77.8 × 15.5mm / 6.34 × 3.06 × 0.61in.
- Ports / interfaces
- USB 3.0 Type-C with OTG and water-drop detection; Bottom contacts: 2-pin for charging; Rear contacts: 12-pin contacts for UHF back clip
Rugged
- IP / sealing
- Host IP67 per IEC sealing specifications
- Drop specification
- Passed 1.5m / 4.92ft. drop test to MIL-STD-810H standard
- Tumble specification
- 1000 × 0.5m / 1.64ft. falls, IEC compliant
- Operating temperature
- -4°F to 122°F / -20°C to +50°C
- Storage temperature
- -40°F to 158°F / -40°C to +70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- 600g / 21.16oz. (including handle, back clip)
- Dimensions
- 165.0 × 83.8 × 138.0mm / 6.50 × 3.30 × 5.43in.
