Chainway · RFID reader

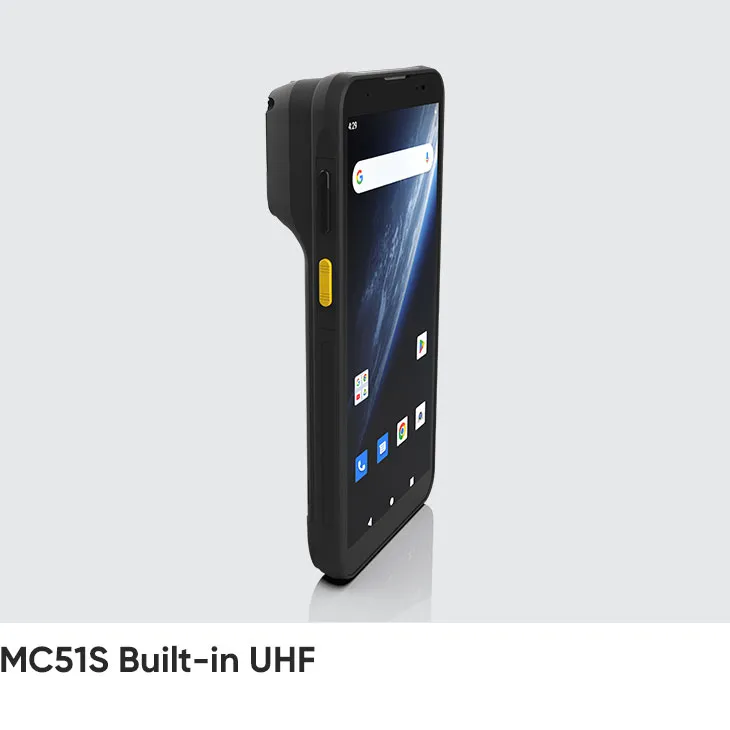

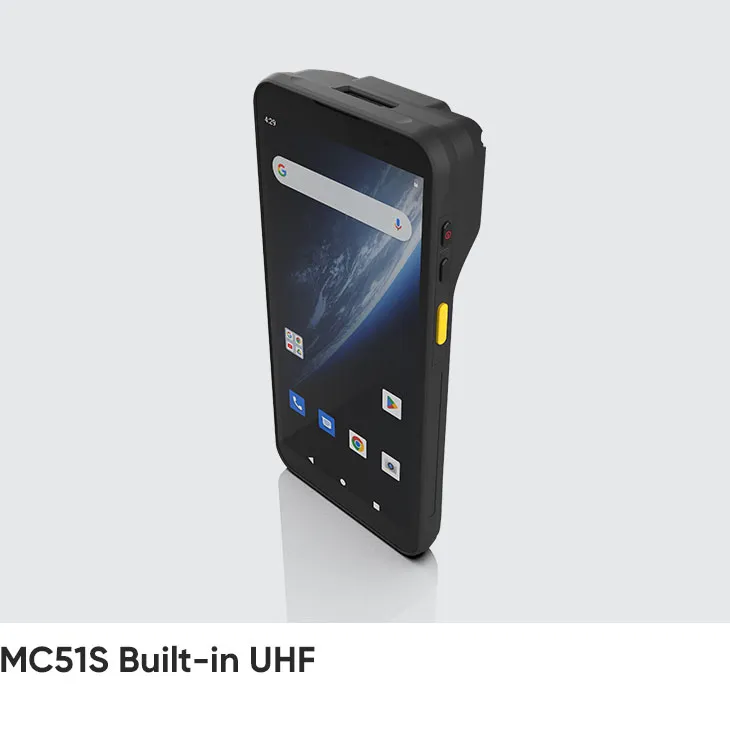

Chainway MC51S Built-in RFID Reader
A lightweight Android 16 UHF RFID reader, the MC51S features a self-developed built-in UHF module with a read range of up to 5m and a read rate of 750+tags/s. Powered by a Qualcomm octa-core platform up to 2.8GHz, it offers up to 8GB + 256GB UFS storage and a durable 6-inch HD display.
- Operating systemAndroid 16
- Display6" display, 1440 × 720; Optional 2160 × 1080 FHD version
- Battery5000mAh removable main battery, supports QC3.0 and RTC Supports Battery Management System Hot-swap
- SealingIP67 per IEC sealing specifications
- DropPassed 1.5m / 4.92ft. drop test to MIL-STD-810H standard
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 16
- Processor
- Octa-core 2.8GHz
- RAM / storage options
- 4GB + 64GB; optional up to 8GB + 256GB
Display
- Display size
- 6" display, 1440 × 720; Optional 2160 × 1080 FHD version
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 Power key, 2 scan keys, 1 volume (+/-) keys, 1 multifunctional key
Data capture
- Cameras
- 5MP 16MP Autofocus with flash 2D Scanner
Power
- Battery / runtime
- 5000mAh removable main battery, supports QC3.0 and RTC Supports Battery Management System Hot-swap
- Charging / power
- 1-30dBm, step 1dB
Connectivity
- Wi-Fi / WLAN
- Supports 802.11 a/b/g/n/ac/ax; fast roaming supported
- Bluetooth
- Bluetooth 5.1, headset support
- Location / GPS
- GPS, BeiDou, GLONASS, and Galileo; AGPS supported 161.0 × 77.8 × 15.5mm / 6.34 × 3.06 × 0.61in.
- Ports / interfaces
- USB 3.0 Type-C with OTG and water-drop detection; Bottom contacts: 2-pin for charging
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Passed 1.5m / 4.92ft. drop test to MIL-STD-810H standard
- Tumble specification
- 1000 × 0.5m / 1.64ft. falls, IEC compliant
- Operating temperature
- -4°F to 122°F / -20°C to +50°C
- Storage temperature
- -40°F to 158°F / -40°C to +70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- 323g / 11.39oz. (device with battery)
- Dimensions
- 161.0 × 77.8 × 15.5mm (Thickest Part: 29.2mm) 6.34 × 3.06 × 0.61in (Thickest Part: 1.15in.)
