Chainway · RFID reader

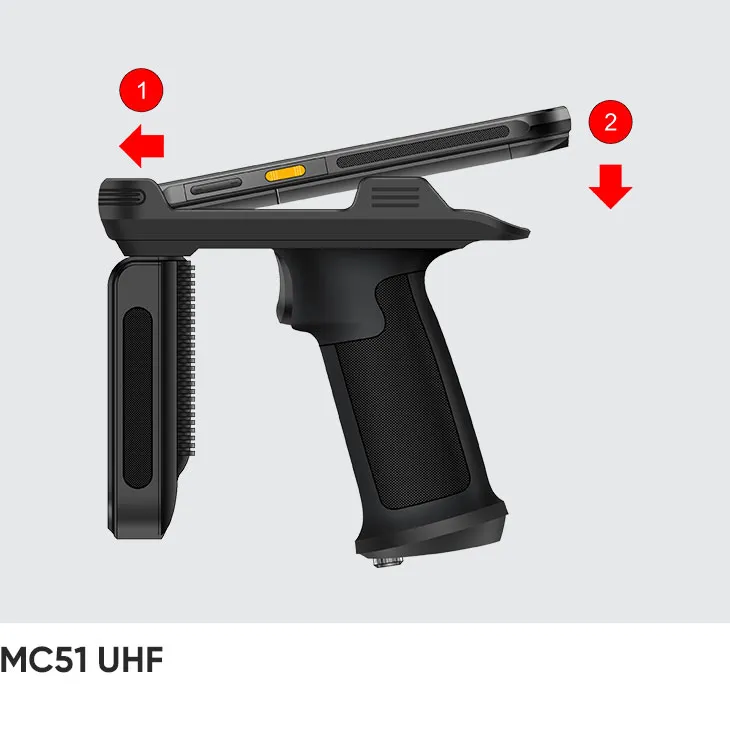

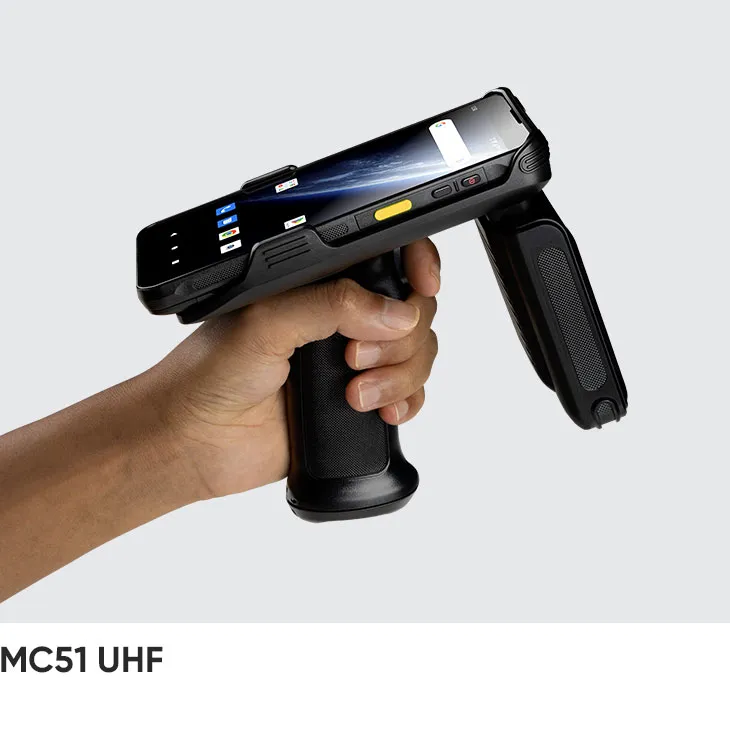

Chainway MC51 5G UHF RFID Reader
A powerful 5G UHF RFID reader running Android 14, the MC51 features a self-developed UHF module with an Impinj chip and Gen2X support. It delivers a 1300+tags/s read rate and a range beyond 30m, along with Wi-Fi 6E, a 6-inch display, and a 10200mAh hot-swappable battery.
- Operating systemAndroid 14
- Display6-inch high definition display (18:9), 1440 x 720
- Battery5000mAh removable main battery, 5200mAh removable pistol battery with Meter; Support QC3.0 and RTC; Support…
- SealingHost IP67 per IEC sealing specifications
- DropMultiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range MIL-STD-810H (SGS…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 14
- Processor
- Qualcomm Octa-core, 2.4GHz
- RAM / storage options
- UFS: 4GB + 64GB / 8GB + 256GB (optional)
Display
- Display size
- 6-inch high definition display (18:9), 1440 x 720
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Power key, 2 scan keys, volume (+/-) keys, 1 multifunctional key
Data capture
- Barcode formats
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix,
- NFC
- Frequency 13.56 MHz
- Cameras
- 5MP 16MP Autofocus with flash Rear Camera 16MP Autofocus with flash
Power
- Battery / runtime
- 5000mAh removable main battery, 5200mAh removable pistol battery with Meter; Support QC3.0 and RTC; Support Battery Management System; Hot swap battery backup
- Charging / power
- 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G/6G tri-band, IPV4, IPV6; 2*2 MIMO antennas Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAPLTS, PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G dual-band, IPV4, IPV6;
- Bluetooth
- Bluetooth 5.2
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG
Rugged
- IP / sealing
- Host IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range MIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20℃ to +50℃
- Storage temperature
- -40°F to 158°F / -40℃ to +70℃
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 707g / 24.94oz. (device with battery)
- Dimensions
- 165.0 x 83.8 x 138.0mm / 6.50 x 3.30 x 5.43 in.
