Chainway · RFID reader

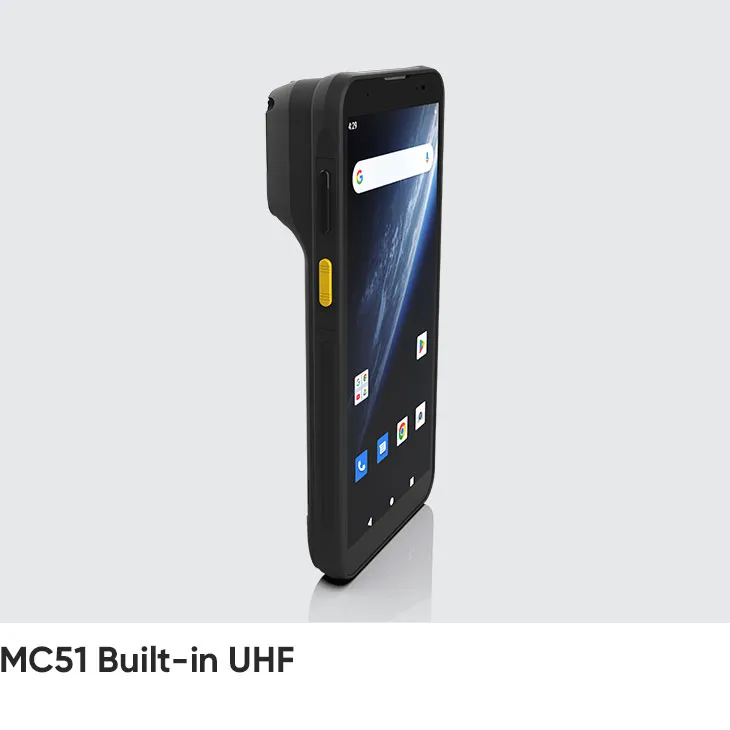

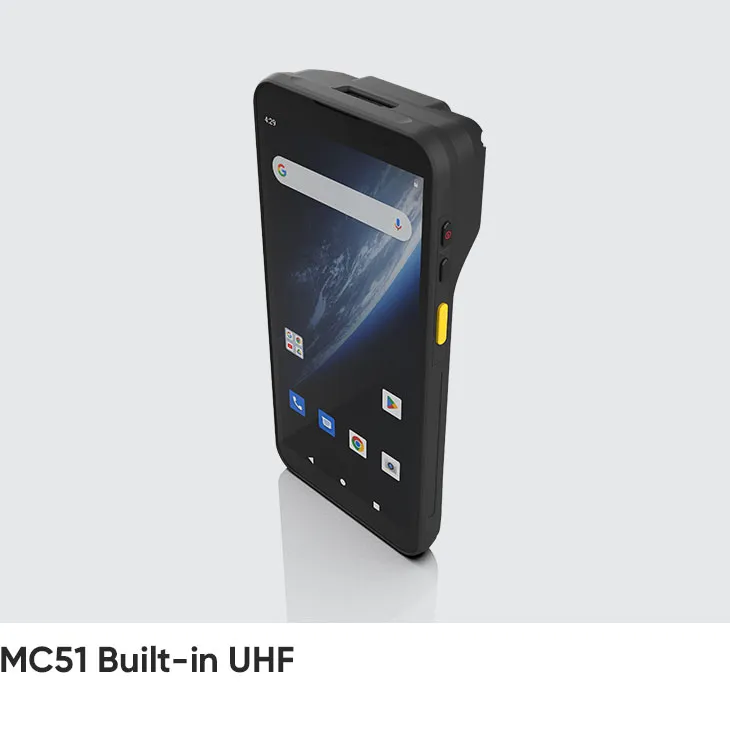

Chainway MC51 5G Built-in RFID Reader
A compact 5G UHF RFID reader running Android 14, the MC51 features a built-in, self-developed UHF module with an Impinj chip and Gen2X support. It delivers a 750+tags/s read rate, near 100% accuracy, and a read range of up to 5m, along with Wi-Fi 6E and a 6-inch display.
- Operating systemAndroid 14
- Display6-inch high definition display (18:9), 1440 x 720
- Battery5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery…
- SealingIP67 per IEC sealing specifications
- DropMultiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range MIL-STD-810H (SGS…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 14
- Processor
- Qualcomm Octa-core, 2.4GHz
- RAM / storage options
- UFS: 4GB + 64GB / 8GB + 256GB (optional)
Display
- Display size
- 6-inch high definition display (18:9), 1440 x 720
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Power key, 2 scan keys, volume (+/-) keys, 1 multifunctional key
Data capture
- Barcode formats
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix,
- Cameras
- 5MP 16MP Autofocus with flash Rear Camera 16MP Autofocus with flash
Power
- Battery / runtime
- 5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery backup
- Charging / power
- +5dBm to +30dBm adjustable
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G/6G tri-band, IPV4, IPV6; 2*2 MIMO antennas Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAPLTS, PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G dual-band, IPV4, IPV6;
- Ports / interfaces
- USB Type-C, USB 3.1, OTG
Rugged
- IP / sealing
- IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.92ft. drops to the concrete across the operating temperature range MIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20℃ to +50℃
- Storage temperature
- -40°F to 158°F / -40℃ to +70℃
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 323g / 11.39oz. (device with battery)
- Dimensions
- 161.0 x 77.8 x 15.5mm (Thickest Part: 29.2mm) 6.34 x 3.06 x 0.61 in (Thickest Part: 1.15 in.)
Send a request
Get a quote for the MC51 5G Built-in RFID Reader
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
