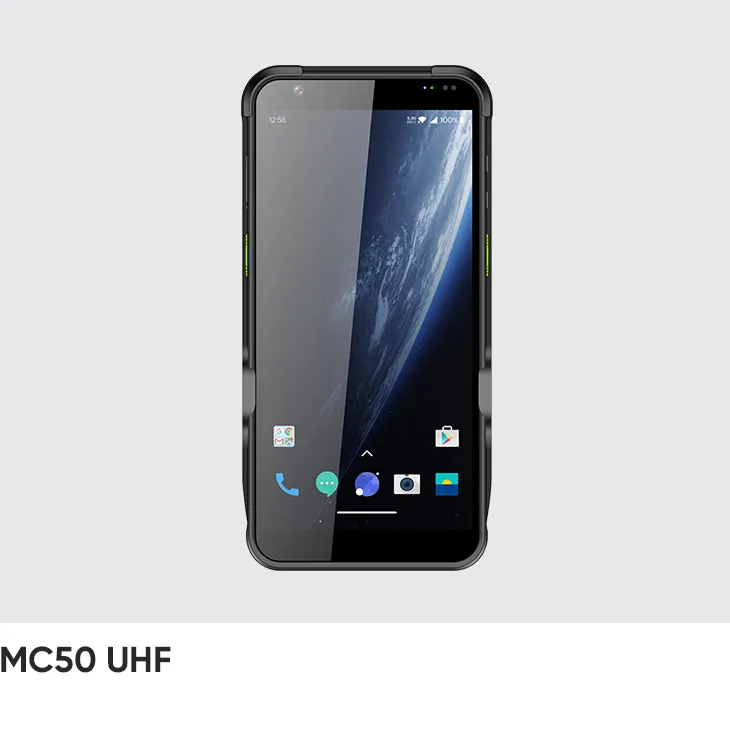

Chainway MC50 5G UHF RFID Reader

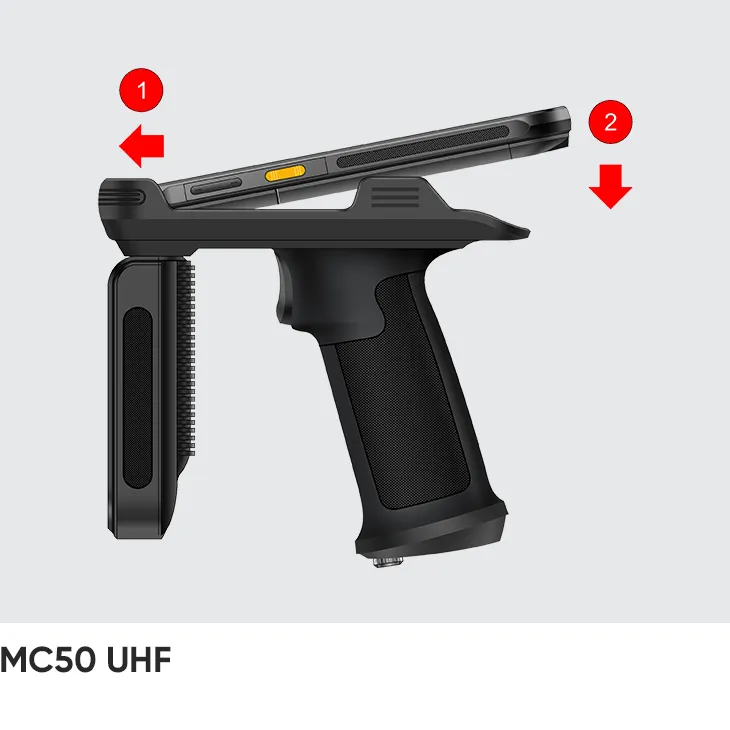

A powerful 5G UHF RFID reader running Android 12 / 14, the MC50 features a detachable UHF back clip and a self-developed UHF module based on Impinj E Series chips with Gen2X support. It delivers a 1300+tags/s read rate and a read range of over 30m, along with Wi-Fi 6-ready connectivity and a 10200mAh removable battery.
- Operating systemAndroid 12/14
- Display6-inch high definition display (18:9), 1440 x 720
- Battery5000mAh removable main battery,
- SealingHost IP67 per IEC sealing specifications
- DropMultiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 12/14
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 4GB + 64GB / 6GB + 128GB (Optional) / 8GB + 128GB (Optional)
Display
- Display size
- 6-inch high definition display (18:9), 1440 x 720
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Power key, 2 scan keys, volume (+/-) keys
Data capture
- Barcode formats
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix,
- NFC
- Frequency 13.56 MHz
- Cameras
- 5MP 16MP Autofocus with flash Rear Camera 16MP Autofocus with flash
Power
- Battery / runtime
- 5000mAh removable main battery,
- Charging / power
- 5000mAh removable main battery 5200mAh removable pistol battery with / without Meter(Optional) support QC3.0 and RTC 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; 2x2 MU-MIMO; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band,
- Cellular / WWAN
- 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41 5G: N1/N3/N8/N28/N41/N78/N79 2G: 850/900/1800/1900 MHz
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG
Rugged
- IP / sealing
- Host IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20°C to +50°C
- Storage temperature
- -40°F to 158°F / -40°C to +70°C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 679g / 23.95oz. (device with battery)
- Dimensions
- 165.0 x 83.8x 138.0mm / 6.49 x 3.30 x 5.43 in.
