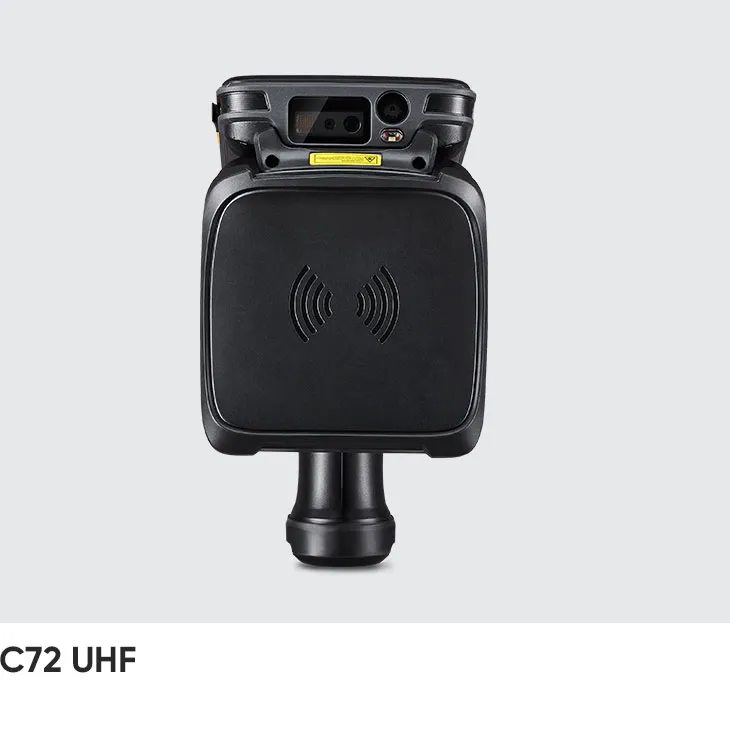

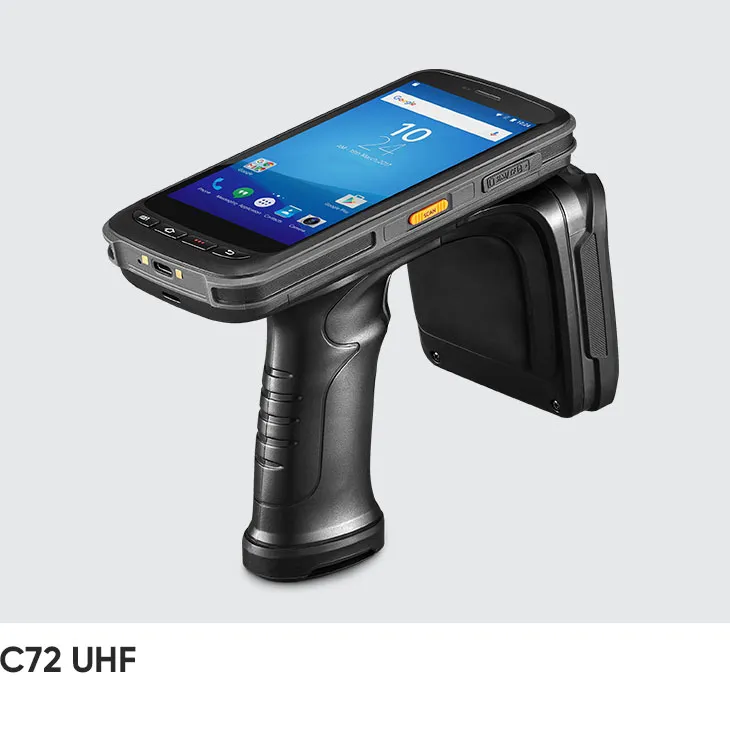

Chainway C72 UHF RFID Reader
Best-selling RFID reader with market-proven UHF performance. Its optimized antenna design and unique long-range anti-interference technology ensure reliable tag reading from up to 30 meters, even in outdoor or challenging environments. It can also read over 1,300 tags/s. Equipped with a high-performance processor and a large-capacity battery, the C72 can easily last through an entire shift, excelling in demanding situations.
- Operating systemAndroid 11/13; GMS, 90-day security updates, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported.
- Display5.2'' IPS LTPS 1920 x 1080
- SealingHost IP65 per IEC sealing specifications
- DropMultiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 11/13; GMS, 90-day security updates, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported.
- Processor
- Octa-core, 2.3GHz
- RAM / storage options
- 4GB + 128GB / 4GB + 64GB (optional)
Display
- Display size
- 5.2'' IPS LTPS 1920 x 1080
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- 13 MP Autofocus with flash Camera 13 MP Autofocus with flash
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) 1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.) Li-ion, rechargeable, 8000 mAh
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28A        B28B/B34/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou; internal antenna 4G
- Ports / interfaces
- USB 2.0 Type-C, OTG, Type-C headphones supported
Rugged
- IP / sealing
- Host IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- 4 °F to 122 °F / -20 °C to 50 °C
- Storage temperature
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- Host: 375 g / 13.23 oz. Dimensions with UHF handle: 673 g / 23.74 oz.
- Dimensions
- Host: 166.2 x 81.1 x 24.1 mm / 6.54 x 3.19 x 0.95 in. Dimensions with UHF handle: 177 x 88.6 x 145.8 mm / 6.97 x 3.49 x 5.74 in. Host: 166.2 x 81.1 x 24.1 mm / 6.54 x 3.19 x 0.95 in.
