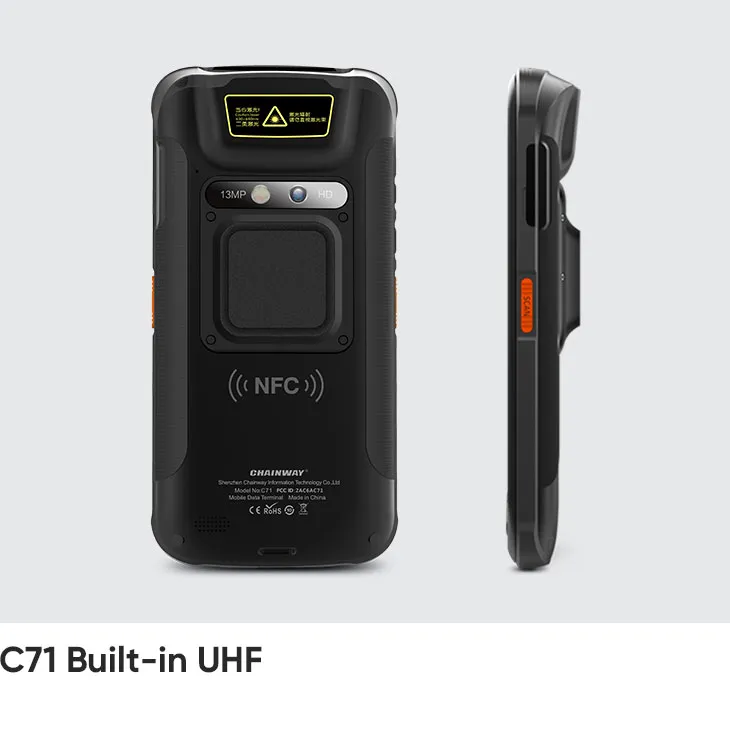

Chainway C71 Built-in RFID Reader
Chainway C71 is a built-in Android RFID reader. The newly-upgrade of Octa-Core CPU brings the overall performance improvement that enables high-speed and stable possessing.
- Operating systemAndroid 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Display5.2'' IPS LTPS 1920 x 1080
- SealingIP65 / IP67 per IEC sealing specifications
- DropMultiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Processor
- Octa-core 2.3 GHz
- RAM / storage options
- 4GB + 128GB 4GB + 64GB (optional)
Display
- Display size
- 5.2'' IPS LTPS 1920 x 1080
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Data capture
- NFC
- Frequency 13.56MHz
- Cameras
- 5 MP *This function is optional 13 MP autofocus rear camera with flash Facial Recognition lSO19794-5 Compatible Rear Camera 13MP Autofocus with flash (optional) 5MP camera
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 5000 mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) 1W (+5 dBm to +30 dBm adjustable) Main battery: Li-ion, rechargeable, 5000mAh
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou; internal antenna
- Ports / interfaces
- USB 2.0 Type-C, OTG, Type-C headphones supported
Rugged
- IP / sealing
- IP65 / IP67 per IEC sealing specifications
- Drop specification
- Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- 4 °F to 113 °F / -20 °C to 45 °C
- Storage temperature
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- ＜321 g / 11.32 oz.
- Dimensions
- 164.2 x 78.8 x 17.5mm / 6.46 x 3.10 x 0.69 in.
