Chainway · RFID reader

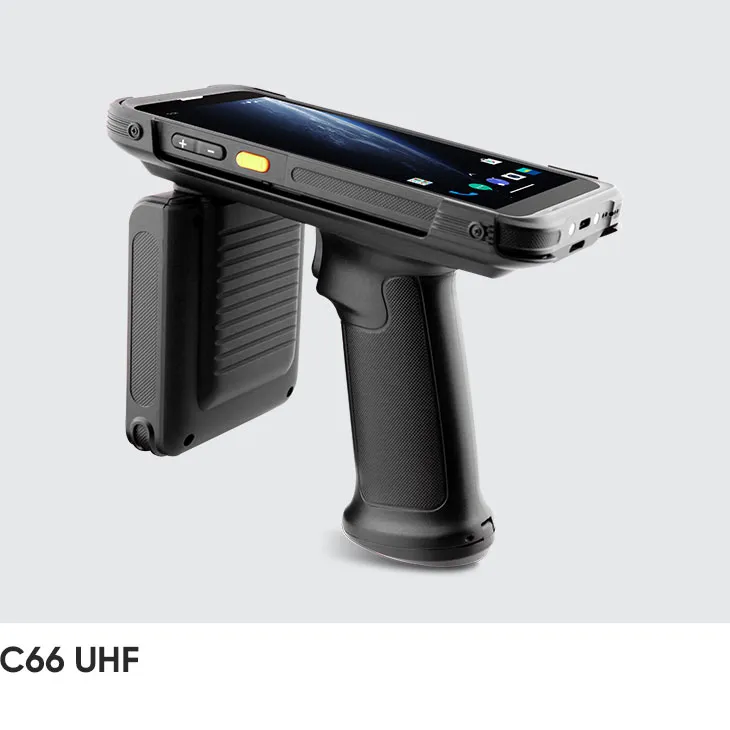

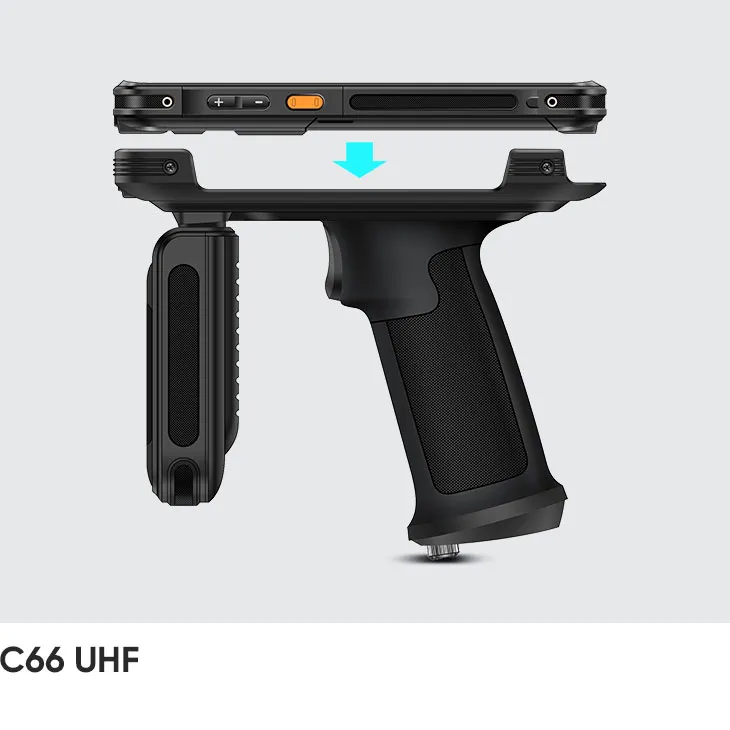

Chainway C66 UHF RFID Reader
A powerful UHF RFID reader running Android 11 / 13, the C66 offers long-range and built-in UHF configurations with Impinj Gen2X support. It delivers a 1300+tags/s read rate and a read range of up to 30m, along with Wi-Fi 6-ready connectivity, optional barcode scanning, NFC, and a 9600mAh removable battery.
- Operating systemAndroid 16/13/11; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl…
- Display5.5-inch high definition full display (18:9) , IPS 1440 x 720
- BatteryRemovable main battery (normal version:4420 mAh ; with fingerprint / built-in UHF version: 5200mAh ) 5200…
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 16/13/11; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility Android 11/13/16; GMS, 90-day security updates, Android Enterprise
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- 3GB + 32GB 4GB + 64GB (optional) 6GB + 64GB (optional) 6GB + 128GB (optional)
Display
- Display size
- 5.5-inch high definition full display (18:9) , IPS 1440 x 720
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 power key, 2 scan keys, 2 volume keys
Data capture
- NFC
- Frequency 13.56MHz
- Cameras
- Rear 13 MP Autofocus with flash Facial Recognition lSO19794-5 Compatible Rear Camera Rear 13MP Autofocus with flash
Power
- Battery / runtime
- Removable main battery (normal version:4420 mAh ; with fingerprint / built-in UHF version: 5200mAh ) 5200 mAh optional pistol battery, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) Removable main battery (normal version:4420 mAh; Android 11 with
- Charging / power
- 1W (30dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) 1 W (+5dBm to +30dBm adjustable) 1W (30dBm, +5dBm to +30dBm adjustable)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise,etc. Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG, extended thimble;
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot Multiple 1.8m / 5.91ft. drops (at least 20 times) to the concrete across the
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -20 ℃~+50 ℃ Multiple 2.4m / 7.87ft. drops (at least 20 times) to the concrete after
- Storage temperature
- -40 ℃~+70 ℃
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 657 g / 23.17 oz. (with battery, UHF 1, UHF back clip); 798 g / 28.15 oz. (with battery, UHF 2, C66+R6); 297 g / 10.47 oz. (with battery, UHF 3, Built-in UHF)
- Dimensions
- 160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in.
