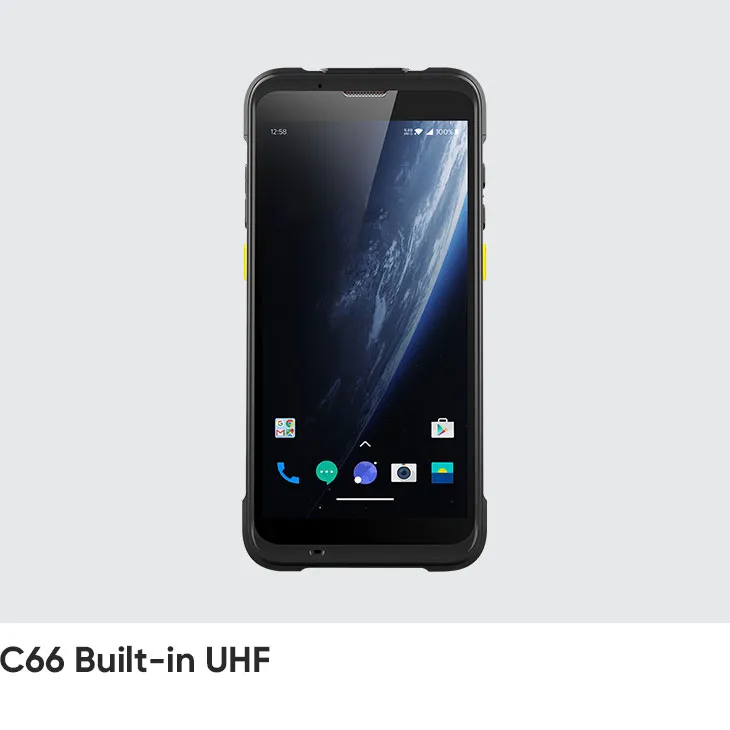

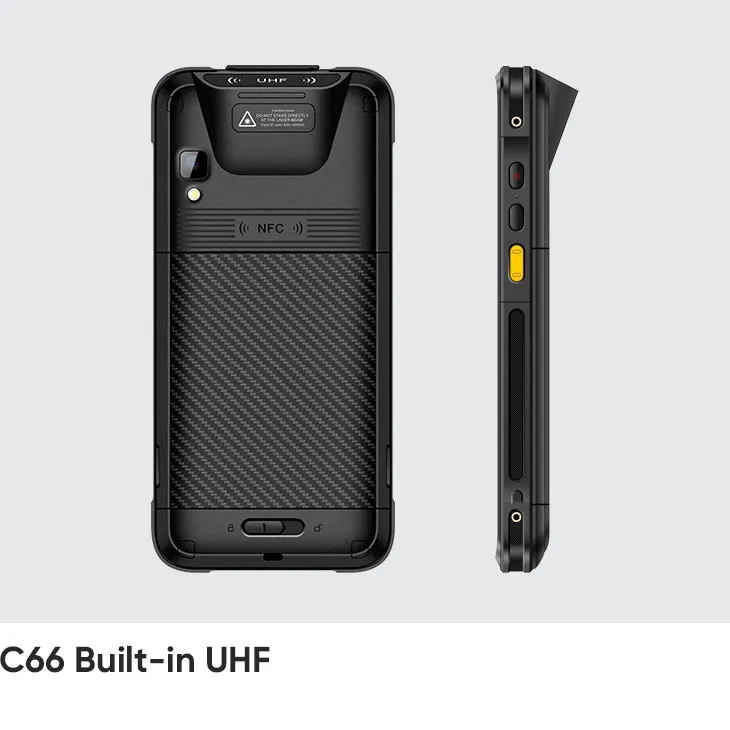

Chainway C66 Built-in RFID Reader
A compact and lightweight UHF RFID reader running Android 11 / 13, the C66 features a self-developed built-in UHF module with Impinj Gen2X support and a read range of up to 2.7m. It also offers Wi-Fi 6-ready connectivity, optional barcode scanning, NFC, and a 5200mAh removable battery.
- Operating systemAndroid 16/13/11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti…
- Display5.5-inch high definition full display (18:9), IPS 1440 x 720
- BatteryRemovable main battery 5200mAh, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up…
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 16/13/11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported Android 11/13/16; GMS, 90-day security updates, Android Enterprise
- Processor
- Octa-core, 2.0 GHz
- RAM / storage options
- 3GB + 32GB / 4GB + 64GB / 6GB + 64GB
Display
- Display size
- 5.5-inch high definition full display (18:9), IPS 1440 x 720
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 1 power key, 2 scan keys, 2 volume keys
Data capture
- NFC
- Frequency 13.56MHz
- Cameras
- Rear 13MP Autofocus with flash Facial Recognition lSO19794-5 Compatible Rear Camera Rear 13MP Autofocus with flash
Power
- Battery / runtime
- Removable main battery 5200mAh, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) Removable main battery (normal version:4420 mAh; Android 11 with
- Charging / power
- 1W (+19dBm to +30dBm adjustable) 1W (30dBm, +5dBm to +30dBm adjustable)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG, extended thimble;
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot Multiple 1.8m / 5.91ft. drops (at least 20 times) to the concrete across the
- Tumble specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
- Operating temperature
- -4°F to 122°F / -20 ℃ to +50 ℃ Multiple 2.4m / 7.87ft. drops (at least 20 times) to the concrete after
- Storage temperature
- -40°F to 158°F / -40 ℃ to +70 ℃
- Humidity
- 5% RH - 95% RH non condensing
Size
- Weight
- 297 g / 10.47 oz. (device with battery)
- Dimensions
- 160.0 x 76.0 x 26.0 mm / 6.3 x 2.99 x 1.02 in.
