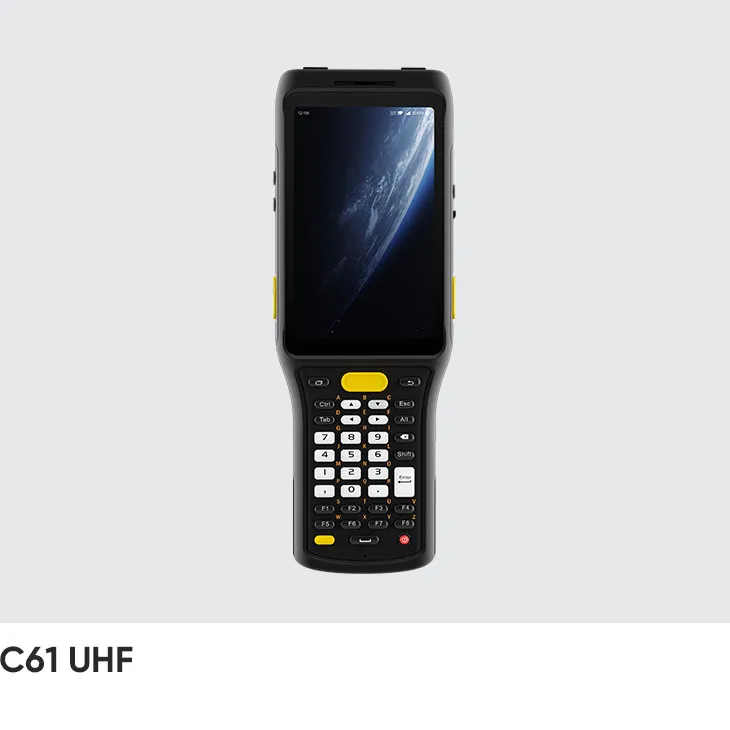

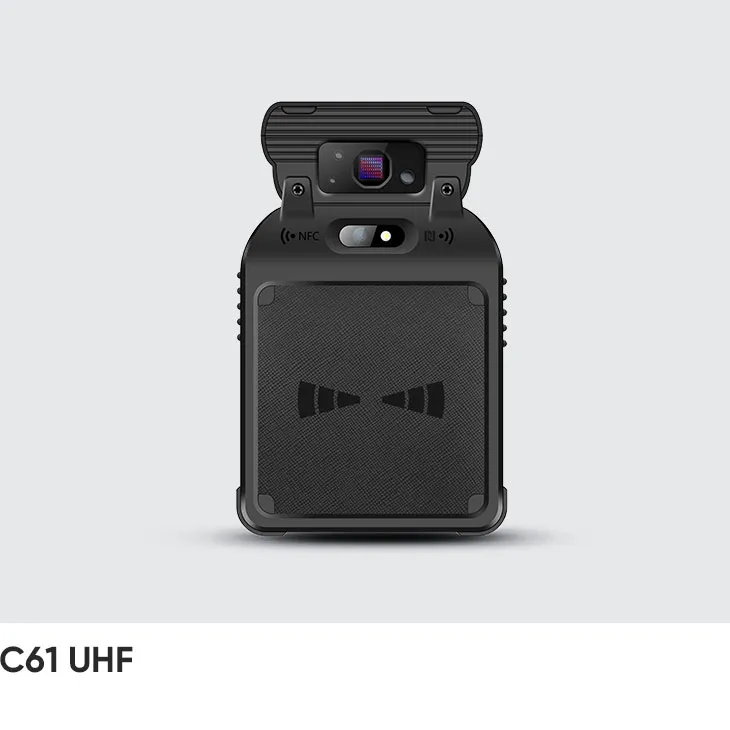

Chainway C61 UHF RFID Reader
A high-performance keypad UHF RFID reader running Android 11 / 13, the C61 features a self-developed UHF module based on Impinj E Series chips with Gen2X support. It delivers a 1300+tags/s read rate and a read range of over 30m, with 27/37/47-key options and an 11900mAh battery.
- Operating systemAndroid 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti…
- Display4-inch high definition display, 800 x 480
- Battery6700mAh removable main battery, 5200mAh optional pistol battery, support QC3.0 and RTC；Built in 100mAh…
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility Android 11/13; GMS, 90-day security updates, Android Enterprise
- Processor
- Octa-core, 2.0 GHz
- RAM / storage options
- 3GB + 32GB / 4GB + 64GB / 6GB + 64GB
Display
- Display size
- 4-inch high definition display, 800 x 480
- Touch panel
- Multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- Main keyboard (Optional): 27 keys / 37 keys / 47 keys; Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key
Data capture
- NFC
- Frequency 13.56 MHz
- Cameras
- Rear 13MP Autofocus with flash Rear Camera Rear 13 MP Autofocus with flash
Power
- Battery / runtime
- 6700mAh removable main battery, 5200mAh optional pistol battery, support QC3.0 and RTC；Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h) Continuous use: over 12 hours (depending on user environment) Charging time: 3.5 hours (charge device by standard adaptor and USB cable) 6700 mAh removable main battery, 5200 mAh optional
- Charging / power
- 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) 1W (30 dBm, +5 dBm to +30 dBm adjustable)
Connectivity
- Wi-Fi / WLAN
- Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations; Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise,etc. Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dualband, IPV4, IPV6, 5G PA;
- Bluetooth
- Bluetooth 5.1
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
- Ports / interfaces
- USB Type-C, USB 3.1, OTG, extended thimble
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64ft. falls at room temperature Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Operating temperature
- -4℉ to 122 ℉ / -20℃ to 50℃
- Storage temperature
- -40℉ to 158℉ / -40℃ to 70℃
- Humidity
- 5 RH to 95%RH (non condensing)
Size
- Weight
- 13.05oz. / 370g(SE4710); 14.25oz. / 404g(SE4850); 26 .05oz. / 738g(SE4850, UHF, pistol battery) Device Weight for Argentina, Uruguay, Bolivia, Ecuador market: 342~404 g, including battery
- Dimensions
- 211.4 x 85.8 x 152mm / 8.32 x 3.38 x 5.98in. 202.0 x 72.5 x 32.0mm / 7.95 x 2.85 x 1.26in. (Standard Version)
