Chainway · RFID reader

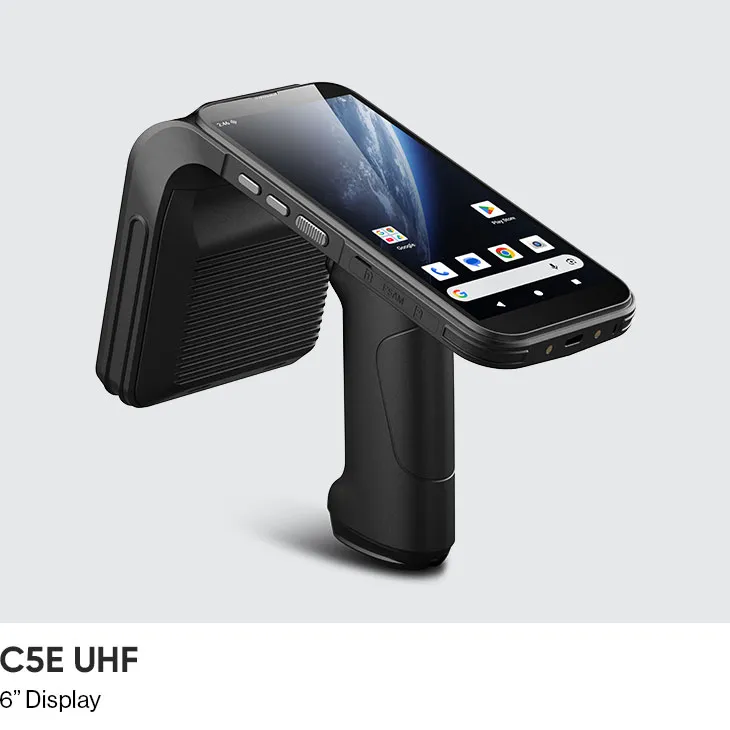

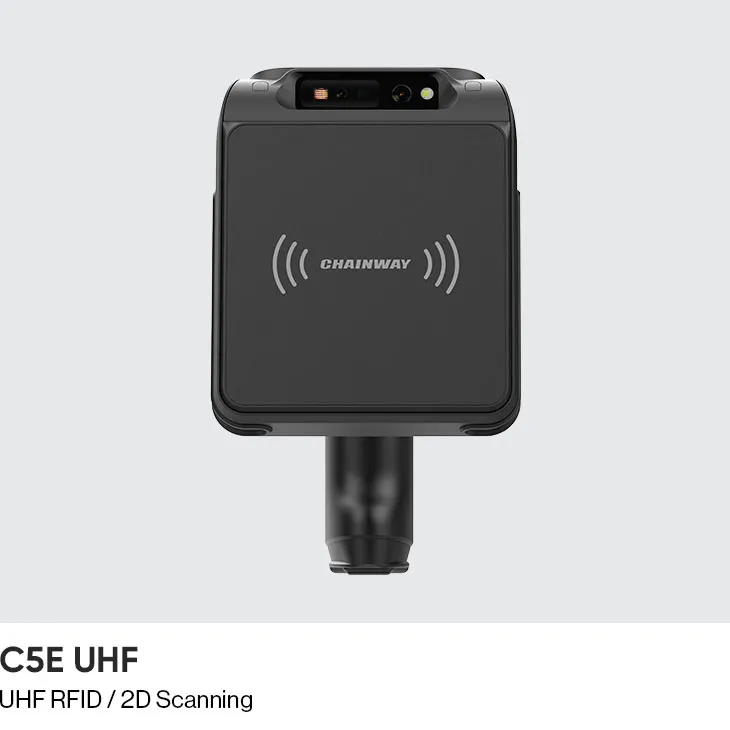

Chainway C5E UHF RFID Reader
A powerful Android 16 handheld RFID reader, the C5E features an Impinj E Series chip with Gen2X support. It delivers a 1300+tags/s read rate and a read range of up to 33m, along with an octa-core 2.0GHz processor, Wi-Fi 6-ready connectivity, and a 7000mAh removable hot-swappable battery.
- Operating systemAndroid 16
- Display6" display, 720 × 1440; optional 1080 × 2160 FHD+ version
- Battery7,000mAh removable pistol battery, optional smart battery; supports QC 3.0 and hot-swap
- SealingIP65
- DropPassed 1.5-meter (4.92 ft) drop test compliant with MIL-STD-810H military standard
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 16
- Processor
- Octa-core, 2.0GHz
- RAM / storage options
- UFS: 4GB + 64GB; Optional up to 8GB + 256GB
Display
- Display size
- 6" display, 720 × 1440; optional 1080 × 2160 FHD+ version
- Touch panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet-hand operation supported
- Keyboard / keys
- 1 power key, 2 scan keys, 1 volume (+/-) key, 1 multifunctional key
Data capture
- Cameras
- 5MP 13MP, Autofocus with flash
Power
- Battery / runtime
- 7,000mAh removable pistol battery, optional smart battery; supports QC 3.0 and hot-swap
Connectivity
- Wi-Fi / WLAN
- Supports 802.11 a/b/g/n/ac/ax-ready; fast roaming supported 178.8 x 96.5 x 128.4 mm / 7.04 x 3.80 x 5.06 in.
- Bluetooth
- Bluetooth 5.1, headset support
- Location / GPS
- GPS, BeiDou, GLONASS, and Galileo; A-GPS supported
- Ports / interfaces
- USB 2.0, Type-C, with OTG; Bottom contacts: 2-pin for charging
Rugged
- IP / sealing
- IP65
- Drop specification
- Passed 1.5-meter (4.92 ft) drop test compliant with MIL-STD-810H military standard
- Tumble specification
- 1000 × 0.5m / 1.64ft. falls, IEC compliant
- Operating temperature
- -4°F to +122°F (-20°C to +50°C)
- Storage temperature
- -40°F to +158°F (-40°C to +70°C)
- Humidity
- 5%RH - 95%RH, non-condensing
Size
- Weight
- 626g / 22.08oz. (device with battery)
- Dimensions
- 178.8 × 96.5 × 128.4mm / 7.04 × 3.80 × 5.06in.
