Chainway · RFID reader
Chainway C5 UHF RFID Reader

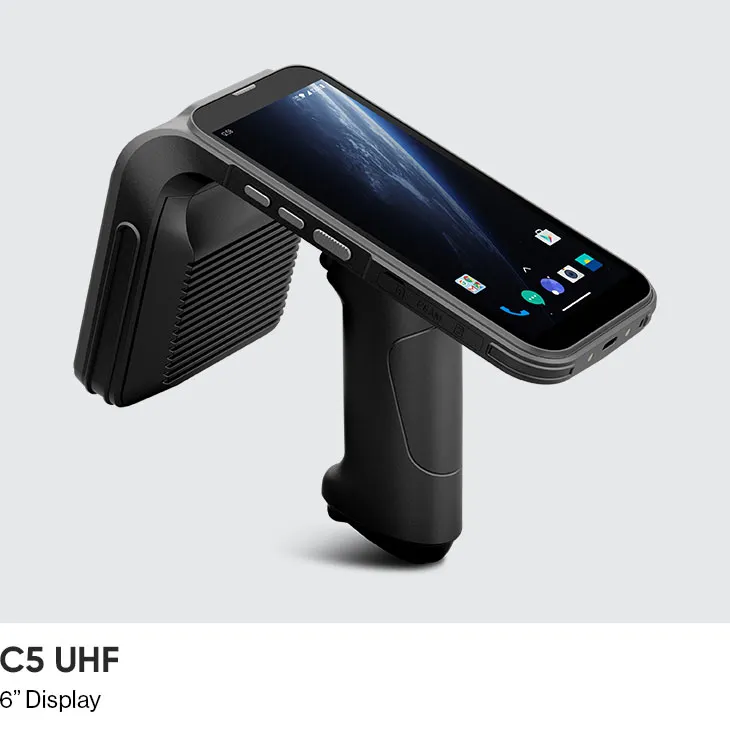

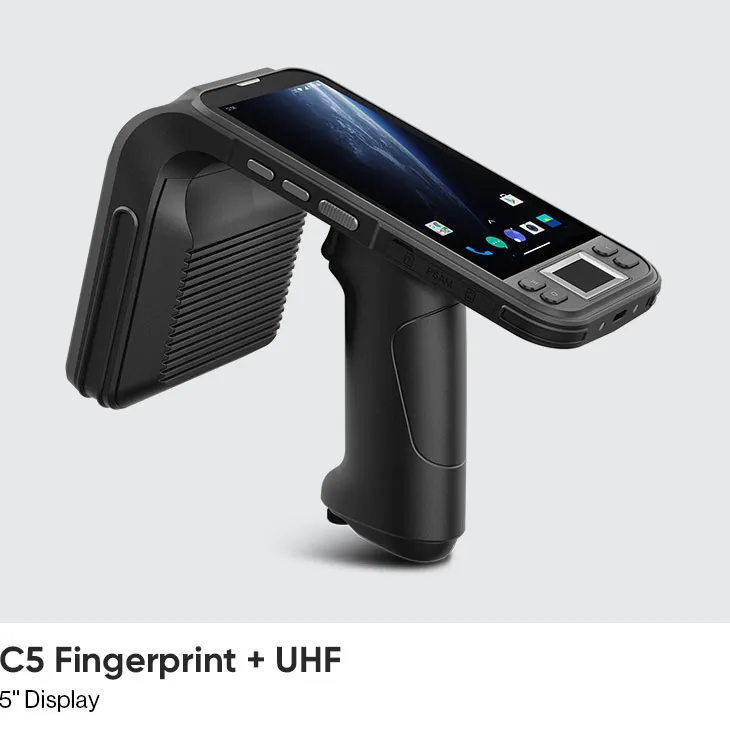

The most powerful 5G handheld RFID reader, the C5 features an integrated design for enhanced stability and reliability. It offers two versions: a 6-inch screen for a wider view, and a 5-inch fingerprint version for added security—ideal for banks and security-sensitive industries. Its impressive battery design includes a removable 6700mAh or 13400mAh pistol battery, plus a 100mAh backup battery with hot-swapping support, ensuring long, uninterrupted operation.
- Operating systemAndroid 11/13, upgradable to Android 16.
- Display5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080
- Battery7000mAh / 13400mAh removable pistol battery
- SealingIP65 per IEC sealing specifications
- DropMultiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 11/13, upgradable to Android 16.
- Processor
- Octa-core, 2.3GHz
- RAM / storage options
- 4GB + 128GB 4GB + 64GB (Optional)
Display
- Display size
- 5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080
- Touch panel
- Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
- Keyboard / keys
- 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)
Data capture
- Cameras
- 5MP Rear 13MP Autofocus with flash Front camera 5MP
Power
- Battery / runtime
- 7000mAh / 13400mAh removable pistol battery
- Charging / power
- 7000mAh / 13400mAh removable pistol battery Built in 100mAh backup battery, supporting battery hot swap
Connectivity
- Wi-Fi / WLAN
- 802.11 a / b / g / n / ac, 2.4G / 5G dual-band
- Cellular / WWAN
- 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8)  CDMA2000 ECDO: BC0 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41 2G: GSM (B2 / B3 / B5 / B8)
- Bluetooth
- 5.0
- Location / GPS
- GPS / AGPS, GLONASS, BeiDou, Galileo
- Ports / interfaces
- USB 2.0 Type-C, OTG, Type-C headphones supported
Rugged
- IP / sealing
- IP65 per IEC sealing specifications
- Drop specification
- Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5m / 1.64 ft. falls at room temperature Specification 1000 x 0.5m / 1.64 ft. falls at room temperature
- Operating temperature
- -20 °C to 50 °C / 4 °F to 122 °F
- Storage temperature
- -40 °C to 70 °C / -40 °F to 158 °F
- Humidity
- 5% RH - 95% RH (non condensing)
Size
- Weight
- 626g / 22.08oz. (device with battery)
- Dimensions
- 178.8 x 96.5 x 128.4mm / 7.03 x 3.80 x 5.06in
Send a request
Get a quote for the C5 UHF RFID Reader
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
