CAEN RFID · RFID reader

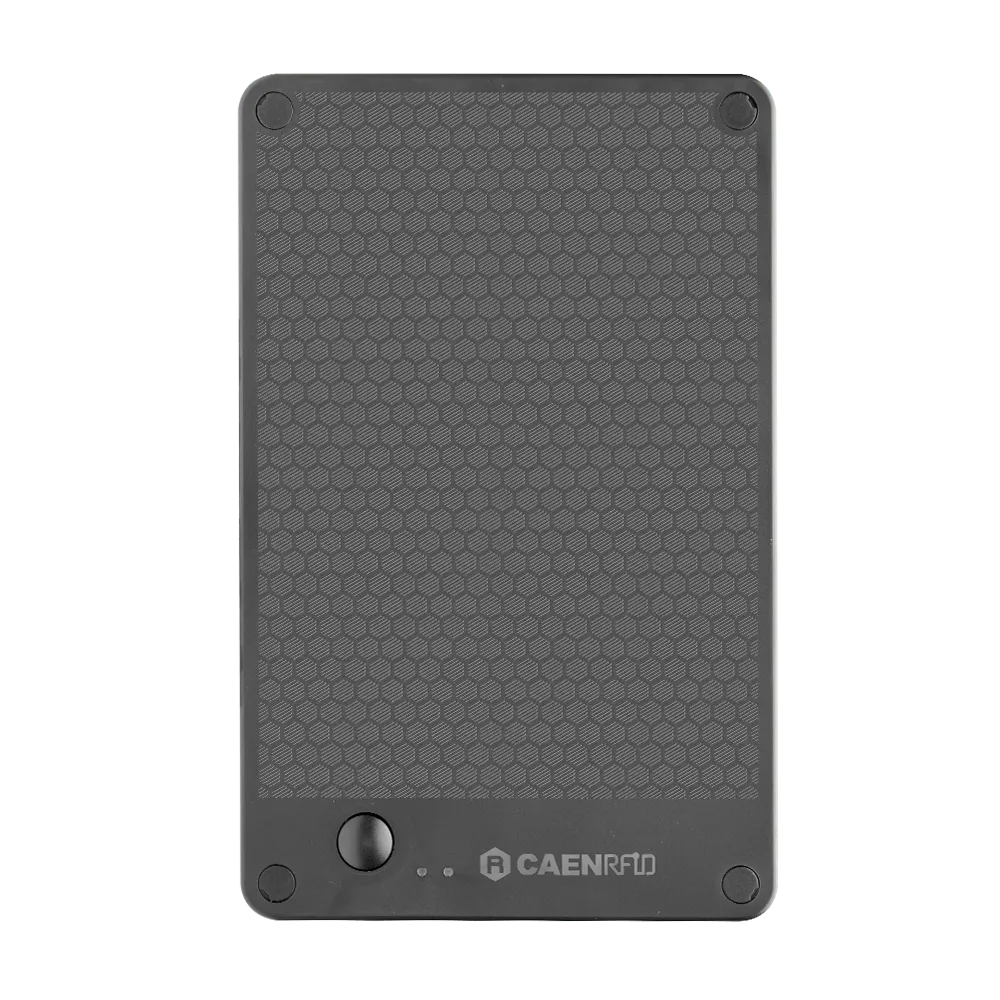

CAEN RFID Slate 3
The Slate 3 (Model R1353I) is a slim RAIN RFID reader of the easy2read © product line with integrated antenna for short to medium range applications. The reader is powered and controlled directly by an USB type C cable, thus allowing to read RAIN RFID tags in an easy desktop environment.
- SealingIP30
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Frequency Range
- 865.600÷867.600 MHz (ETSI EN 302 208 v3.4.1) (Mod. R1353IE) 902÷928 MHz (FCC part 15.247) (Mod. R1353IU)
- RF Power
- Configurable from -5 dBm ERP to 20 dBm ERP (Mod. R1353IE) Configurable from -3 dBm EIRP to 22 dBm EIRP (Mod. R1353IU)
- Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.4.1) (Mod. R1353IE) 50 hopping channels (compliant to FCC part 15.247) (Mod. R1353U)
- Standard Compliance
- EPC Class 1 Gen 2 – ISO18000-63
- Antenna gain
- -3 dBi (typical)
- Antenna Type
- Circular Polarized UHF Antenna
- Scan range / decode distances
- Up to 1 m (Typical)
- USB Interface
- USB 2.0 Full Speed (12 Mbit/s) via USB Type-C connector HID profile available Virtual COM Port parameters: – Baudrate up to 921.600 kbit/s – Databits: 8 – Stopbit: 1 – Parity: none – Flow control: none
- User Interface

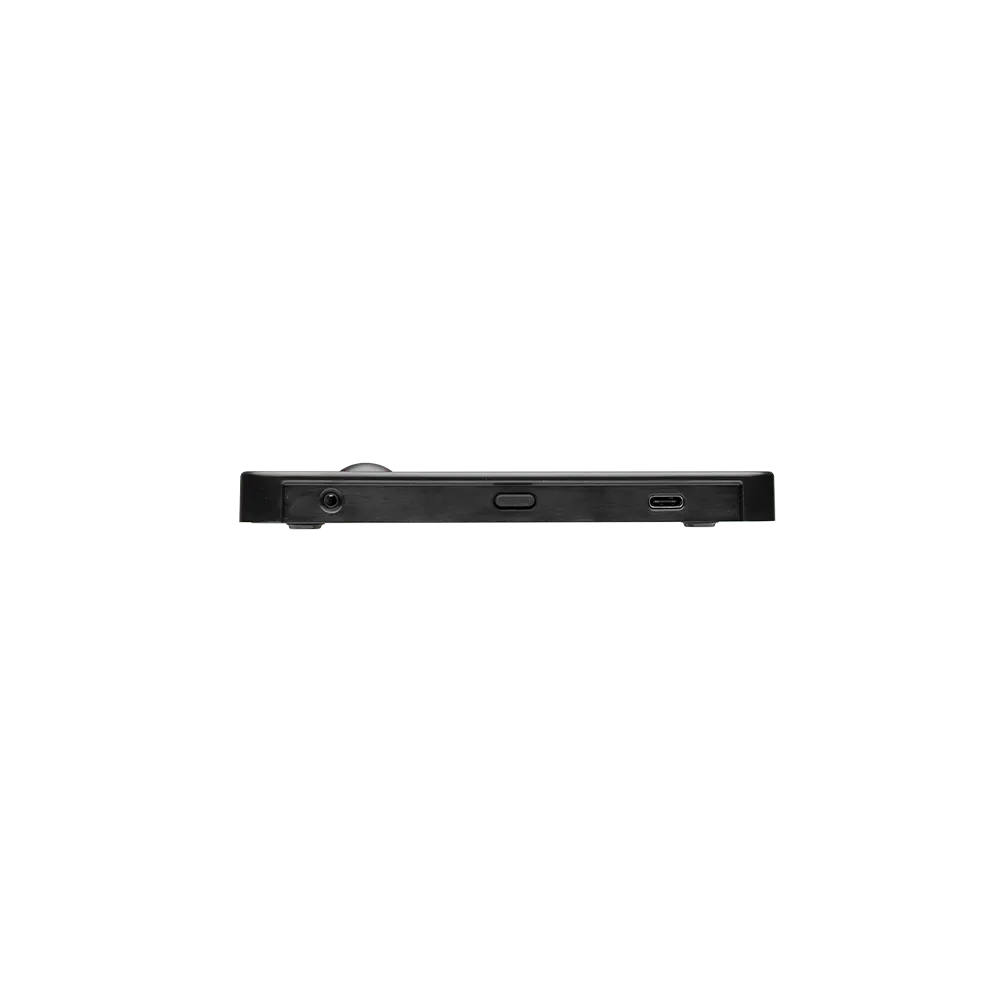

- Power button Power and tag read status LED Trigger button Jack connector for external trigger button Bi-tonal buzzer for event signaling
- IP / sealing
- IP30
- Dimensions
- 220 x 140 x 13/17 mm 3 (8.67 x 5.51 x 0.51/0.67 inches 3 )
- Operating temperature
- -10 °C to +55 °C
- Weight
- 275 g
- USB Cable Length
- 1.5 m
