Zebra · Handheld RFID reader

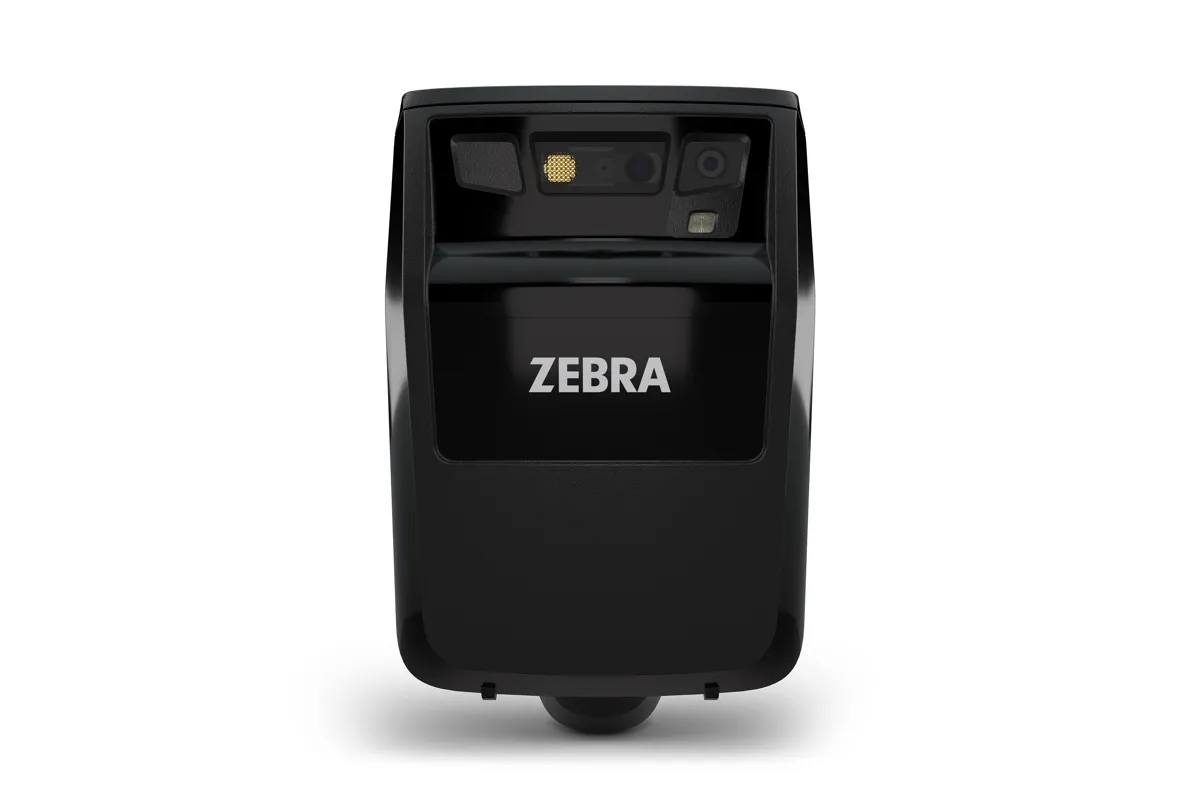

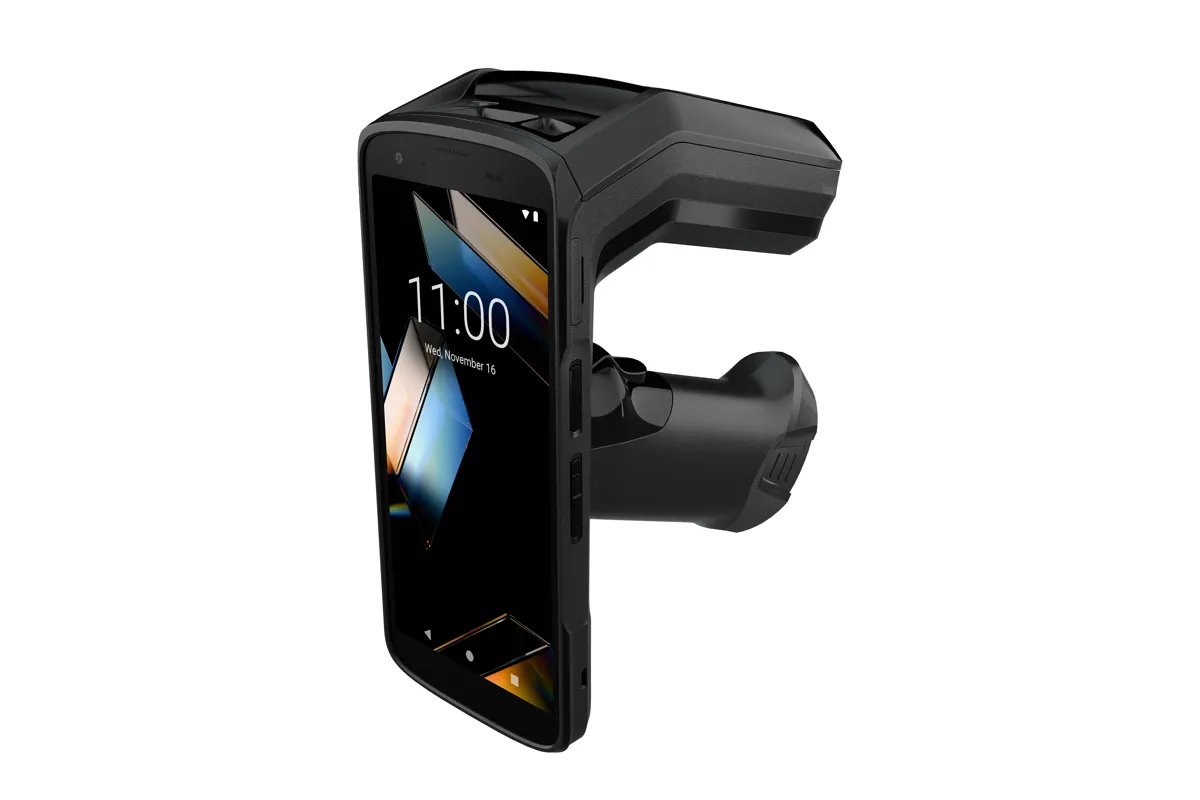

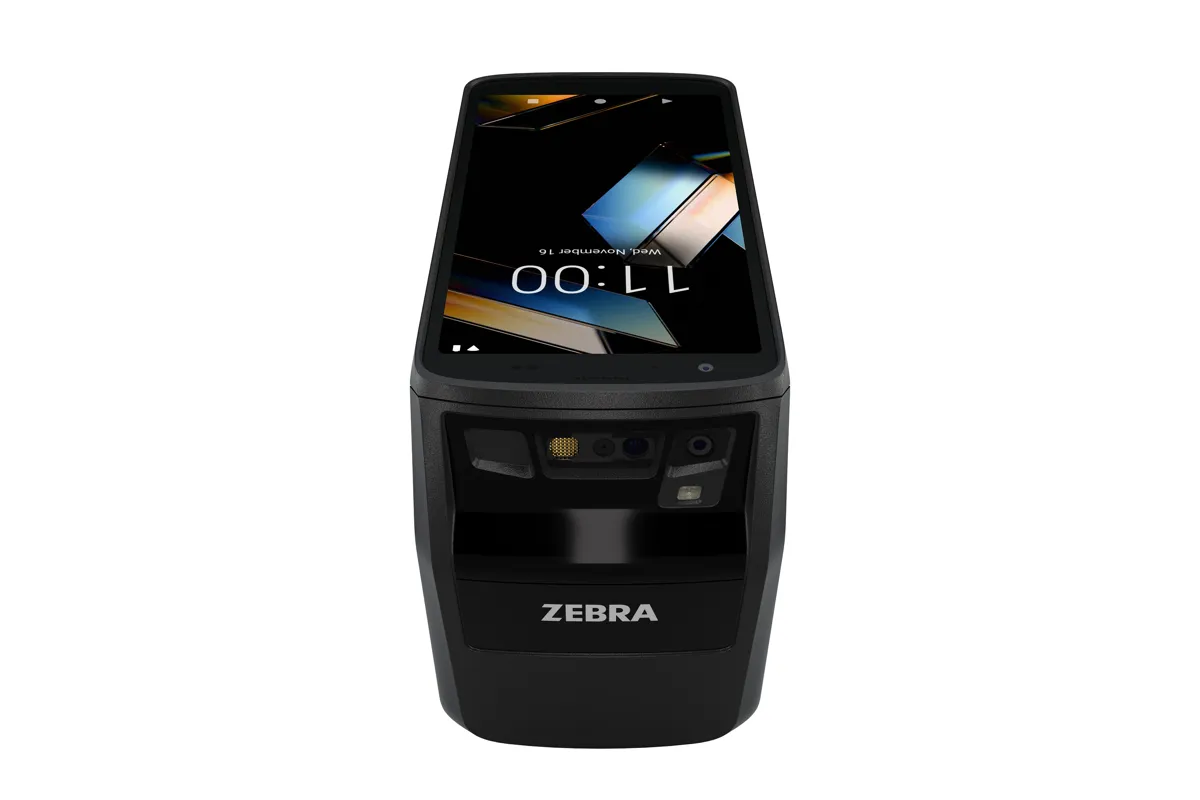

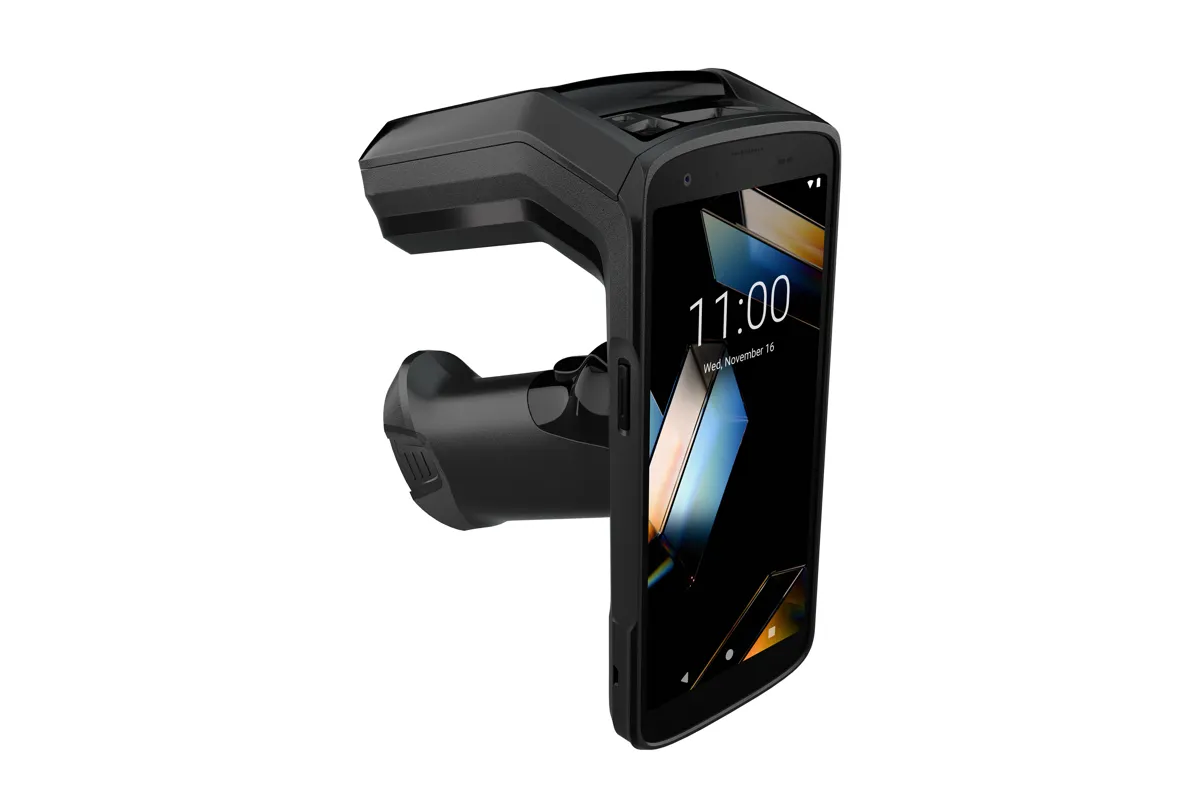

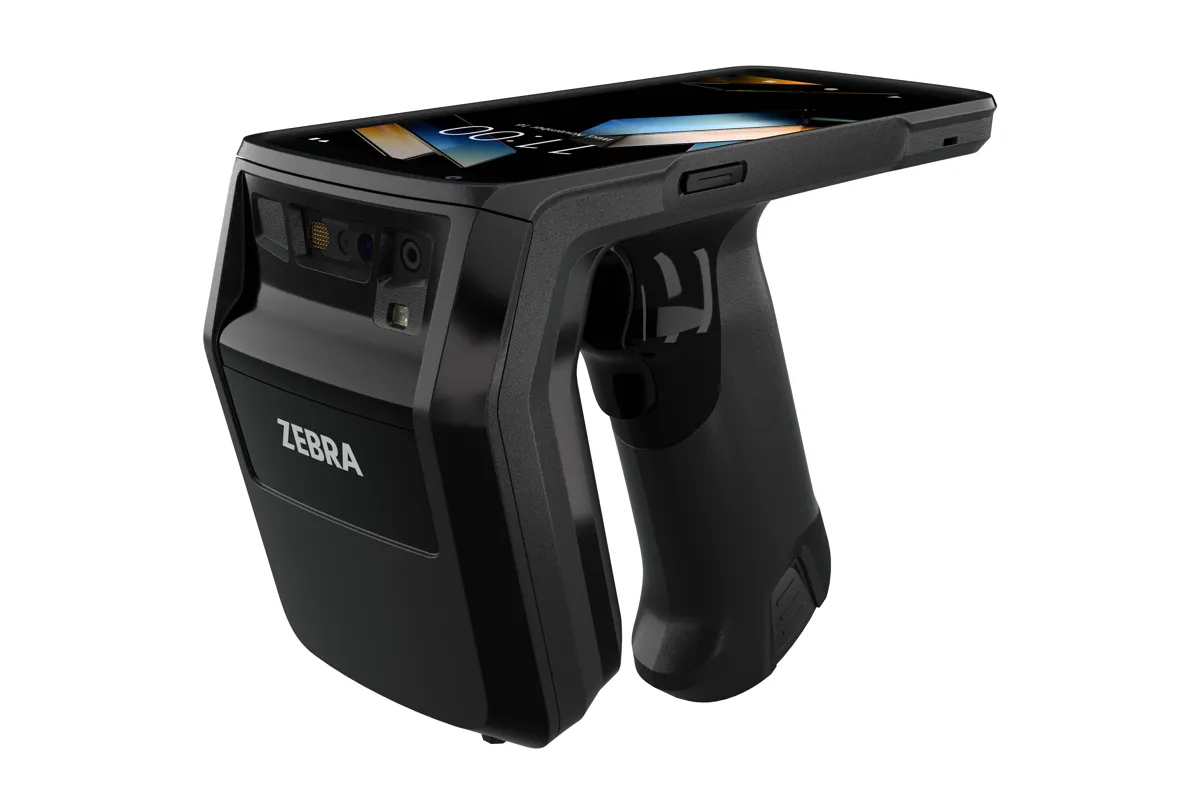

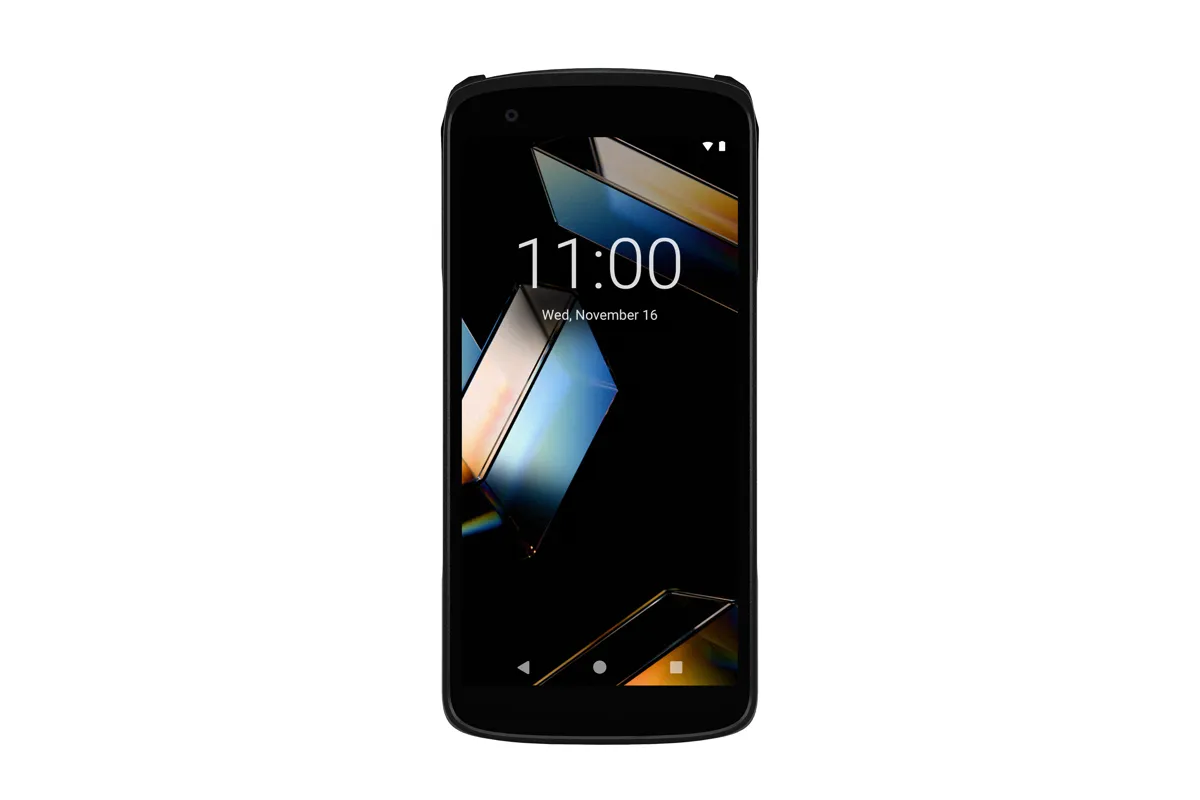

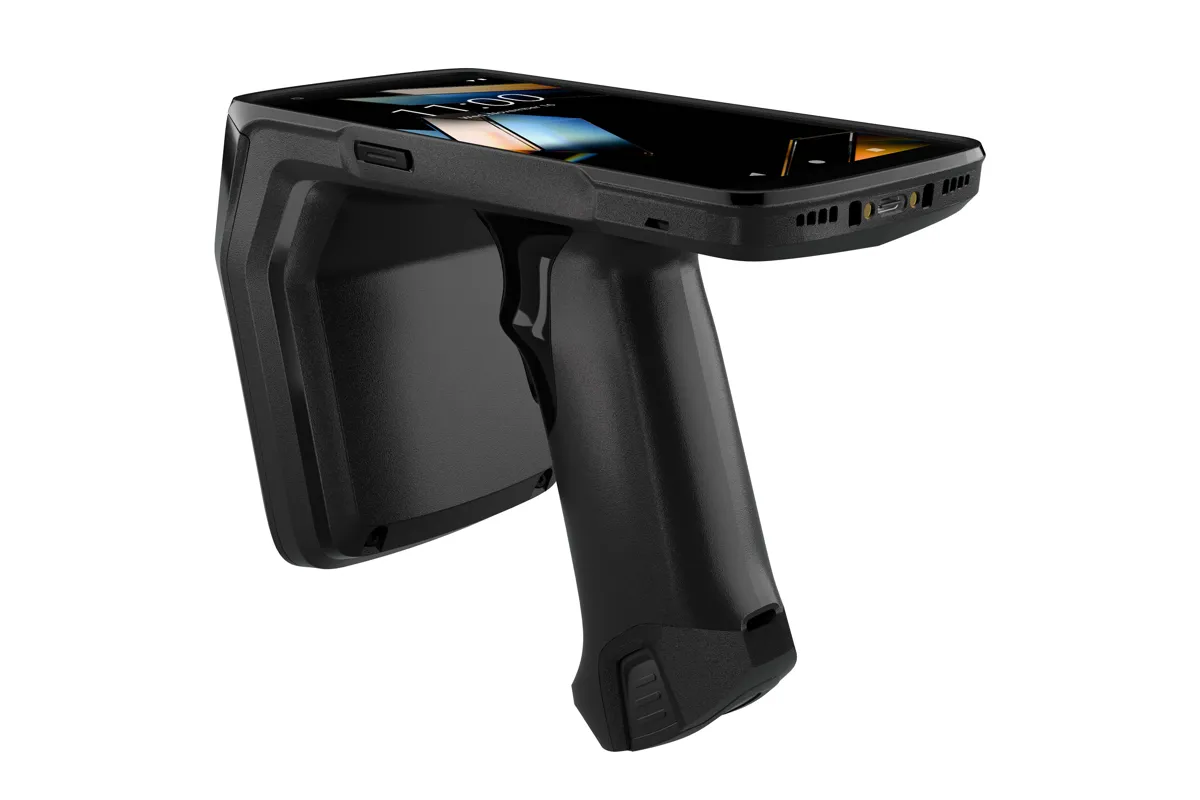

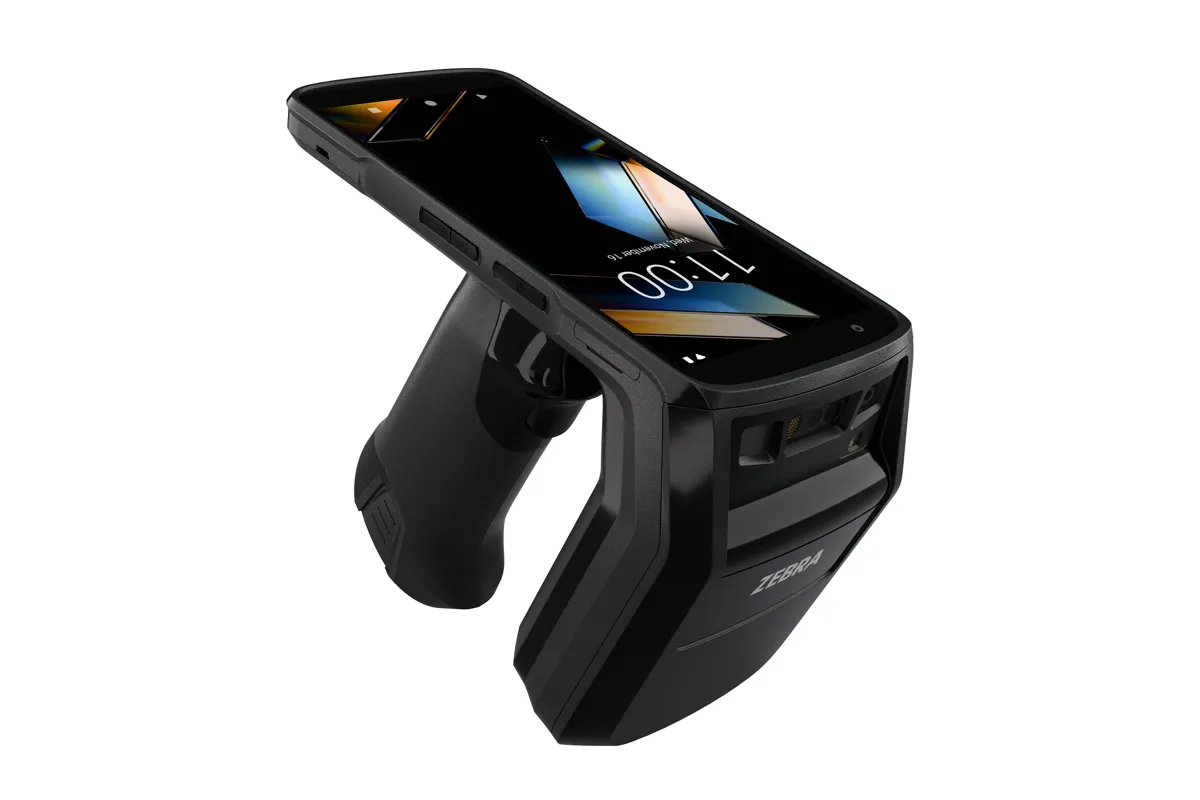

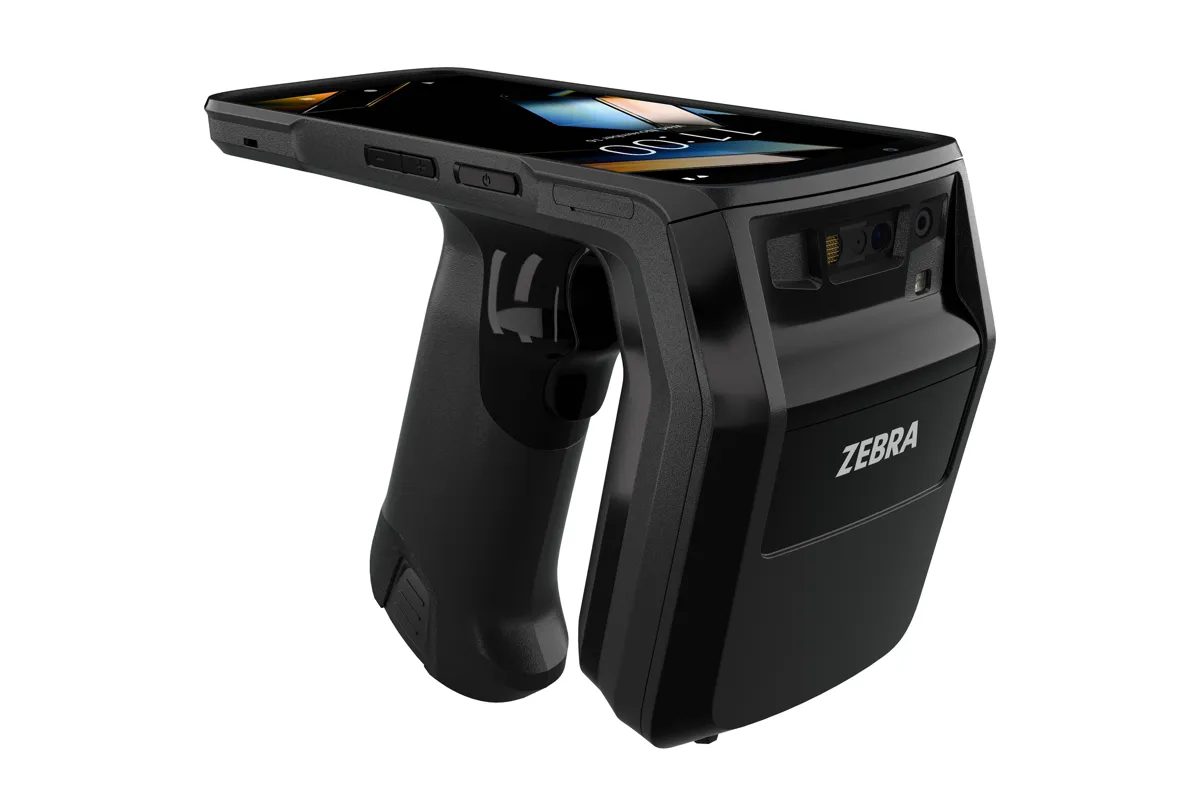

Zebra TC22R
The TC22R RFID Integrated Handheld Reader provides an integrated, lightweight, all-touch design that helps your associates keep track of assets and inventory for extended periods of time.
- Operating systemAndroid: for supported versions, visit www.zebra.com/android-versions
- Display6.0 in. color Full High Definition+ (1080 x 2160), LED backlight, 450 nits
- ScanningSE4710 1D/2D scan engine
- SealingIP65
- Drop5 ft. (1.5 m) multiple drops to concrete Multiple 5 ft./1.5 m drops to concrete
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android: for supported versions, visit www.zebra.com/android-versions
- Processor
- 5430 hexa-core 2.1 GHz
- RAM / storage options
- 6 GB RAM / 64 GB Flash
Display
- Display size
- 6.0 in. color Full High Definition+ (1080 x 2160), LED backlight, 450 nits
- Touch panel
- Multi-mode capacitive touch with bare or light gloved fingertip input
- Keyboard / keys
- On-screen keypad User-programmable button for barcode scanning (default), PTT or other use, volume up/down, power
Data capture
- Scan engines / capture options
- SE4710 1D/2D scan engine
- Scan range / decode distances
- Maximum: 80 ft. (24m)
- RFID
- EPC Class 1 Gen 2; EPC Gen 2 V2 Zebra Proprietary Radio Technology EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
- NFC
- NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support
- Cameras
- Forward-facing 16 MP camera, front-facing 5 MP camera
Power
- Charging / power
- User-removable, quick-release, rechargeable 7,000 mAh Li-Ion battery with PowerPrecision+ for real-time battery metrics
Connectivity
- Bluetooth
- Class 2, Bluetooth v5.2
- Ports / interfaces
- USB 3.1 (Bottom Type C), Super Speed (host and client), micro SD
Rugged
- IP / sealing
- IP65
- Drop specification
- 5 ft. (1.5 m) multiple drops to concrete Multiple 5 ft./1.5 m drops to concrete
- Tumble specification
- 500 cycles (1,000 drops, 1.6 ft./0.5 m) at room temperature
- Operating temperature
- 14°F to 122°F (-10°C to +50°C) 14° F to 122° F / -10° C to +50° C
- Storage temperature
- -40° F to 158° F / -40° C to +70° C
- Humidity
- 5–95% non-condensing
Size
- Weight
- 20.07 oz. / 569 g
- Dimensions
- 5.7 in. H x 3.3 in. W x 6.96 in. L 14.5 cm H x 8.4 cm W x 17.7 cm L
