Zebra · Handheld RFID reader

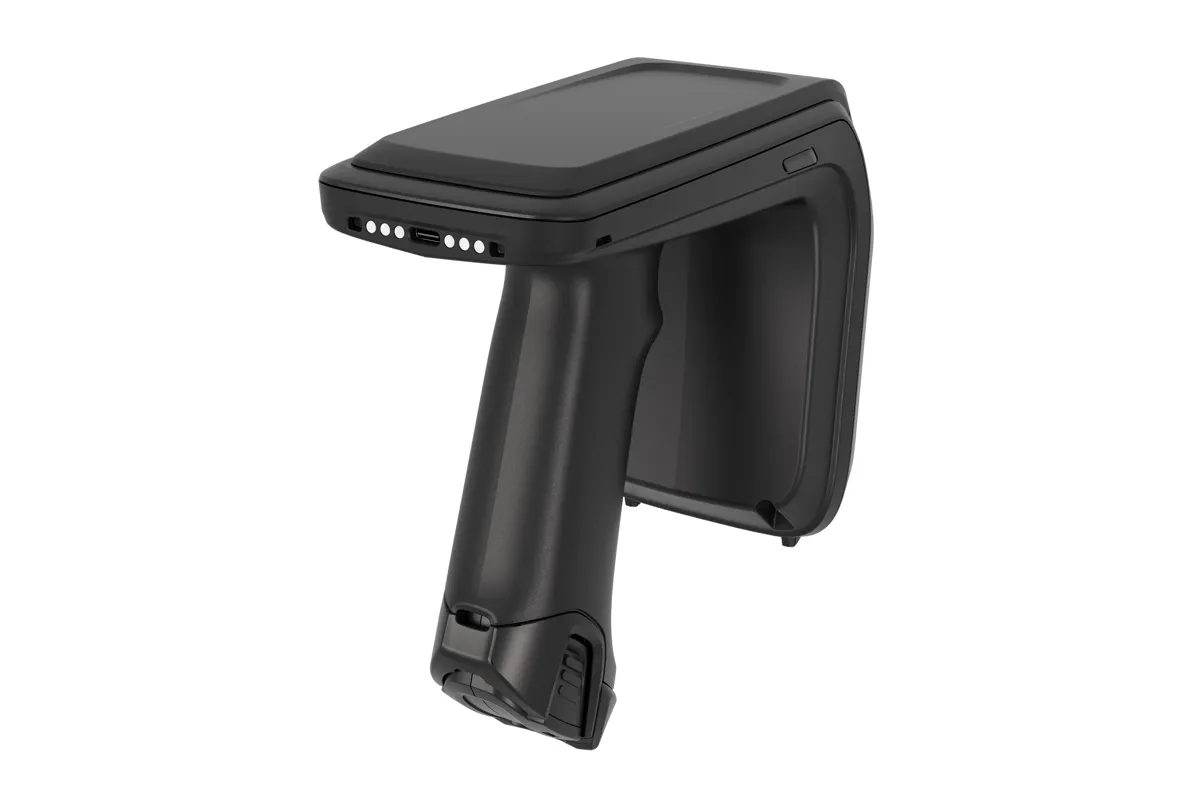

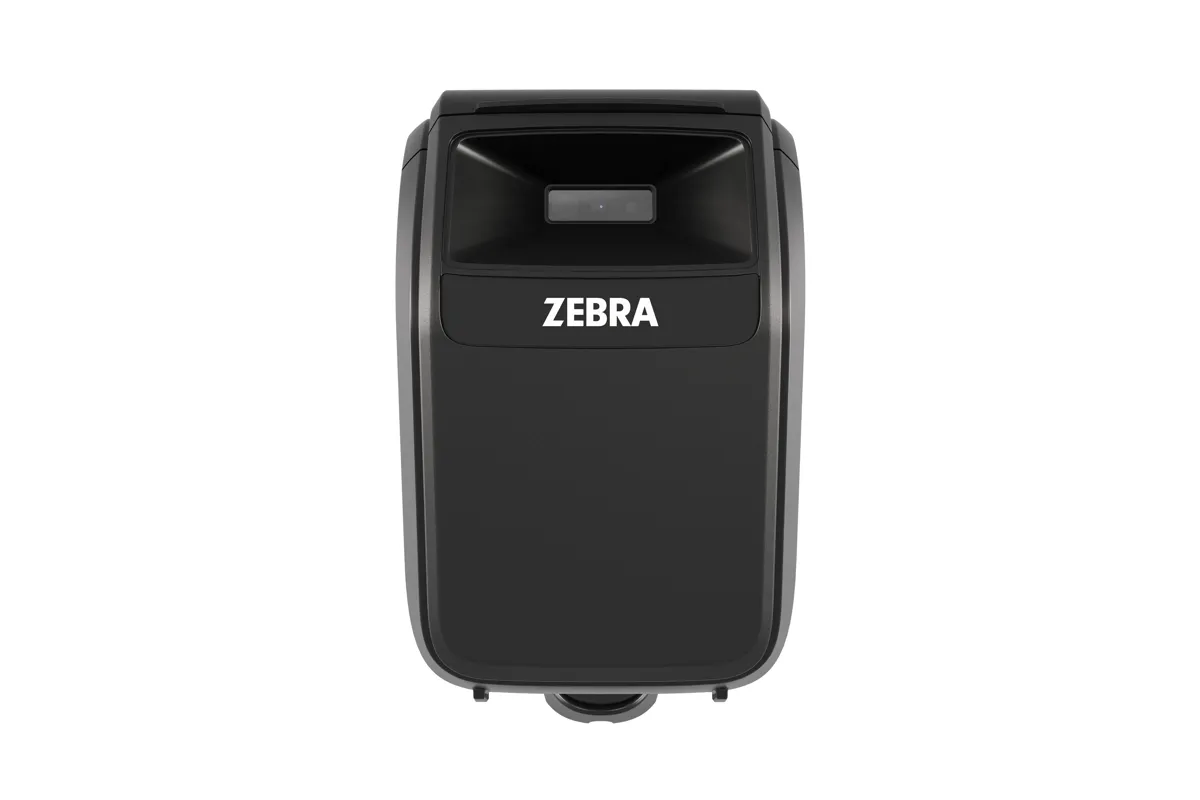

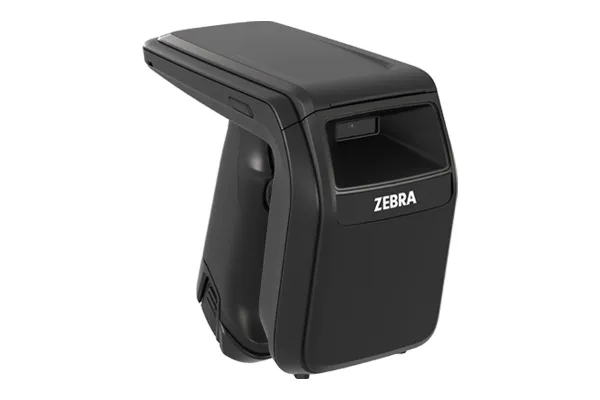

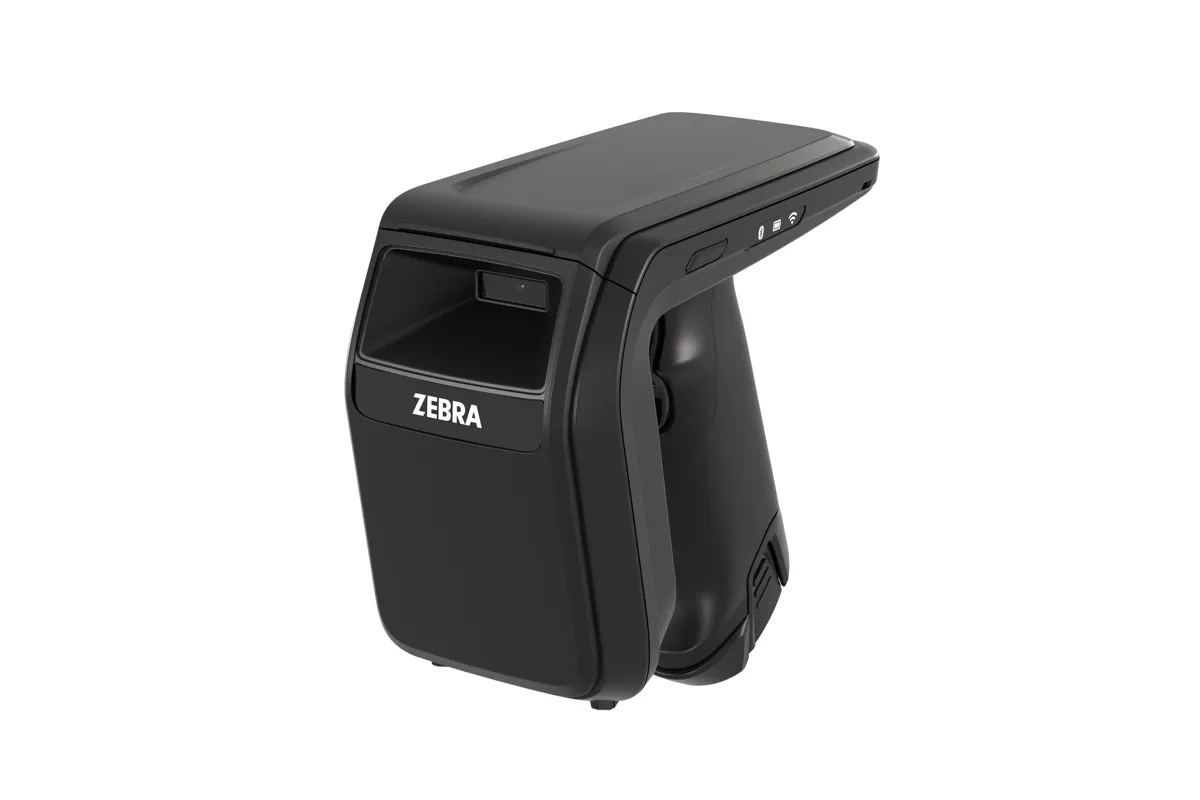

Zebra RFD40-M
The RFD40-M Premium Plus builds on the same great features as the RFD40 Premium Plus with an extended read range and also offers better support for 3rd party smartphones by providing a 1D/2D barcode imager, Bluetooth and NFC. Integrated Wi-Fi allows for OTA device management.
- SealingIP54
- Drop5 ft. (1.5 m) multiple drops to concrete Multiple 5 ft./1.5 m drops to concrete
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan range / decode distances
- Maximum: 80 ft (24 m)
- RFID
- EPC Class 1 Gen 2; EPC Gen2 V2 Zebra Proprietary Radio Technology EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
Power
- Charging / power
- Quick-Release, PowerPrecision+ Li-Ion 7,000 mAh battery
Rugged
- IP / sealing
- IP54
- Drop specification
- 5 ft. (1.5 m) multiple drops to concrete Multiple 5 ft./1.5 m drops to concrete
- Tumble specification
- 500 cycles (1,000 hits, 1.6 ft./0.5 m) at room temperature
- Operating temperature
- 14°F to 122°F (-10°C to 50°C) 14°F to 122°F / -10°C to 50°C
- Storage temperature
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5–85% non-condensing
Size
- Weight
- ~19.6 oz./~556 grams
- Dimensions
- 6.14 in. H x 3.31 in. W x 6.89 in. L 15.6 cm H x 8.4 cm W x 17.5 cm L
