Zebra · Handheld RFID reader

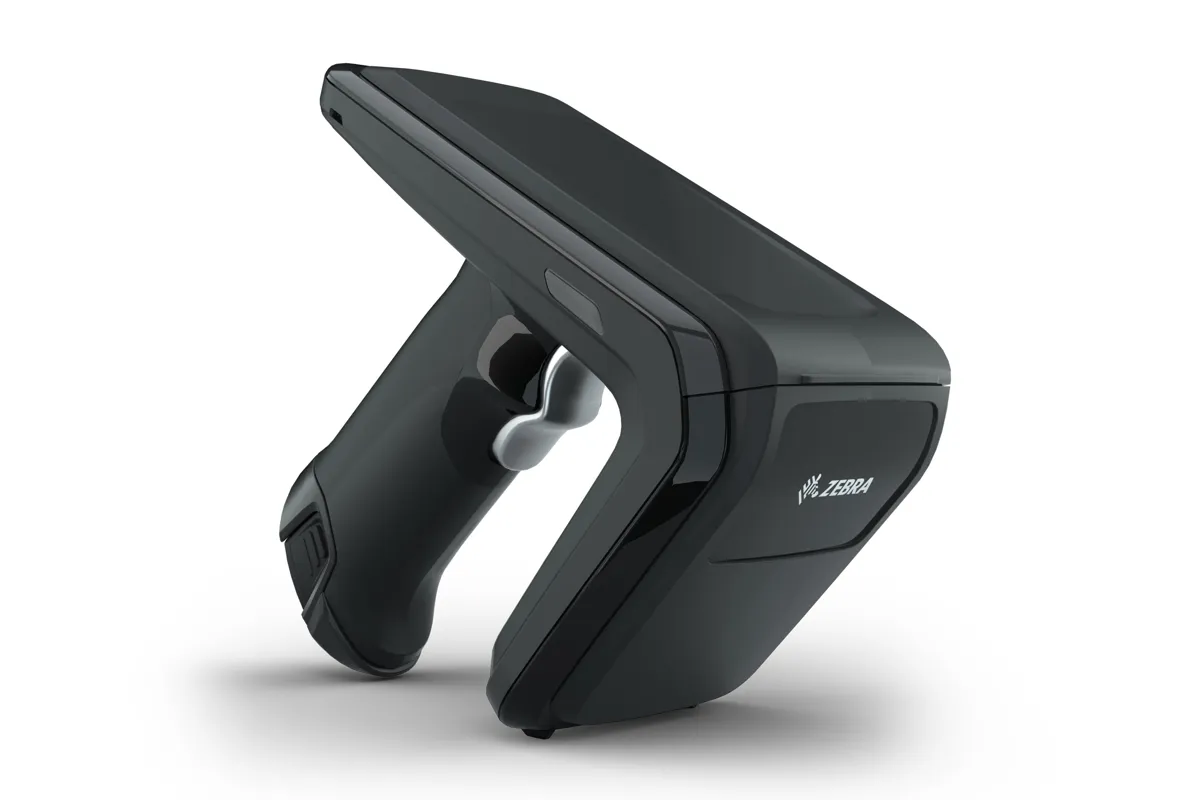

Zebra RFD40 Premium

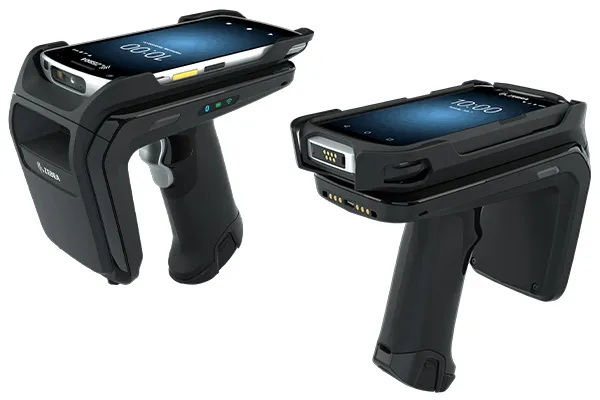

The RFD40 UHF RFID Premium Sled builds on the same great features of the Standard model and also includes integrated Wi-Fi 6, which allows for OTA device management. Bluetooth® 5.3 and NFC tap-to-pair make it easier than ever to connect to current and future Zebra mobile computers and 3rd-party smartphones.
- SealingIP54
- Drop5 ft. (1.5 m) multiple drops to concrete Multiple 5 ft. / 1.5 m drops to concrete
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan range / decode distances
- Maximum: 40 ft. (12 m)
- RFID
- EPC Class 1 Gen 2; EPC Gen2 V2 Zebra Proprietary Radio Technology EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
Power
- Charging / power
- Quick-release, PowerPrecision+ Li-Ion 7,000 mAh battery
Rugged
- IP / sealing
- IP54
- Drop specification
- 5 ft. (1.5 m) multiple drops to concrete Multiple 5 ft. / 1.5 m drops to concrete
- Tumble specification
- 500 cycles (1,000 drops, 1.6 ft. / 0.5 m) at room temperature
- Operating temperature
- 14°F to 122°F (-10°C to 50°C) -10°C to 50°C / 14°F to 122°F
- Storage temperature
- -40°C to 70°C / -40°F to 158°F
- Humidity
- 5–85% non-condensing
Size
- Weight
- RFD40 Premium : ~19.1 oz. / ~541 grams (sled with battery) RFD40 Premium Plus : ~19.6 oz. / ~556 grams
- Dimensions
- 5.94 in. H x 3.3 in. W x in. 6.5 in. L 15.1 cm H x 8.4 cm W x 16.65 cm L
Send a request
Get a quote for the RFD40 Premium
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
