Zebra · Handheld RFID reader

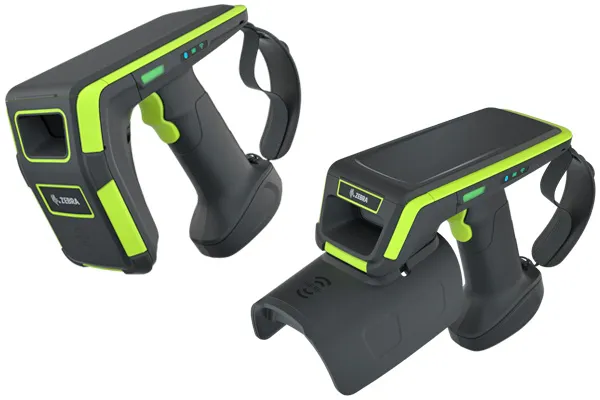

Zebra RFD90
View and download the technical specification sheet for the RFD90 Ultra-Rugged UHF RFID Sleds.
- SealingIP65 (spray) and IP67 (submersion) IP65, IP67
- DropMultiple 6 ft./1.8 m drops to concrete 6 ft. (1.8 m) multiple drops to concrete
Datasheet at Zebra Product page at Zebra
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan range / decode distances
- Nominal: 95 ft (~29 m)
- RFID
- EPC Class 1 Gen 2; EPC Gen2 V2 Zebra Proprietary Radio Technology EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
Power
- Charging / power
- Quick-Release, PowerPrecision+ Li-Ion 7,000 mAh battery
Rugged
- IP / sealing
- IP65 (spray) and IP67 (submersion) IP65, IP67
- Drop specification
- Multiple 6 ft./1.8 m drops to concrete 6 ft. (1.8 m) multiple drops to concrete
- Tumble specification
- 500 cycles (1,000 drops, 1.6 ft./0.5 m) at room temperature
- Operating temperature
- -4°F to 131°F/-20°C to 55°C -4°F to 131°F (-20°C to 55°C)
- Storage temperature
- -40°F to 158°F/-40°C to 70°C
- Humidity
- 5–85% non-condensing
Size
- Weight
- RFD9030 with SE4750MR : 25 oz./714 grams RFD9030 with SE4850 : 26.5 oz./751 grams RFD9090 with SE4750MR : 26.8 oz./759 grams RFD9090 with SE4850 : 28.2 oz./799 grams
- Dimensions
- RFD9030 : 7.4 x 3.2 x 6.8 in./189 x 83.4 x 173 mm RFD9090 : 9.8 x 3.8 x 6.8 in./248 x 96.3 x 173 mm
