Zebra · Fixed RFID reader

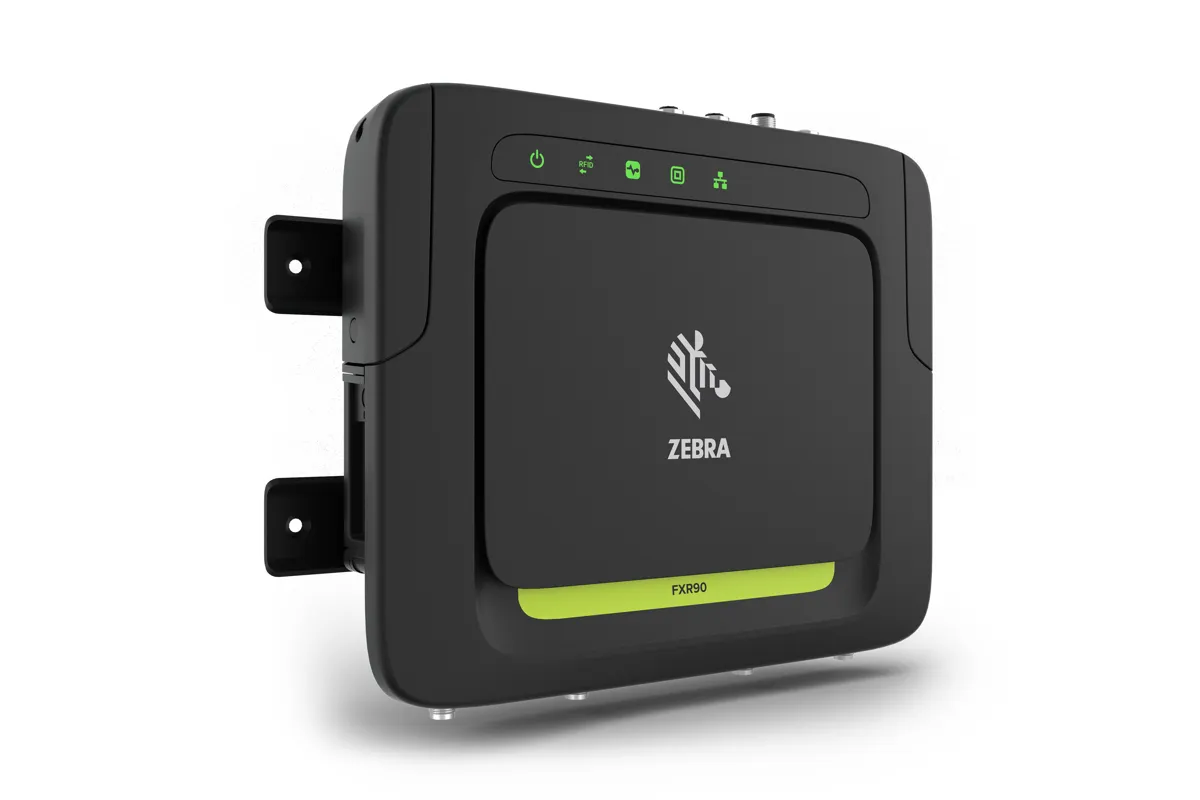

Zebra FXR90
Empower workers across a wide range of demanding industrial and outdoor environments to track assets more efficiently. With wireless backhaul options and integrated RFID antenna, these versatile readers provide high performance, greater connectivity and easier deployment in even the harshest conditions.
- Operating systemLinux
- SealingIP65 and IP67
Datasheet at Zebra Product page at Zebra
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Linux
- Processor
- NXP iMX8 Mini Quad Cortex-A53
- RAM / storage options
- 2GB LP DDR4 RAM/16GB eMMC Flash
Data capture
- RFID
- Zebra Proprietary Radio Technology ISO 18000-6C (EPC Class 1 Gen2V2)
Power
- Charging / power
- 24 VDC at 1 A (external power input/output), 12 VDC at 250 mA (external power input/output), 24 VDC at 250 mA (external output)
Connectivity
- Location / GPS
- GPS/GLONASS/BDS/Galileo/QZSS/GNSS
Rugged
- IP / sealing
- IP65 and IP67
- Operating temperature
- -40°F to 149°F (-40°C to 65°C) -40° F to 149° F/-40° C to 65° C
- Storage temperature
- -40° F to 158° F/-40° C to 70° C
- Humidity
- 5–95% non-condensing
Size
- Weight
- Reader only (with flush mount bracket) 5.95 lbs. / 2.70 kg Reader only (without flush mount bracket) 5.50 lbs. / 2.50 kg Integrated Antenna Model (with flush mount bracket) 6.75 lbs. / 3.07 kg Integrated antenna model (without flush mount bracket) 6.30 lbs. / 2.86 kg
- Dimensions
- Without integrated RFID antenna (with flush mount brackets) 13.2 X 10.0 X 2.2 (in); 33.5 X 25.4 X 5.5 (cm) Without integrated RFID antenna (without flush mount brackets) 11.5 X 10.0 X 2.0 (in); 29.1 X 25.4 X 5.2 (cm) With integrated RFID antenna (with flush mount brackets) 13.2 X 10.0 X 2.9 (in); 33.5 X 25.4 X 7.38 (cm) With integrated RFID antenna (without flush mount brackets) 11.5 X 10.0 X 2.8 (in); 29.1 X 25.4 X 7.08 (cm)
