Zebra · Fixed RFID reader

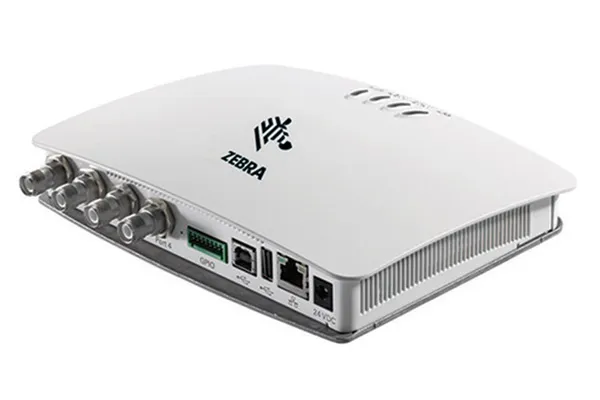

Zebra FX7500
View and download the technical specification sheet for the FX7500 Fixed RFID Reader.
- Operating systemLinux
Datasheet at Zebra Product page at Zebra
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Linux
- Processor
- Texas Instruments AM3505 (600 Mhz)
- RAM / storage options
- Flash 512 MB; DRAM 256 MB
Data capture
- RFID
- EPCglobal UHF Class 1 Gen2, ISO 18000-6C
Power
- Charging / power
- POE, POE+ or +24V DC (UL Approved) 12V-48VDC operation can be supported
Rugged
- Operating temperature
- -4° to +131° F/-20° to +55° C -4°F to 131°F (-20°C to 55°C)
- Storage temperature
- -40° to +158° F/-40° to +70° C
- Humidity
- 5-95% non-condensing
Size
- Weight
- 1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)
- Dimensions
- 7.7 in. L x 5.9 in. W x 1.7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D)
