Zebra · Fixed RFID reader

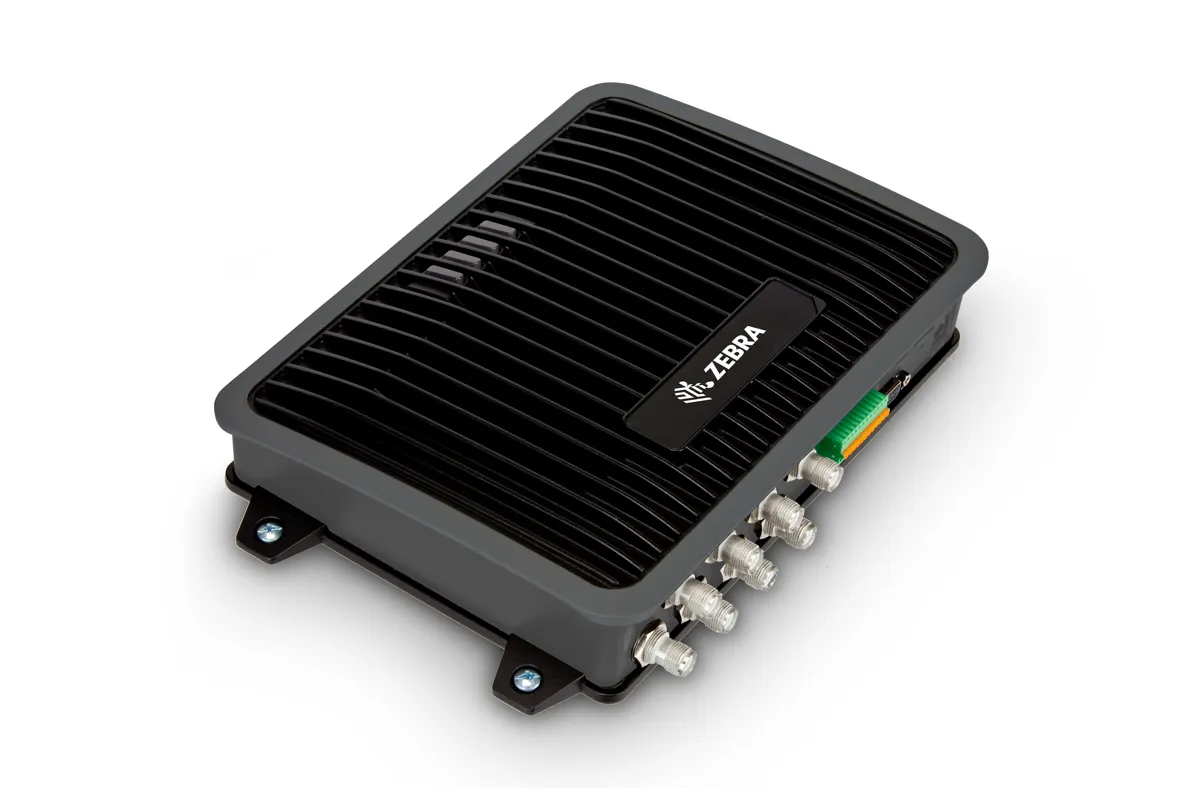

Zebra FX9600
View and download the technical specification sheet for the FX9600 Fixed UHF RFID Reader.
- Operating systemLinux
- SealingIP53
Datasheet at Zebra Product page at Zebra
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Linux
- Processor
- Texas Instruments AM3505 (600 MHz)
- RAM / storage options
- Flash 512 MB; DRAM 256 MB
Data capture
- RFID
- ISO 18000-63 (EPC Class 1 Gen 2 V2)
Power
- Charging / power
- POE (802.3af) POE+ (802.3at) +24V DC (UL Approved) 24 V (external power), 36-57 VDC (external power)
Rugged
- IP / sealing
- IP53
- Operating temperature
- -4° to +131° F/-20° to +55° C -4°F to 131°F (-20°C to 55°C)
- Storage temperature
- -40° to +158° F/-40° to +70° C
- Humidity
- 5-95% non-condensing
Size
- Weight
- Approx. 4.4 lbs/2.13 kg
- Dimensions
- 10.75 in. L x 7.25 in. W x 2.0 in. D 27.3 cm L x 18.4 cm W x 5.0 cm D
