TSL · RFID reader

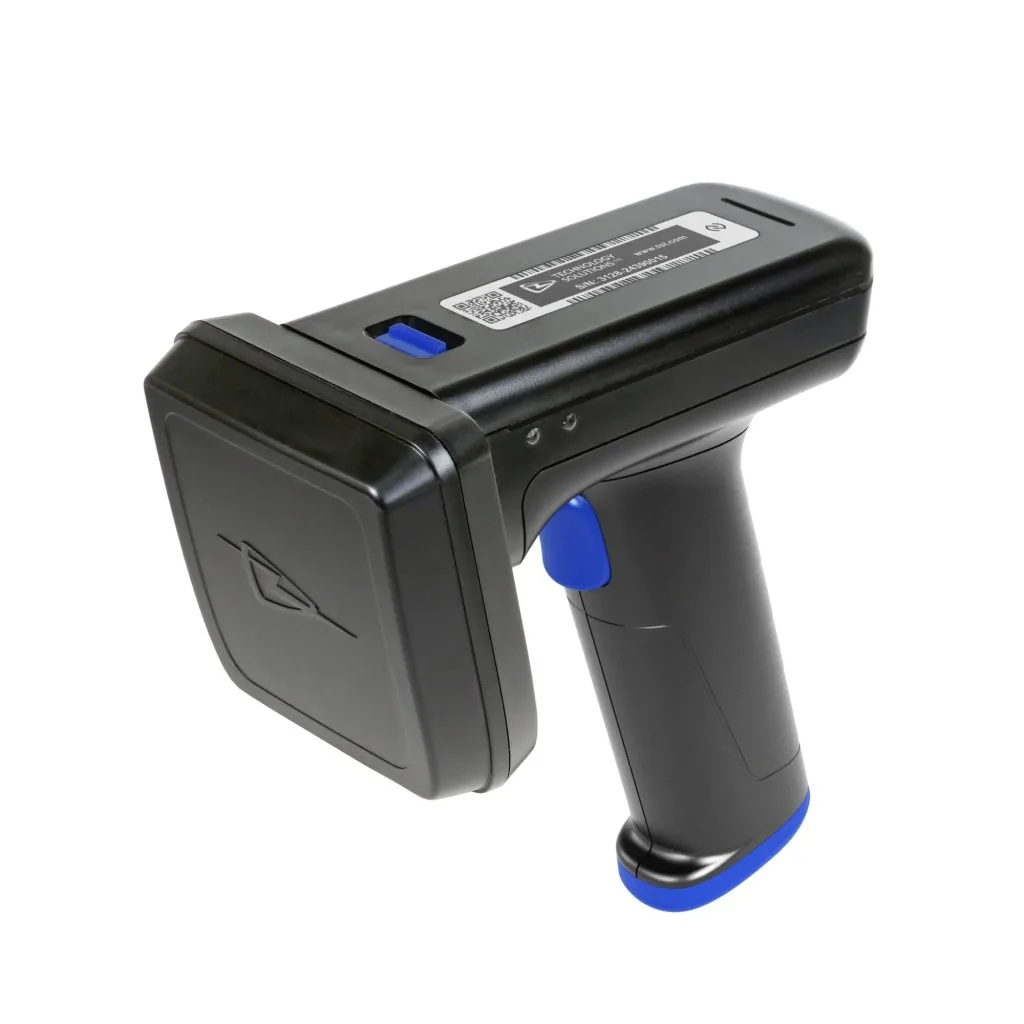

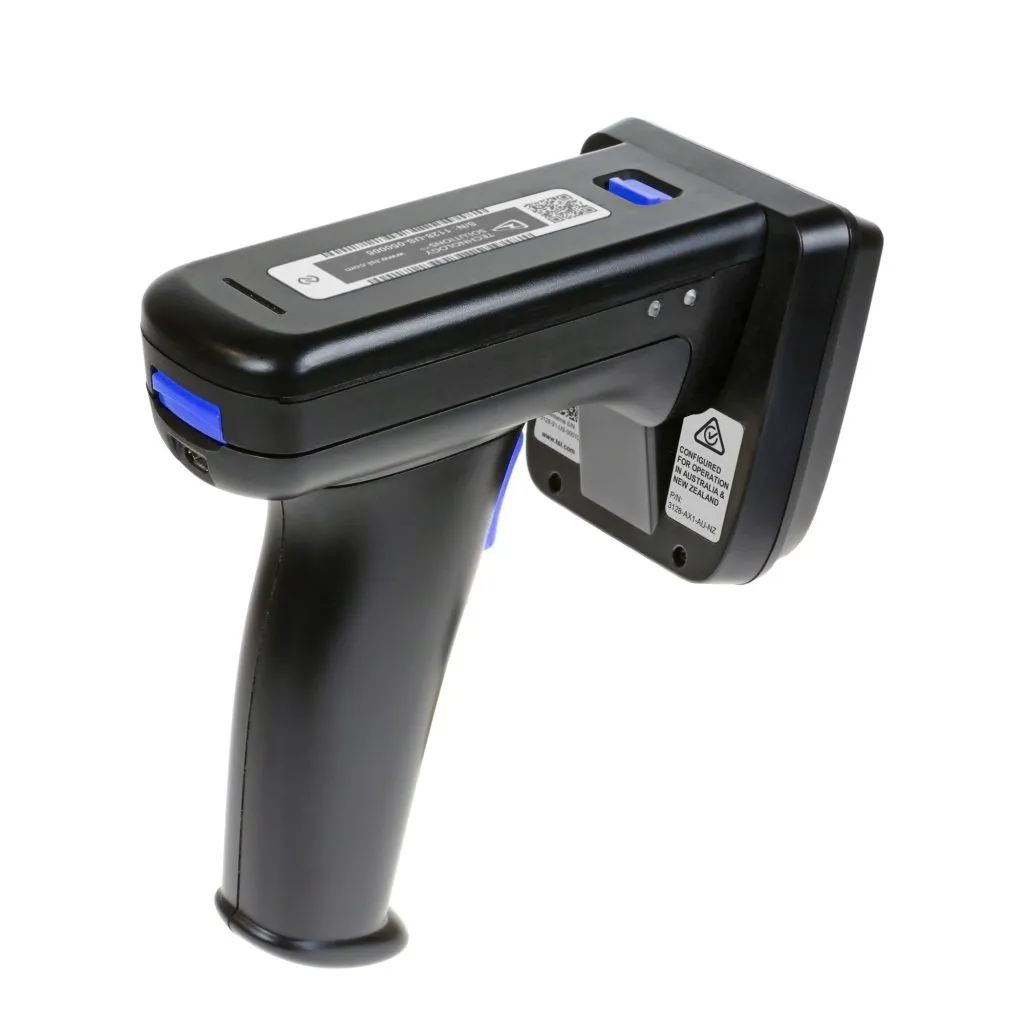

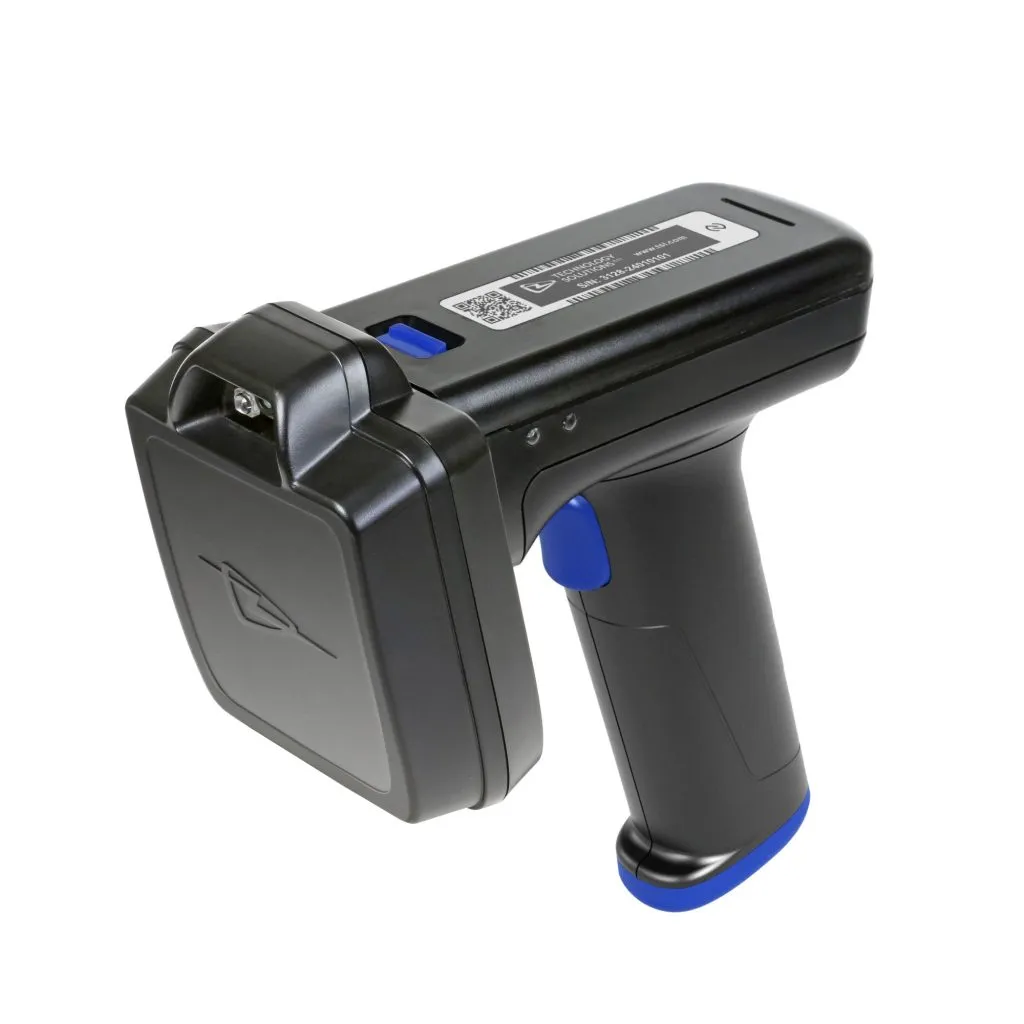

TSL 3128 Bluetooth® UHF RFID RAIN Reader
3128 is an entry-level UHF RFID Reader that leverages TSL’s extensive software environment and the latest innovations of the 31xx series at the right price. A worthy successor of 1128, it provides an enhanced user experience thanks to:
- ScanningOptional 2D Barcode
- SealingIP54.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- RAM / storage options
- Optional Micro SD card (maximum 256GB capacity supported) – separate purchase from alternative supplier.
Data capture
- Scan engines / capture options
- Optional 2D Barcode
- RFID
- TSL custom module with embedded Impinj E510. EPC Class 1 Gen 2 v2
Power
- Charging / power
- Rechargeable 25.4Wh, 7.3V Lithium Polymer battery pack. Up to 29 dBm (region dependent) Moto G (3rd gen) Mount 1128-MNT-MOTO-G-GEN3
Connectivity
- Bluetooth
- Bluetooth® v4.2 compliant (v5.1 compatible)
Rugged
- IP / sealing
- IP54.
- Tumble specification
- 500 0.5 metre tumbles at room temperature (1,000 cycles).
- Operating temperature
- -10°C to 40°C (14°F to 104°F).
- Storage temperature
- Less than 1 month at -20°C to +45°C (-4°F to 113°F). Less than 6 months at -20°C to +35°C (-4°F to 95°F).
- Humidity
- 5% to 85% non-condensing.
Size
- Weight
- 445 g (including Power Handle).
- Dimensions
- 17.2 x 7.7 x 15.0 cm
Software & service
- Warranty
- The TSL 3128 Reader is warranted against manufacturing defects
Send a request
Get a quote for the 3128 Bluetooth® UHF RFID RAIN Reader
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
