TSL · RFID reader

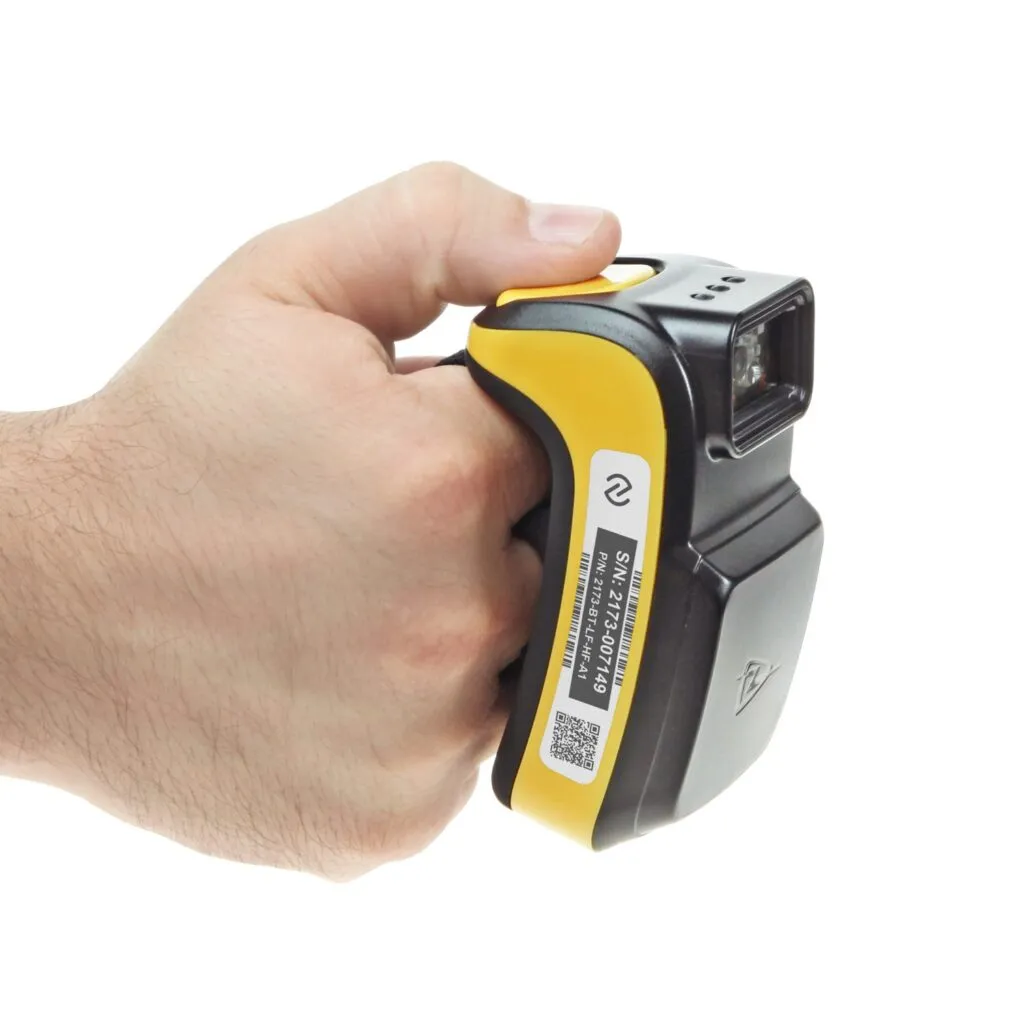

TSL 2173 Bluetooth® Wearable LF/HF & NFC RFID Reader
The 2173 Bluetooth® Wearable UHF RFID Reader reads and writes EPC C1G2 UHF RFID transponders (RAIN RFID) in a compact, high performance form factor.
- ScanningIntegrated 2D imaging engine Optional 2D Barcode
- SealingIP54.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- RAM / storage options
- Supports up to 32 GB Micro SD/SDHC card.
Data capture
- Scan engines / capture options
- Integrated 2D imaging engine Optional 2D Barcode
- RFID
- ISO 14443A, ISO 14443B, ISO 18092, ECMA-340 (NFC), ISO 15693, ISO 11784, ISO 11785 plus many other 125 kHz and 134.2 kHz standards
Power
- Charging / power
- Removable, rechargeable 3.7 volt Lithium Polymer 1200 mAh battery pack, 4.5 watt hrs.
Connectivity
- Bluetooth
- Bluetooth ® Version 4.2.
Rugged
- IP / sealing
- IP54.
- Tumble specification
- 500 0.5 metre tumbles at room temperature (1,000 cycles).
- Operating temperature
- -10°C to 40°C (14°F to 104°F).
- Storage temperature
- Less than 1 month at at -20 to +60°C (-4°F to 140°F). Less than 3 months at -20°C to +45°C (-4°F to 113°F). Less than 1 year at -20°C to +30°C (-4°F to 86°F).
- Humidity
- 5% to 85% non-condensing.
Size
- Dimensions
- 10.2 cm x 5.5 cm x 5.6 cm.
Software & service
- Warranty
- The TSL 2173 reader is warranted against manufacturing defects
