TSL · RFID reader

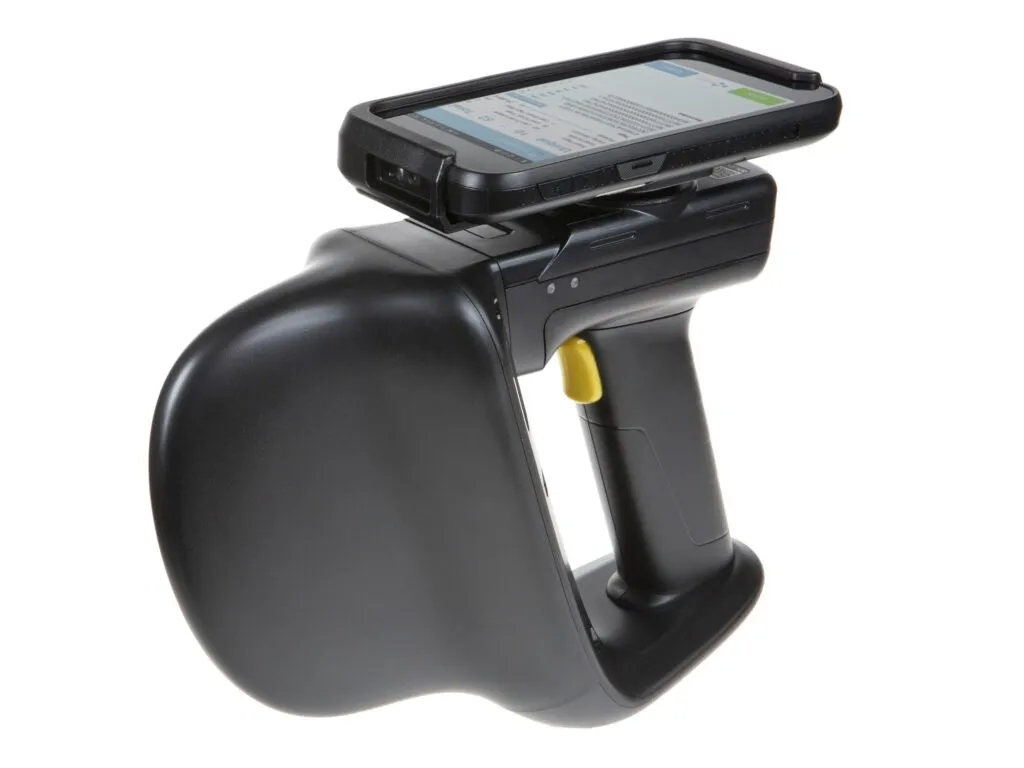

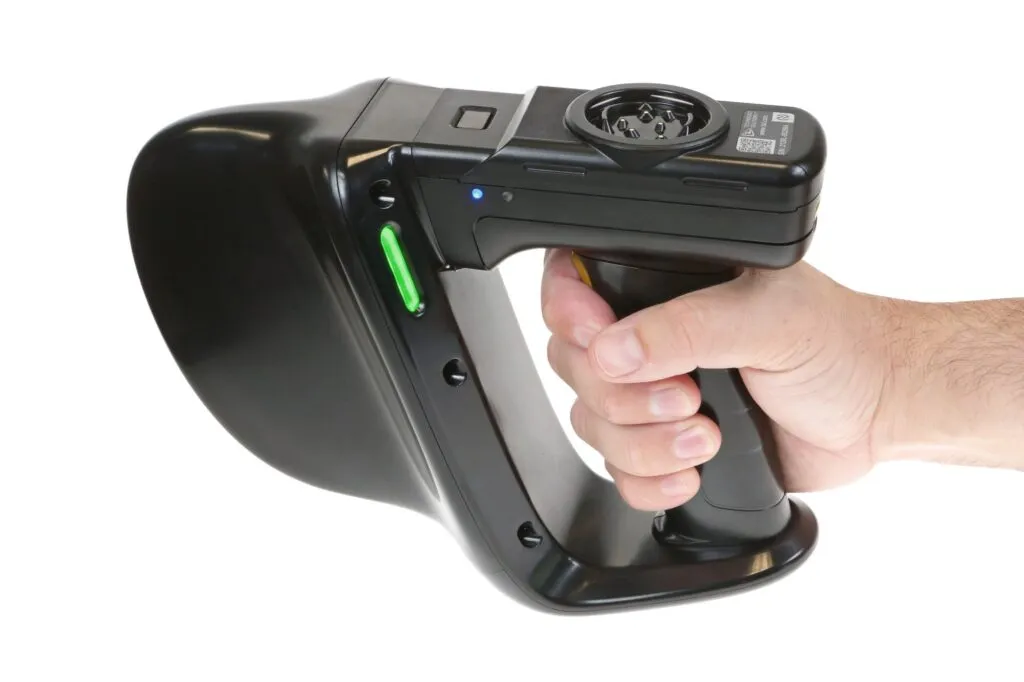

TSL 2128L Bluetooth® UHF RFID RAIN Reader with High Gain Linear Antenna
Outstanding Mobile UHF RFID (RAIN RFID) Read and Write Performance via a High Gain Linear antenna for up to 15m (49ft) of read range.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- RAM / storage options
- Embedded 16GB* NAND storage card – store up to 250 million date and time stamped EPCs * For units manufactured in August 2020 onwards. Units sold before this time will have 8GB of storage.
Data capture
- RFID
- TSL ® custom module. EPC Class 1 Gen 2.
Power
- Charging / power
- Integrated 3.6V, 6700mAh, 24Wh Lithium Polymer pack. Up to 28 dBm (region dependent)
Connectivity
- Bluetooth
- Bluetooth ® Version 4.2. Any Bluetooth Host5 supporting the Serial Port Range7:
Rugged
- Tumble specification
- 500 0.5 metre tumbles at room temperature (1,000 cycles).
- Operating temperature
- -10°C to 50°C (14°F to 122°F).
- Storage temperature
- Less than 1 month at -20°C to +45°C (-4°F to 113°F). Less than 6 months at -20°C to +35°C (-4°F to 95°F).
- Humidity
- 5% to 85% non-condensing.
Size
- Weight
- 700 g (including integrated battery).
- Dimensions
- 240 x 88 x 180 mm (LxWxH).
Software & service
- Warranty
- The TSL 2128L reader is warranted against manufacturing defects
Send a request
Get a quote for the 2128L Bluetooth® UHF RFID RAIN Reader with High Gain Linear Antenna
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
