TSL · RFID reader

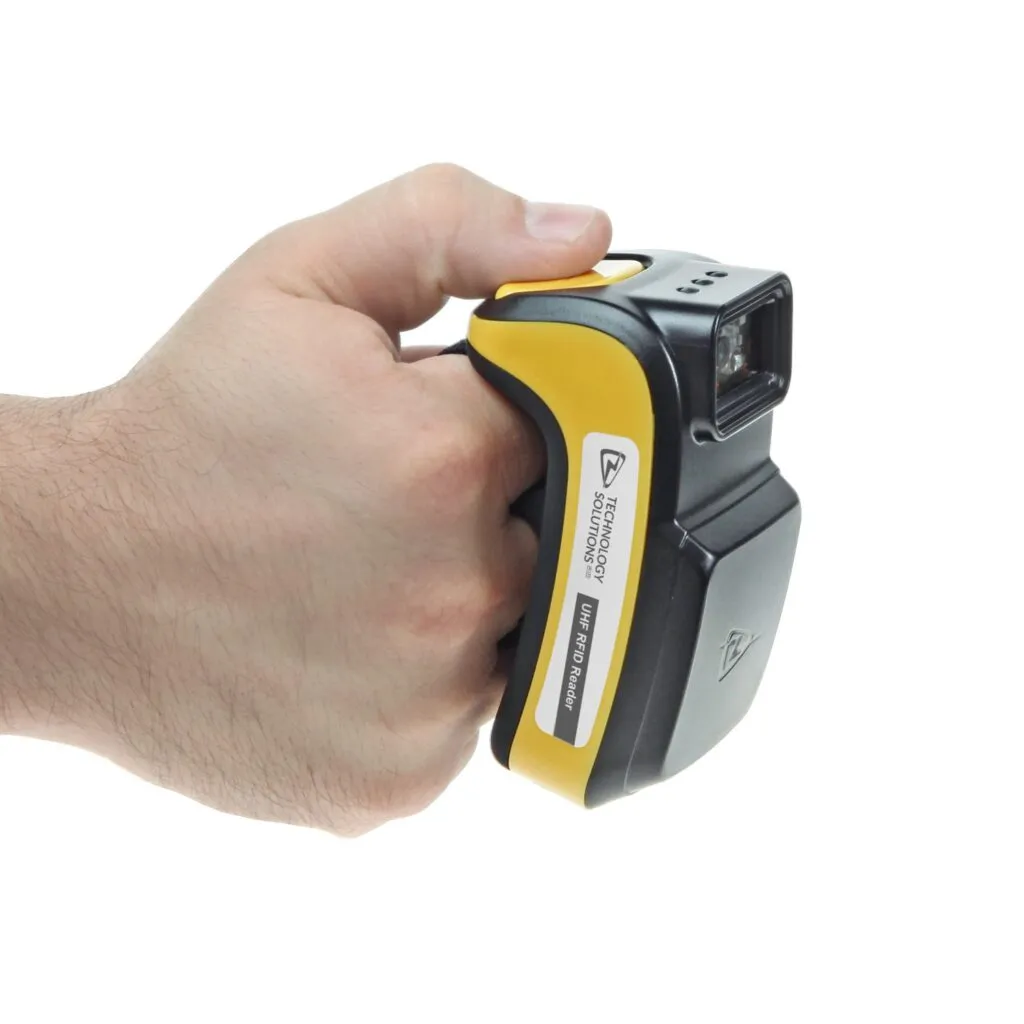

TSL 1153 Bluetooth® Wearable UHF RFID RAIN Reader
TSL's Wearable Bluetooth RFID Reader is designed to read and write to EPC Class 1 Gen 2 UHF transponders and communicate via Bluetooth® wireless technology
- ScanningOptional 2D
- SealingIP54.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- RAM / storage options
- Optional Micro SD card (maximum 32GB capacity supported). Up to 500 million date and time stamped EPCs can be stored on a 32GB Micro SD card (separate purchase from alternative supplier).
Data capture
- Scan engines / capture options
- Optional 2D
- RFID
- ST ST25RU3993 based. EPC Class 1 Gen 2.
Power
- Charging / power
- Removable, rechargeable 3.7V, 1200mAh, 4.5Wh Lithium Polymer battery pack. Up to 25 dBm (region dependent)
Connectivity
- Bluetooth
- Bluetooth ® Version 2.1.
Rugged
- IP / sealing
- IP54.
- Tumble specification
- 500 0.5 metre tumbles at room temperature (1,000 cycles).
- Operating temperature
- -10°C to 40°C (14°F to 104°F).
- Storage temperature
- Less than 1 month at at -20 to +60°C (-4°F to 140°F). Less than 3 months at -20°C to +45°C (-4°F to 113°F). Less than 1 year at -20°C to +30°C (-4°F to 86°F).
- Humidity
- 5% to 85% non-condensing.
Size
- Dimensions
- 10.2 cm x 5.5 cm x 5.6 cm.
Software & service
- Warranty
- The TSL 1153 reader is warranted against manufacturing defects for
