Impinj · RFID reader
Impinj Speedway Series
Impinj Speedway readers are high-performance RAIN RFID fixed readers that deliver quality and reliability necessary to ensure item visibility.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

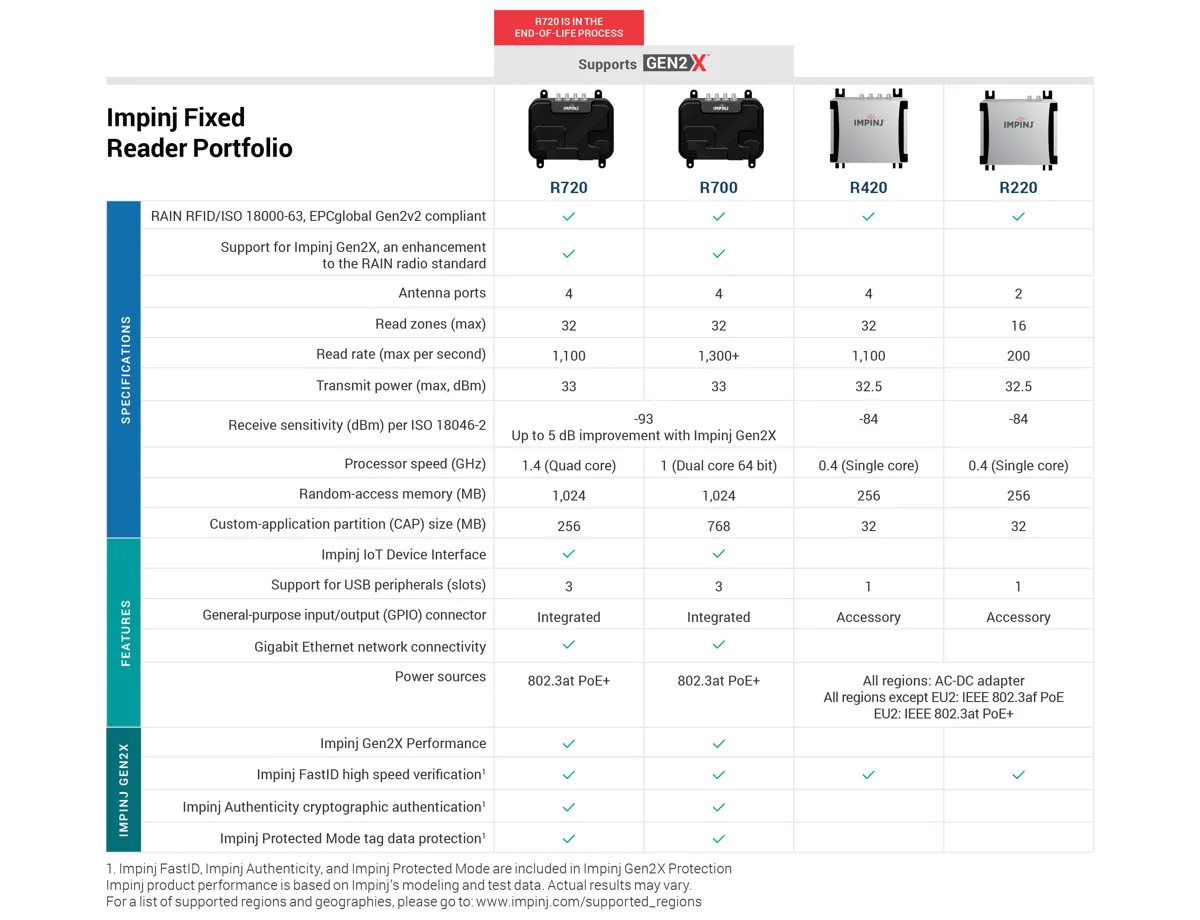

Specifications
Specifications
- Operating Frequencies *Refer to country-specific regulations for channel allocation within the band
- R420: FCC: 902-928 MHz EU1: 865-868 MHz EU2: 915-921 MHz GX1: 902-928 MHz GX2: 902-925 MHz GX3: 920-926 MHz JP2: 916-921 MHz | R220: FCC: 902-928 MHz EU1: 865-868 MHz GX1: 902-928 MHz GX2: 902-925 MHz
- *Refer to country-specific
- R420: EU1: 865-868 MHz | R220: EU1: 865-868 MHz
- regulations for channel
- R420: EU2: 915-921 MHz | R220: GX1: 902-928 MHz
- allocation within the band
- R420: GX1: 902-928 MHz | R220: GX2: 902-925 MHz
- Transmit Power (dBm max conducted) *Refer to regulations for country- specific limitations
- R420: FCC, GX1, GX2, GX3: 32.5 AC/31.5 PoE EU1: 31.5 AC/30.0 PoE EU2: 33.0 AC/33.0 PoE+ JP2: 30.0 AC/30.0 PoE | R220: FCC, GX1, GX2: 32.5 AC/31.5 PoE EU1: 31.5 AC/30.0 PoE
- Antenna Ports
- R420: 4 | R220: 2
- Maximum Read Rate
- R420: 1100 tags/s | R220: 200 tags/s
- Gen2 Reader Modes
- R420: 10 | R220: 5
- Antenna Hub Support
- R420: YES | R220: YES
- Read Zones (maximum)
- R420: 32 (with 4 hubs) | R220: 16 (with 2 hubs)
- Regulatory Certifications
- R420: www.impinj.com/supported_regions
