Impinj · RFID reader

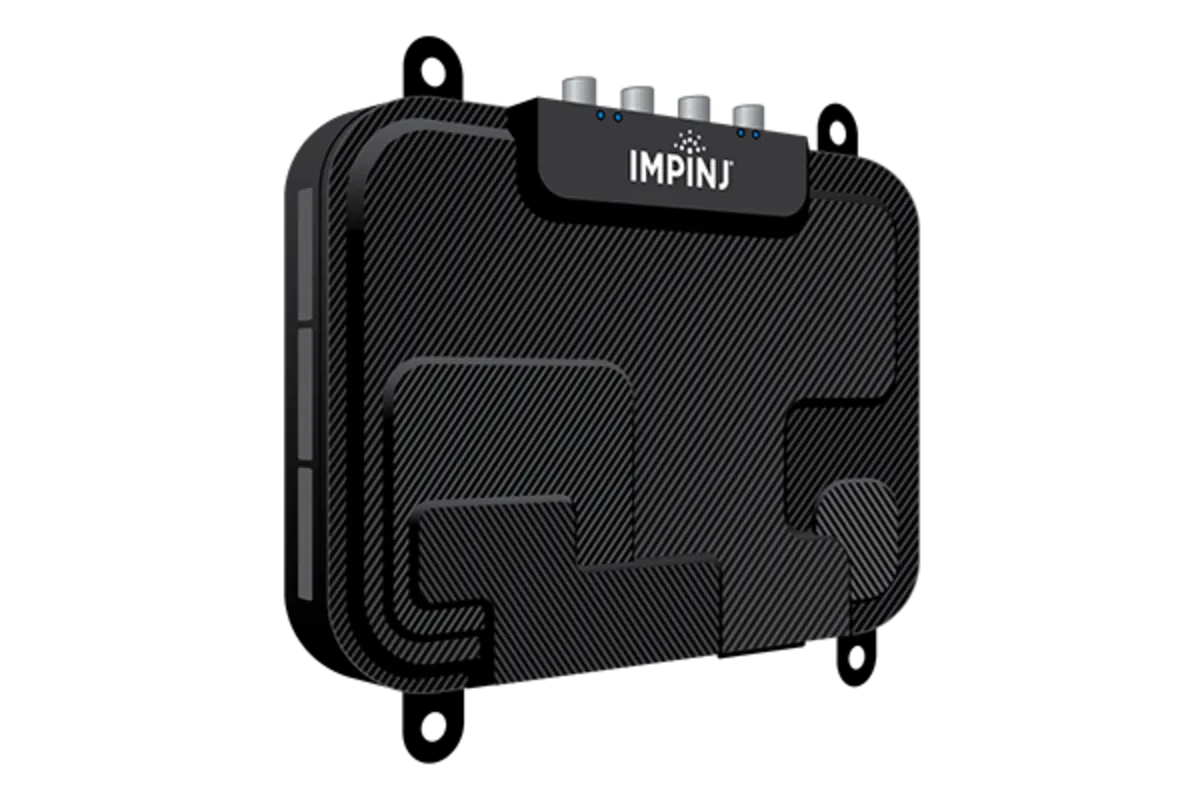

Impinj R700 Series
The Impinj R700 reader is designed to support global enterprise RAIN RFID deployments that need high performance and reliability.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

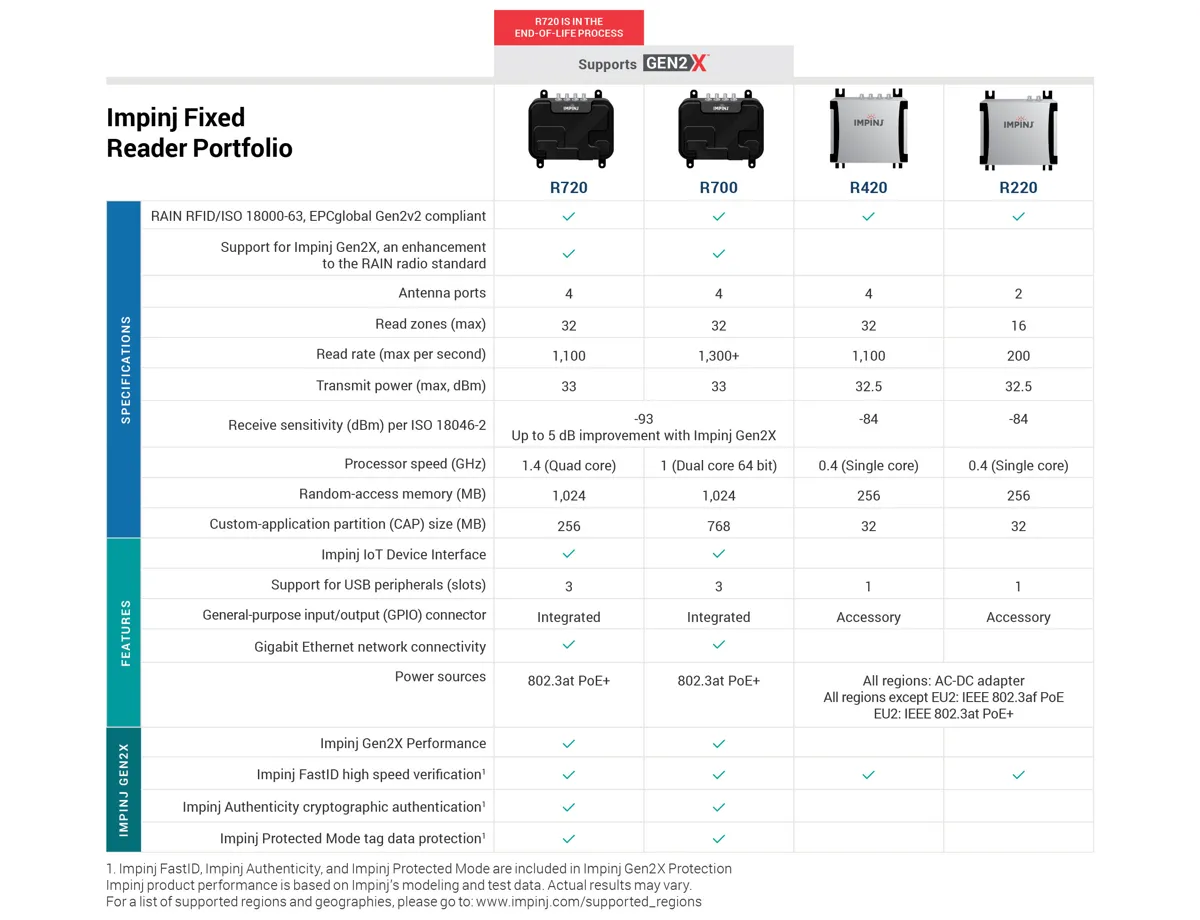

Specifications
Specifications
- Dimensions
- With mounting brackets 8.4 in. long x 7.4 in. wide x 1.2 in. deep (21.5 cm x 18.7 cm x 3.0 cm) Without brackets: 8.4 in. width x 5.9 in. depth x 1.2 in. height inch (21.4 x 14.9 x 3.0 cm)
- Charging / power
- PoE (802.3af), PoE+ (802.3at) with LLDP for power negotiation
- Air Interface Protocol
- EPCglobal UHF Gen2 v2 / ISO 18000-63 RFID
- Antenna Ports
- 4, Monostatic (RP-TNC)
- Frequency Range
- IPJ-R700-241 ETSI Reader 865 – 868 MHz, 915 – 921 MHz IPJ-R700-341 Global Reader: 902 – 928 MHz IPJ-R700-441 Japan Reader 916.7 to 920.9 MHz | IPJ-R720-243 ETSI Reader 865 – 868 MHz, 915 – 921 MHz IPJ-R720-343 Global Reader: 902 – 928 MHz IPJ-R720-443 Japan Reader: 916.7 to 920.9 MHz
- Transmit Power
- PoE+: 10 - 33 dBm max PoE: 10 - 30 dBm max | PoE+: 10 - 33 dBm max PoE: 10 - 20 dBm max
- Typical Receive Sensitivity
- -93 dBm CISC 90% PSR
- Processor
- Dual-Core 1 GHz ARM processor | Quad-Core 1.4 GHz ARM53 Processor
- RAM / storage options
- 1 GB Flash, 1 GB RAM
- Network Connectivity
- 10/100/1000 BASE-T Ethernet
- Device Connectivity
- 3 USB Type-A, 1 micro USB
- General Purpose I/O
- 2 in / 3 out
Send a request
Get a quote for the R700 Series
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
