FEIG · RFID reader

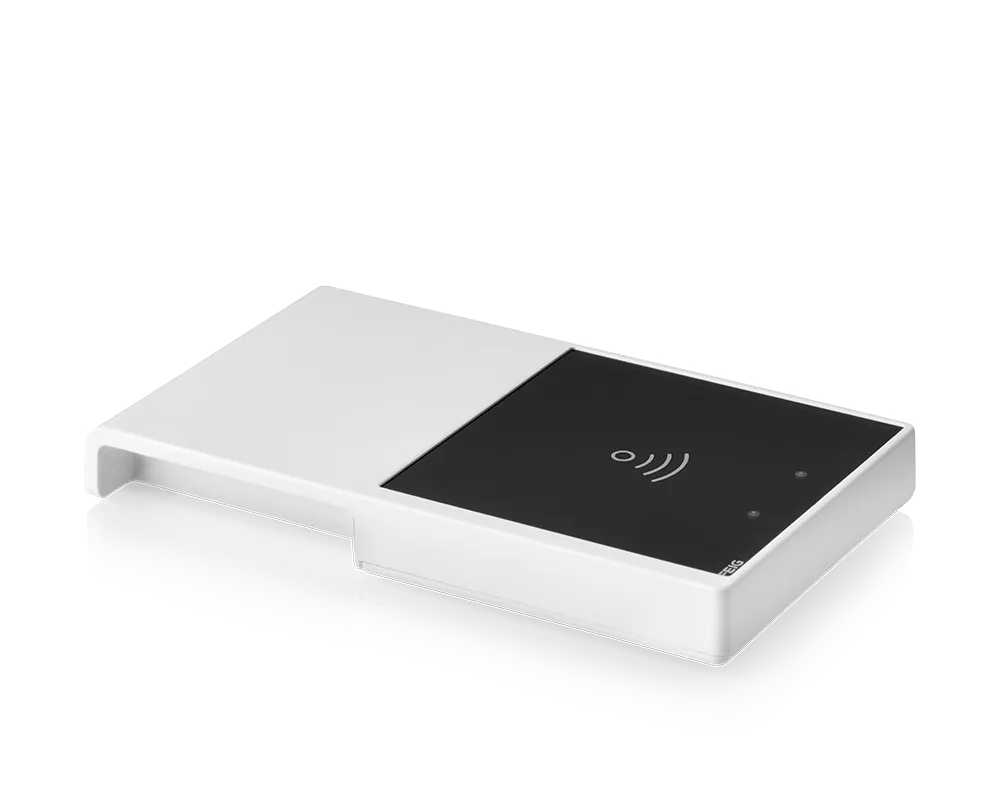

FEIG ISO14443 Desktop Reader with RS232
Desktop reader with USB or RS232 interface for use in the office or at the POS.
- SealingIP42
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 144 mm x 84 mm x 18 mm
- Weight
- approx. 260 g
- Housing
- Plastic (ASA) / Acrylic glass
- Color
- white / black
- IP / sealing
- IP42
- RFID Interface
- ISO 14443-A/-B (106 ... 848 kBit/s)
- Operating frequency
- 13.56 MHz
- Transmitting power
- 100 mW
- MTBF
- 500,000 h
- Supply voltage
- 5 V DC ± 10 % ripple
- Current consumption
- max. 140 mA
- Antenna
- integrated
- Ports / interfaces
- RS232 (4,800 up to 230,400 Baud)
- Indicators, optical
- 2 LED (green / blue)
- Contact interface
- ISO 7816
- Operation modes
- Polling-Mode, Scan-Mode
- Supported transponders
- mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare / NTAG Ev2 Crypto, NFC Devices in Card Emulation Mode (Tag Type 1 ... 4)
- Software development kits
- Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver, PC / SC driver
- Windows Server 2012 and 2016, Windows 7, 8 and 10; 32 / 64 Bit
- Temperature range operation
- −20 °C up to +60 °C
- Temperature range storage
- −40 °C up to +85 °C
- Relative air humidity
- max. 95 % (non-condensing)
