Elo Touch Z30 POS Stand

Name: Elo Touch Z30 POS Stand
Brand: Elo Touch

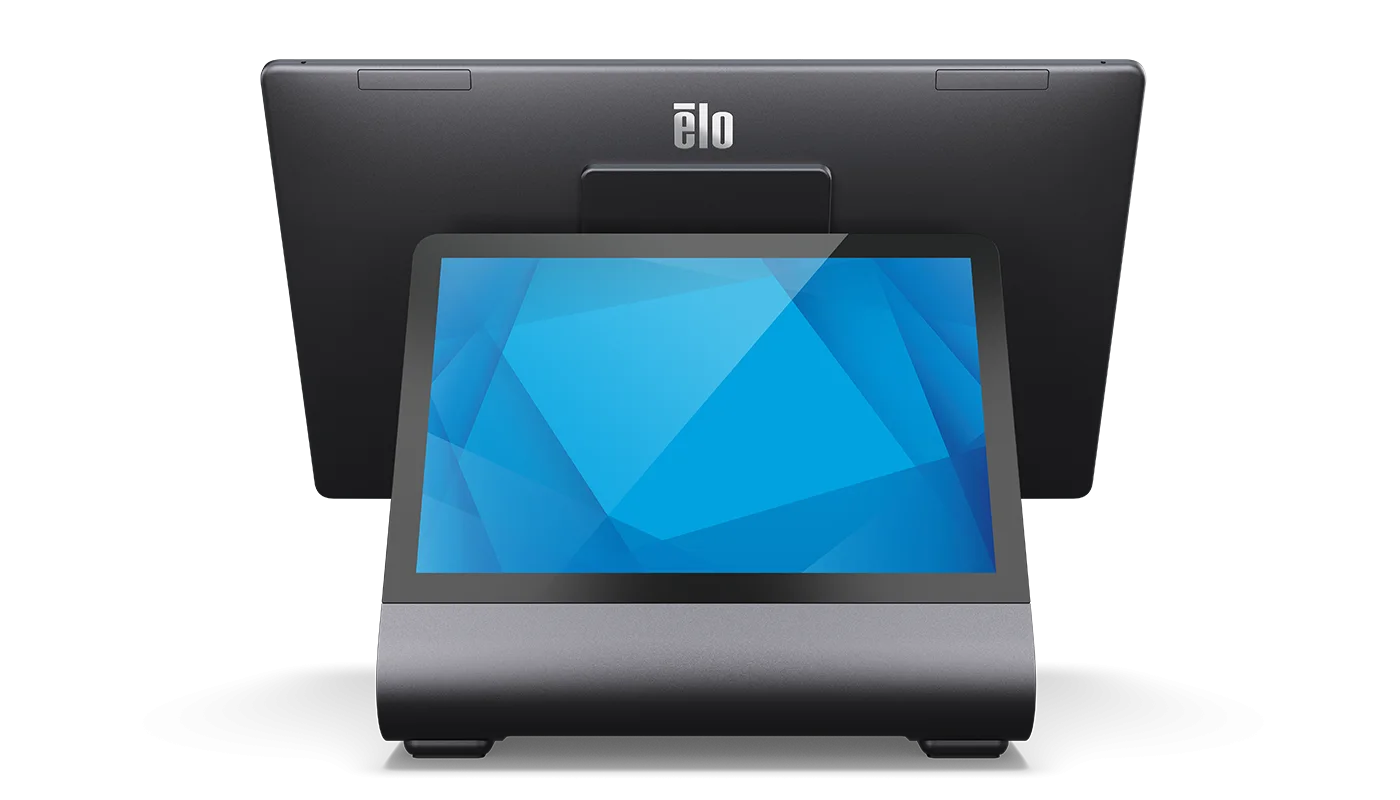

Complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing, the Z30 delivers a beautifully robust point-of-sale stand.

Send a request

Datasheet at Elo Touch Product page at Elo Touch

Overview

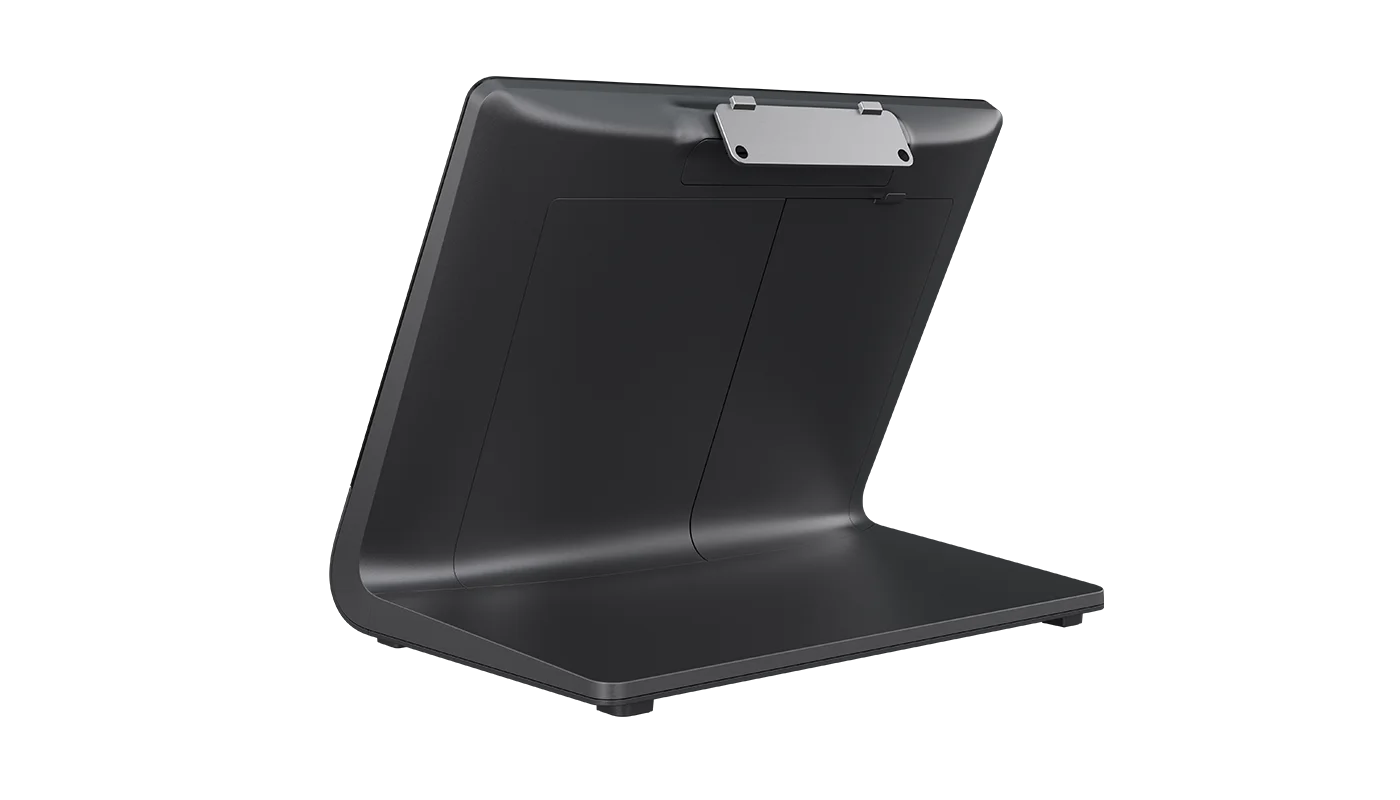

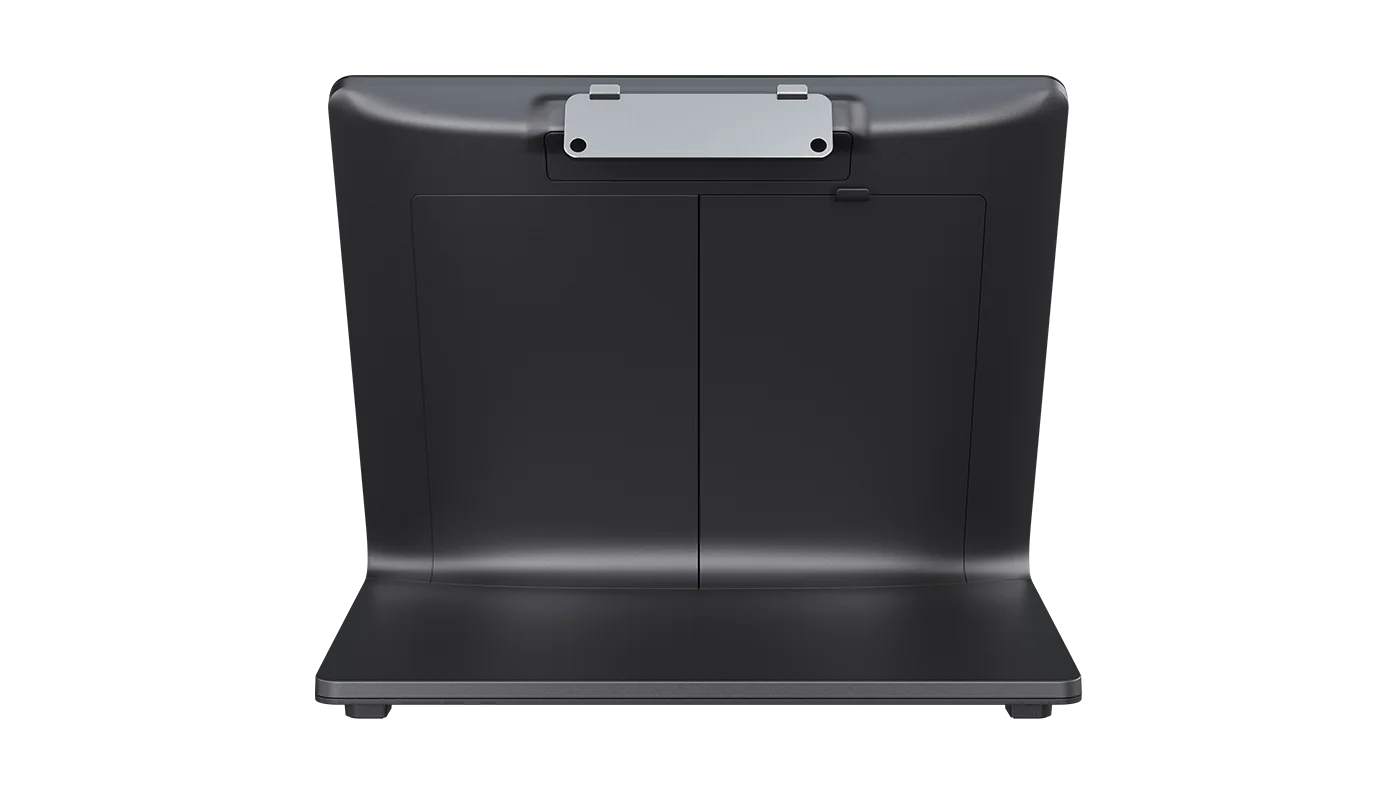

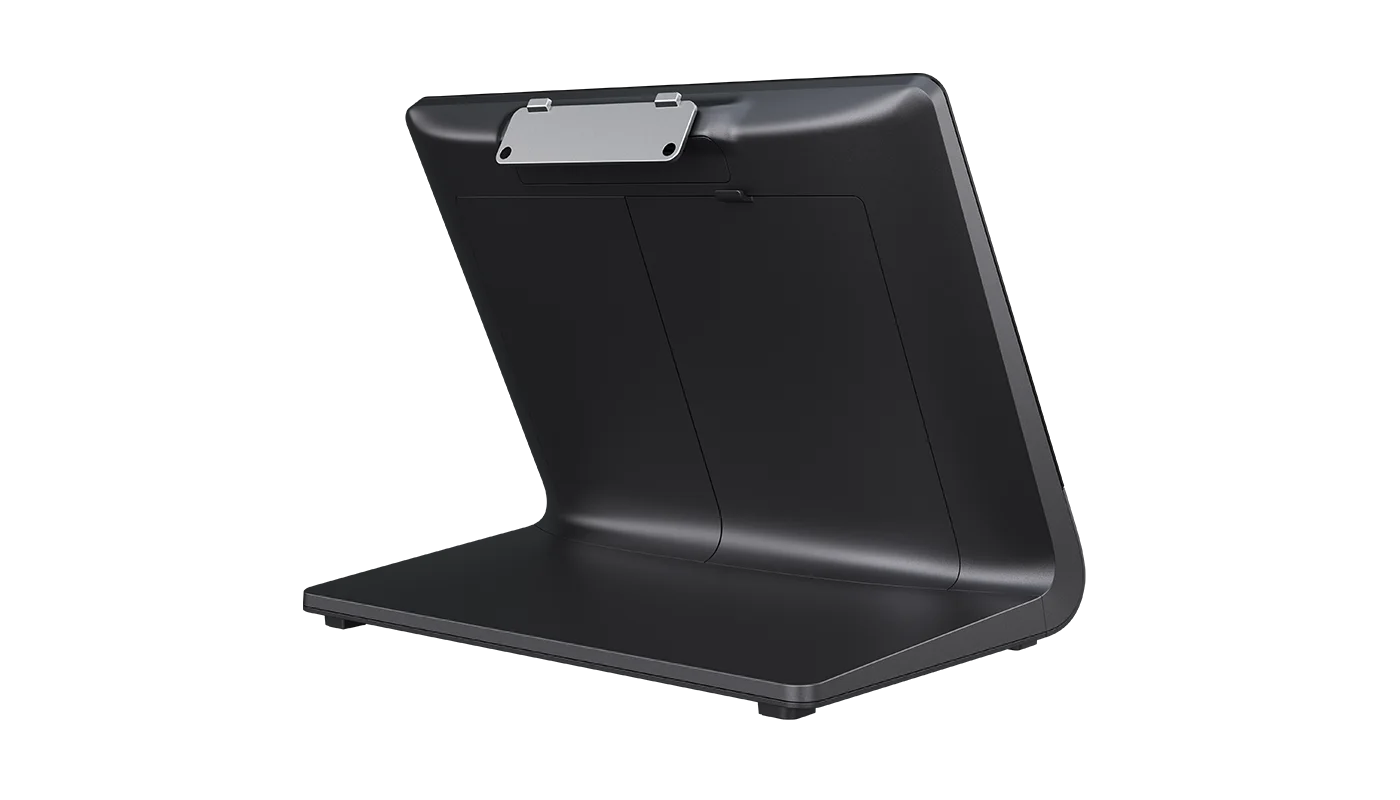

Complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing, the Z30 delivers a beautifully robust point-of-sale stand.

Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Conceal Your Cables Keep your counter clean with the integrated cable routing system.
Single Cable Connection Connect a secondary display with a single USB‑C cable that provides touch, video and power.

Specifications

Technical

Part Number(s): Z30 POS Stand without CFD - E767561; Z30 POS Stand with CFD - E768749; Z30 POS Stand with CFD and NFC - E769881
Enclosure Color: Dark Gray Metallic

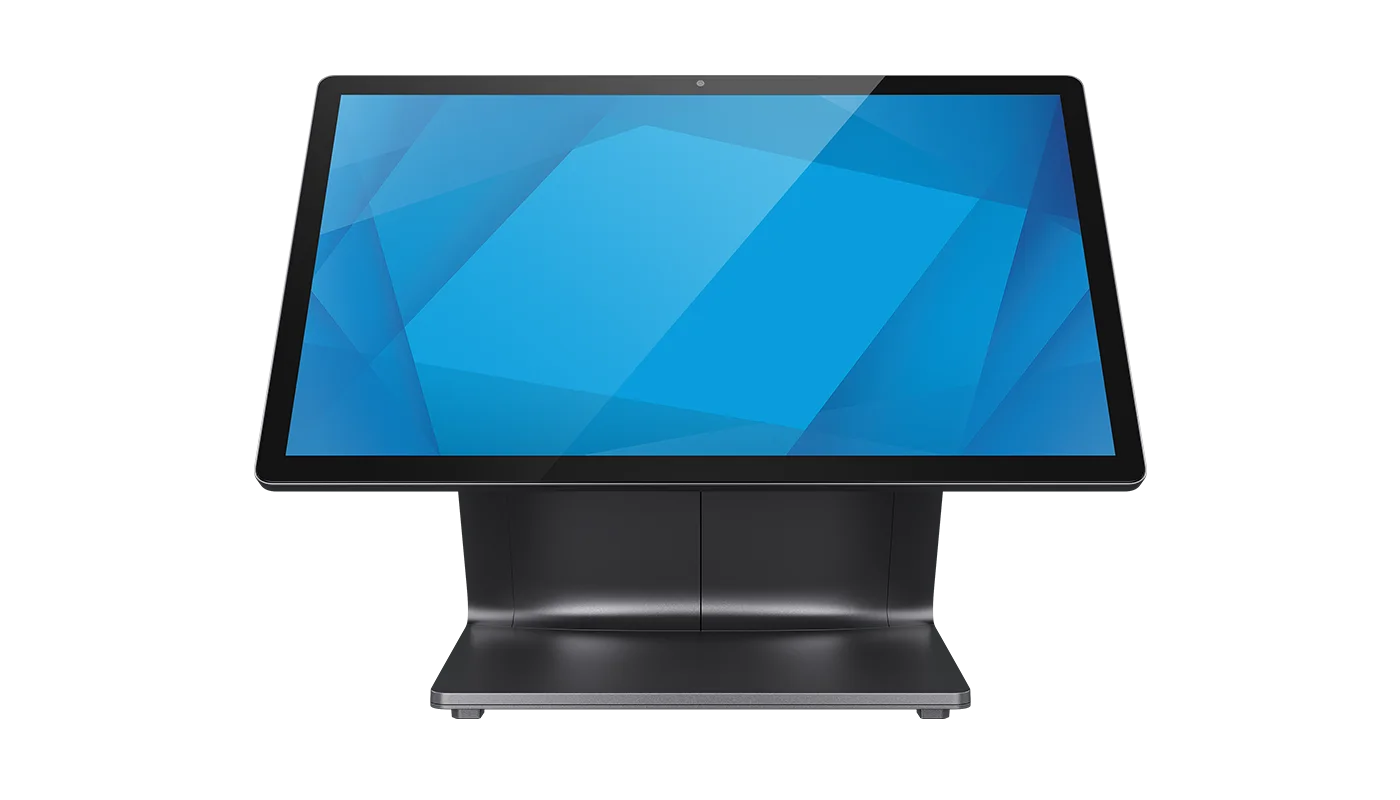

Compatibility: Main Display:; 15" I-Series 3 Slate with Intel (for use with E767561 and E768749); 15" I-Series 5 Slate with Android (for use with E767561, E768749, and E769881); Customer-facing Display (for use with E767561):; 0702L – Elo P/N: E796382; 1002L – Elo P/N: E155834 and E324341; 1302L – Elo P/N: E683595 and E683787; 1502L – Elo P/N: E125496
Display Head Connection: USB-C
I/O Ports: DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit); RJ12 (Cash drawer)* 12/24V; Powered USB 24V; USB-C output - CFD (DisplayPort, Touch & Power Delivery up to 27W); *User will need to select mode

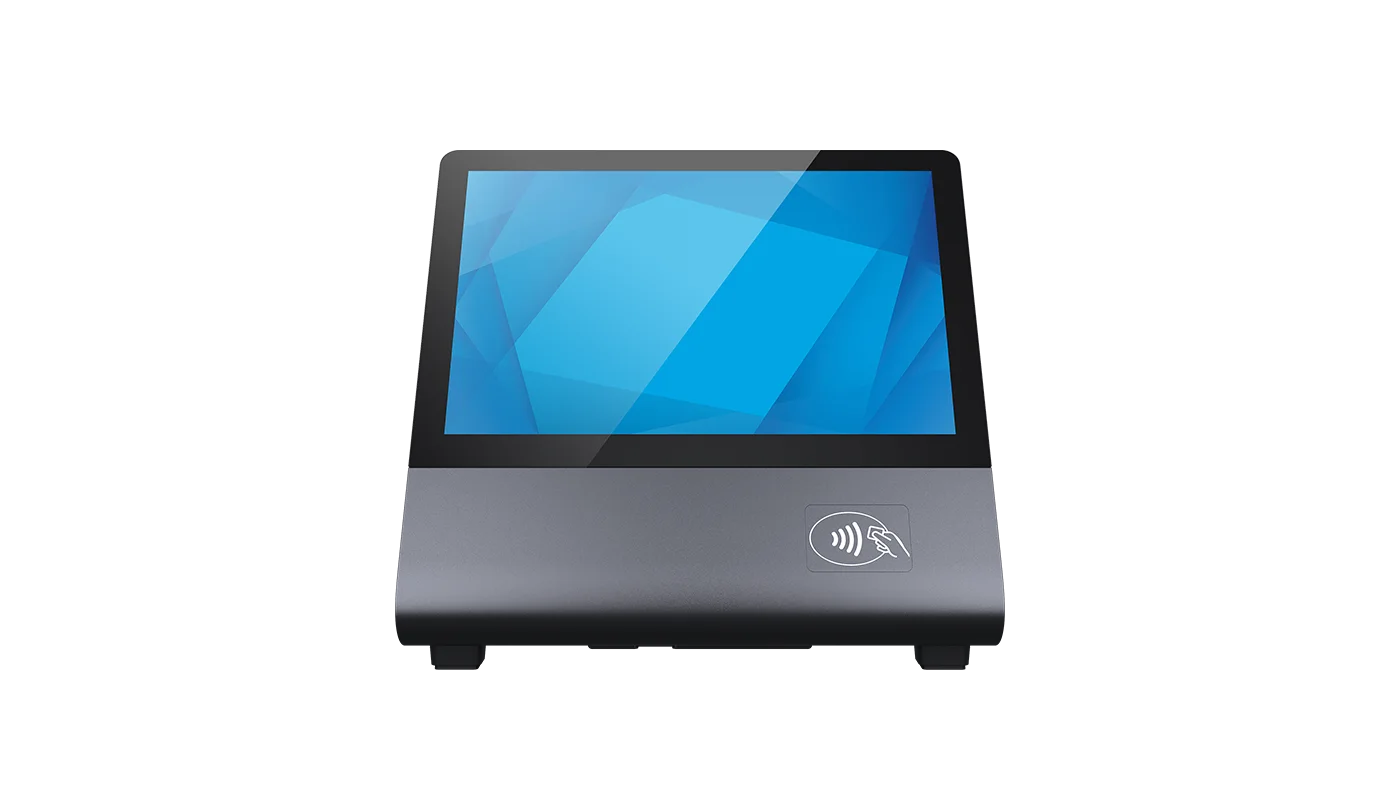

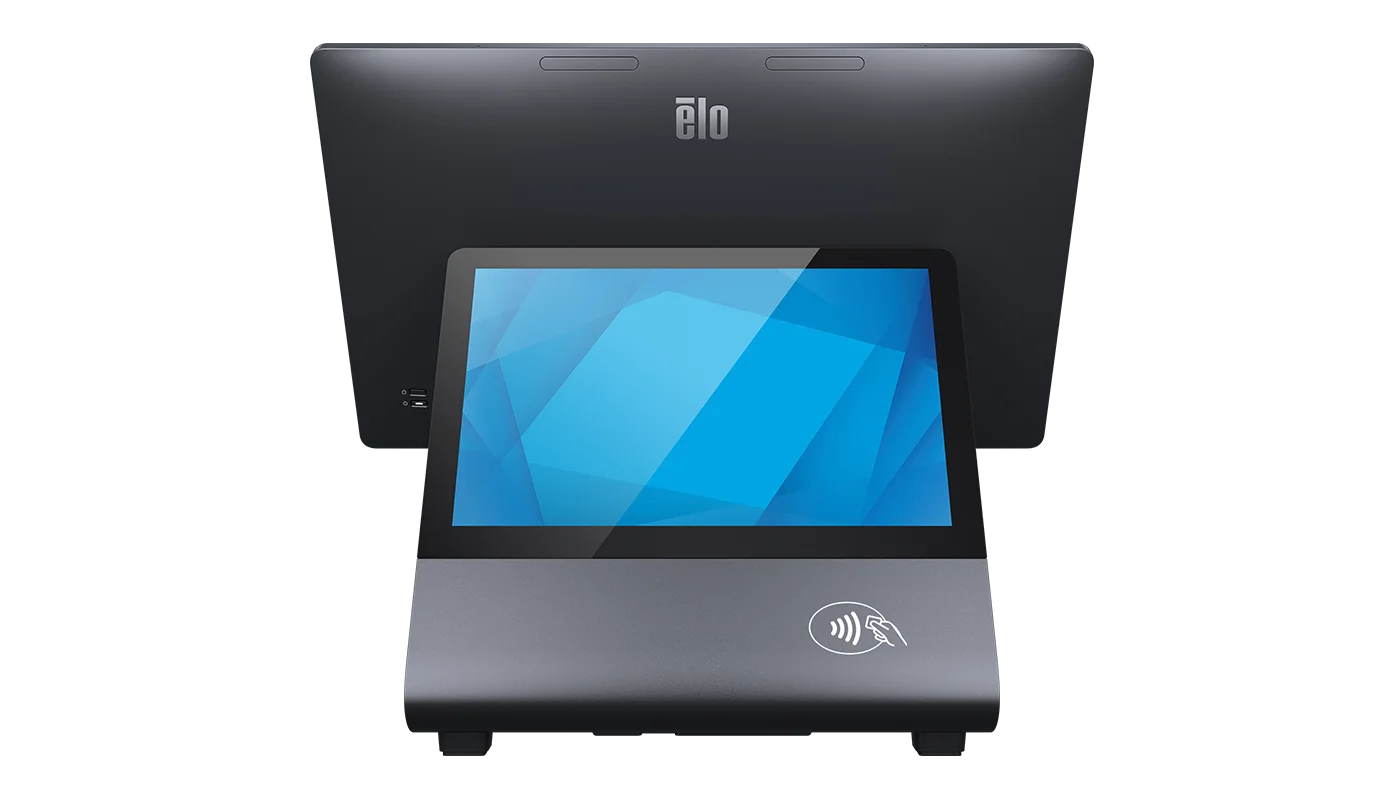

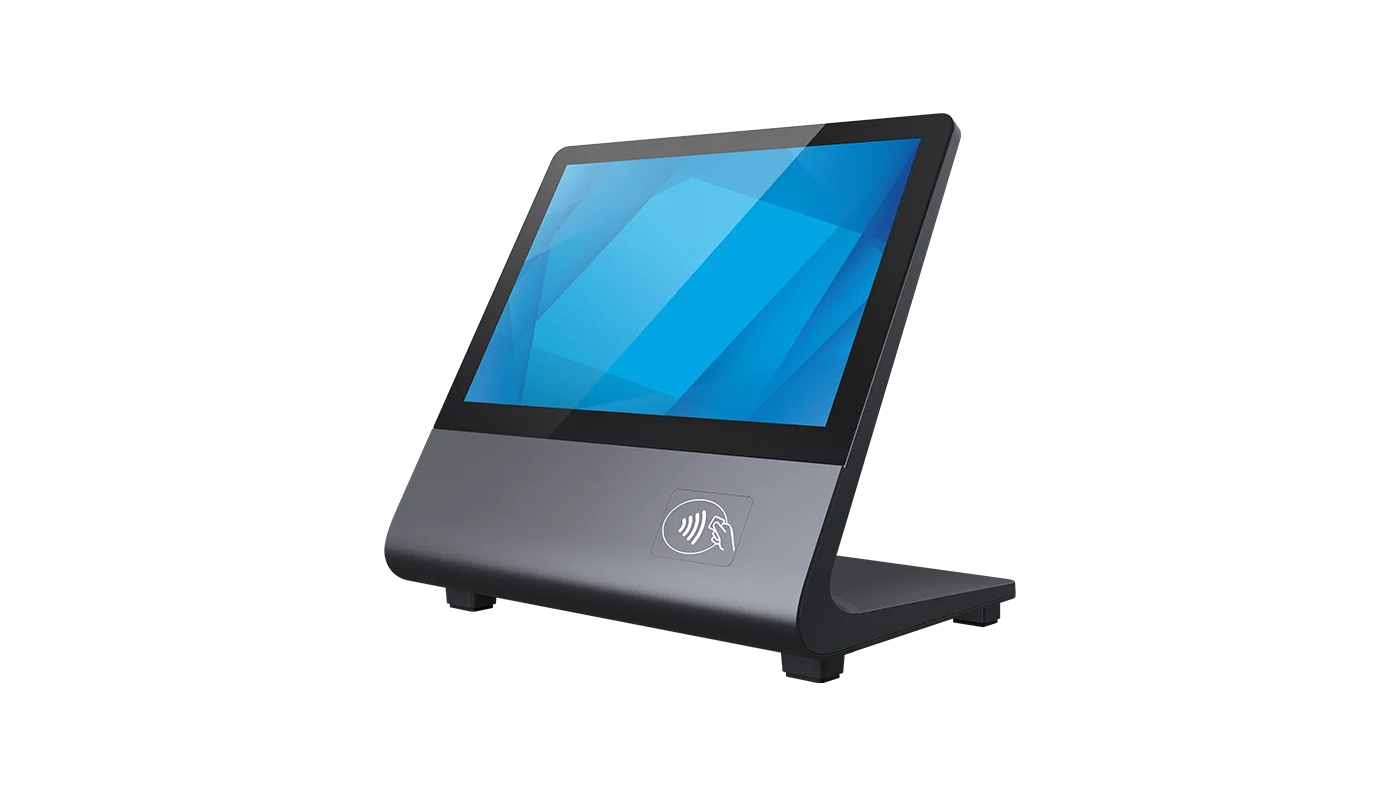

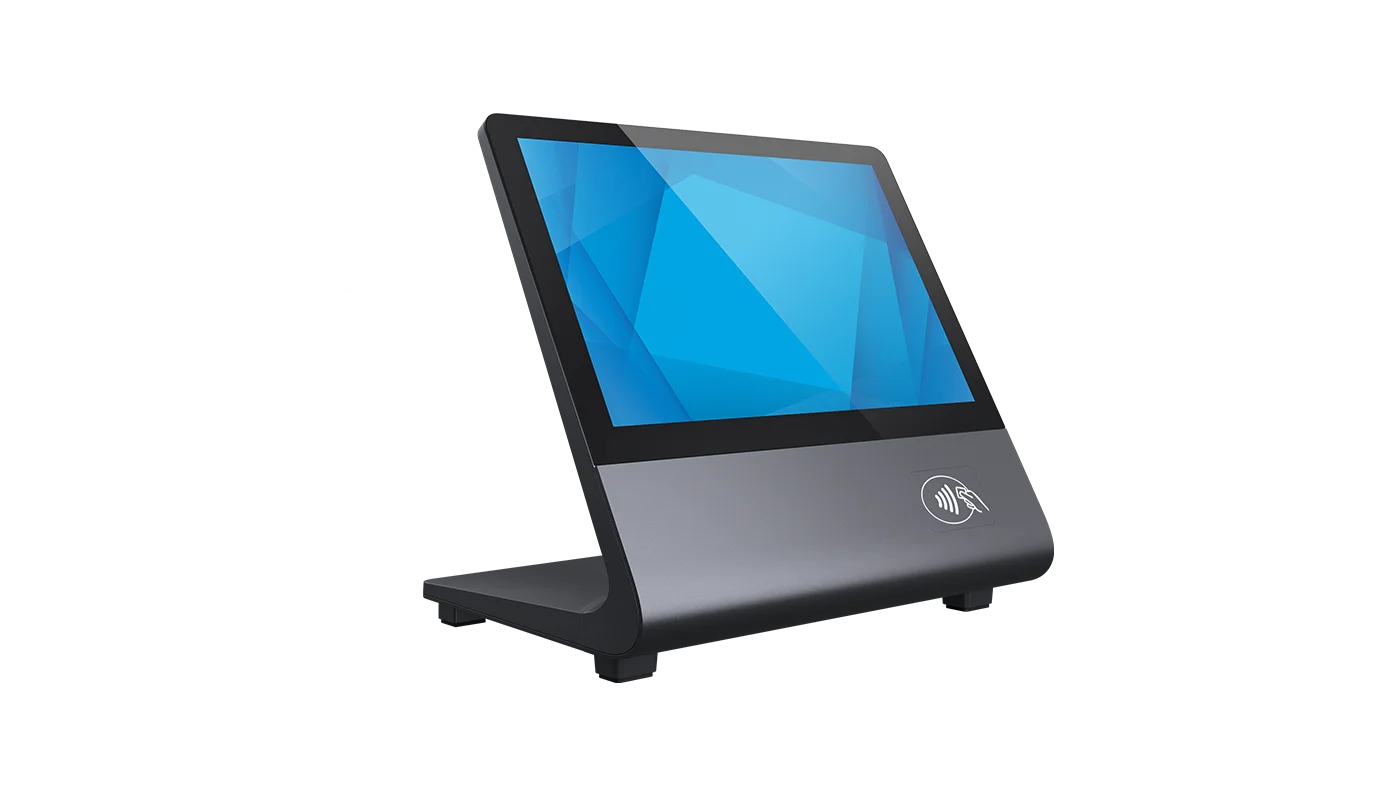

NFC: Front facing NFC antenna; Programmable rear-lit LED illuminates NFC contactless logo (red, green, and white LED); Fully SoftPOS compatible
Power: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Without CFD:; On: 1.2W; Off:

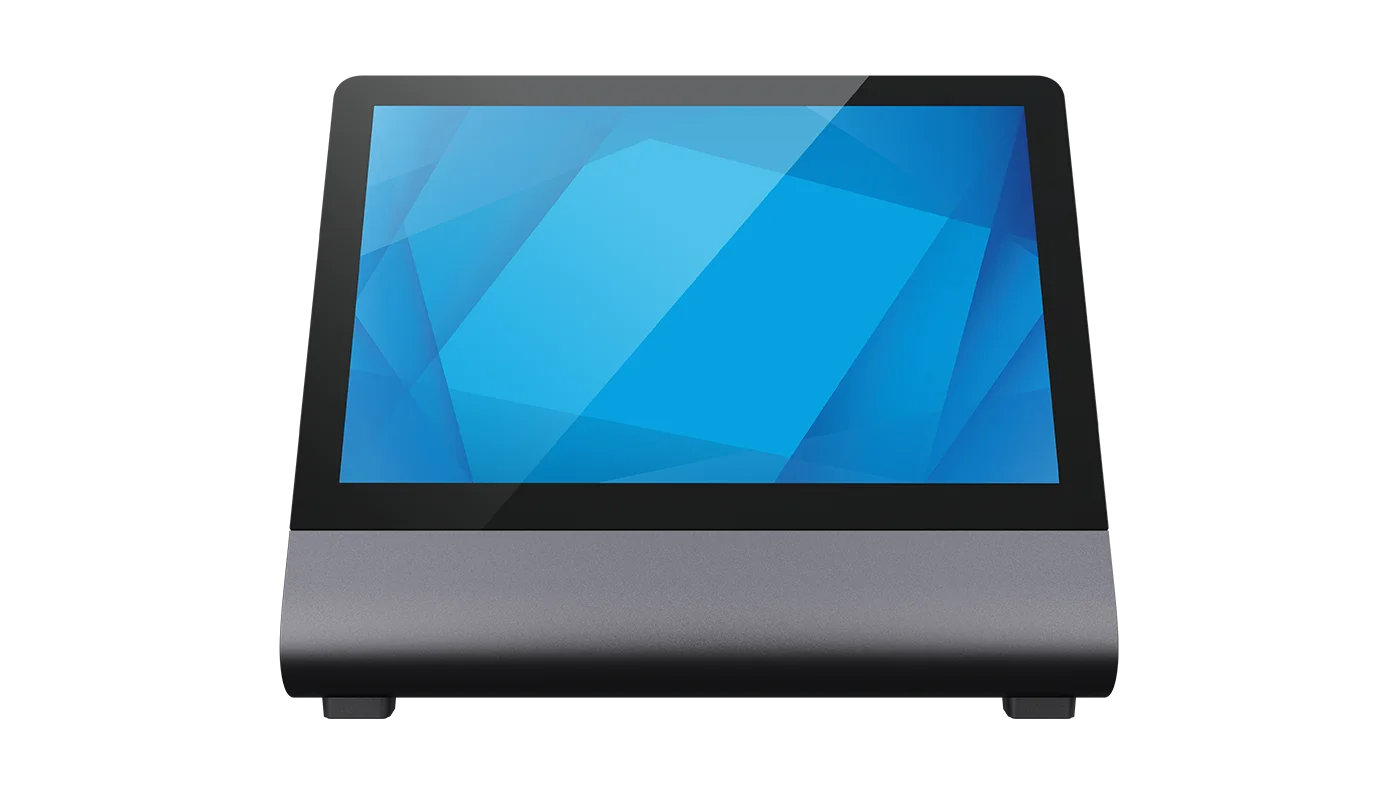

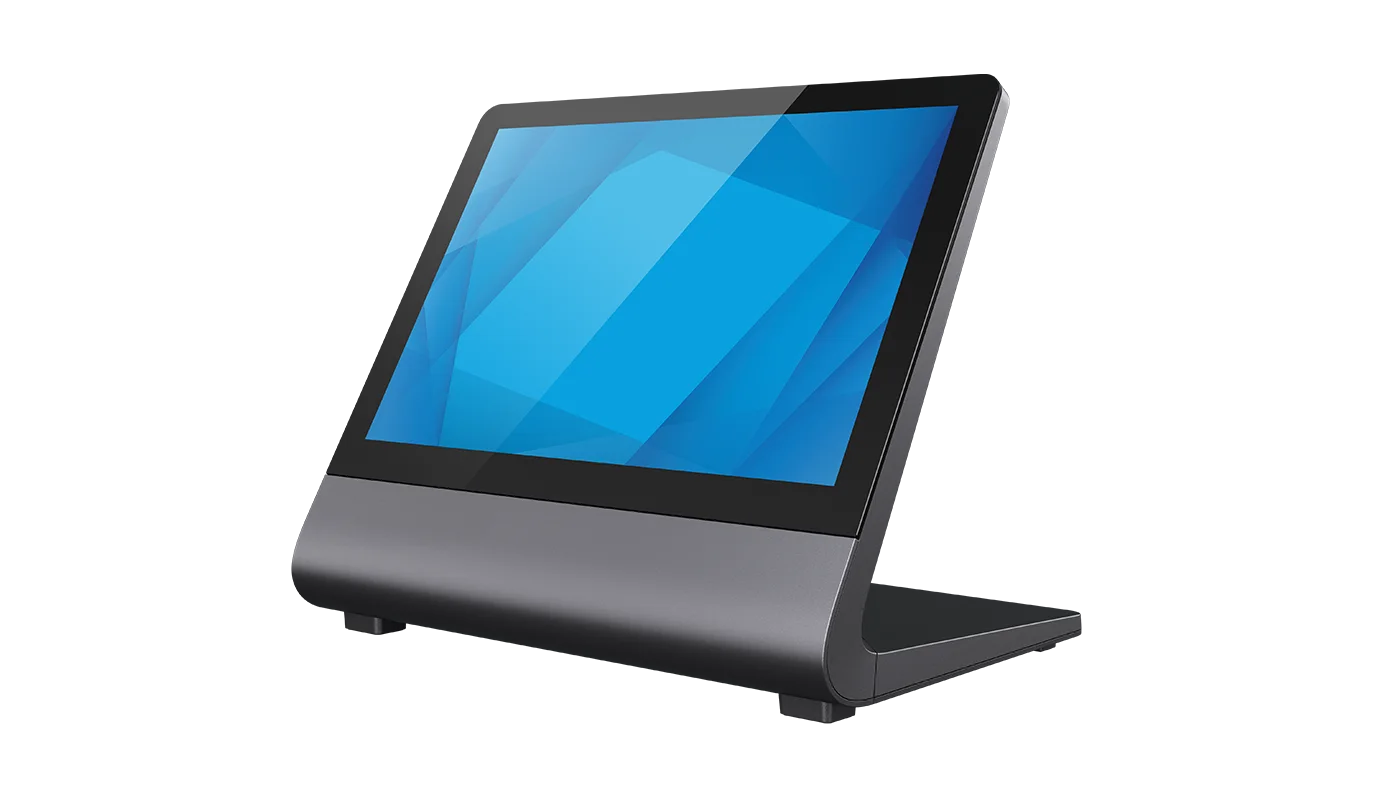

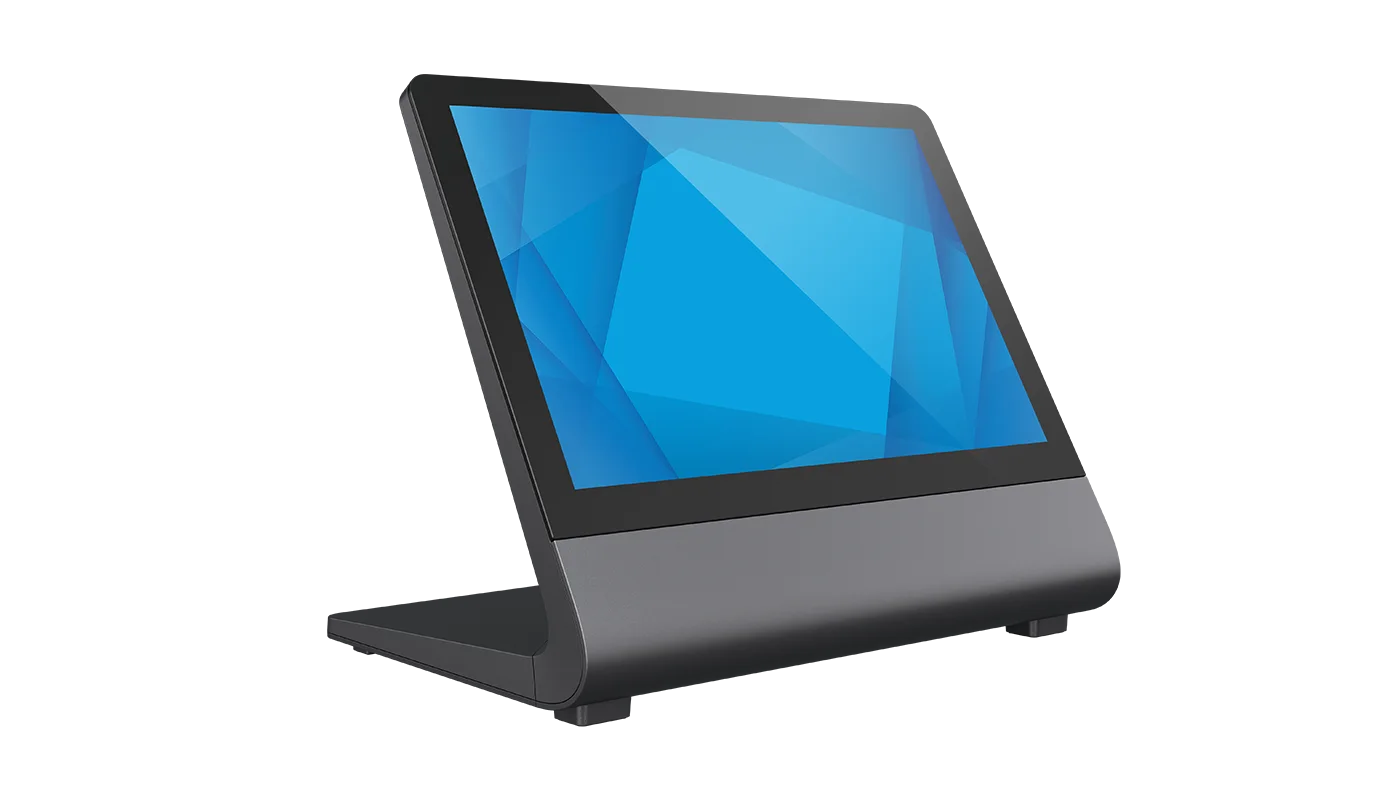

Integrated Customer-Facing Display: Size -10.1 inch; Resolution - 1200x1920 @ 60 Hz; Active Display Area (H x V) - 5.3" x 8.53" / 135.36 mm x 216.58 mm; Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total; Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits; Number of Colors - 8-bit (16.7M); Touch Technology - TouchPro PCAP; Sealing - Touchscreen sealed to LCD; Number of Touches - 10
Weight (Unpackaged): E767561: 4.85 lbs / 2.2 kg; E768749: 5.51 lbs / 2.5 kg; E769881: 6.20 lbs / 2.8 kg
Weight (Packaged): E767561: 9.74 lbs / 4.4 kg; E768749: 10.36 lbs / 4.7 kg; E769881: 10.80 lbs / 4.9 kg
Dimensions: E767561 & E768749: 9.68" x 7.85" x 6.46" / 245.8 mm x 199.3 mm x 164.2 mm; E769881: 9.68" x 8.97" x 6.96" / 245.8 mm x 227.8 mm x 176.9 mm
Shipping Box Dimensions: 12.0" x 11.5" x 12.4" / 305 mm x 292 mm x 315 mm
Operating Temperature: 0° C to 40° C / 32° F to 104° F
Storage Temperature: -20° C to 50° C / -4° F to 122° F
Humidity: Operating: 20% - 80% / Storage: 5% - 95%
MTBF: 50,000 hours demonstrated
Warranty: 2-year
Extended Service Options: 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
Regulatory approvals and declarations: FCC (US); IC (Canada); CE (Europe); VCCI (Japan); RCM (Australia)
What's in the Box: Z30 Gen 2 POS Stand; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 2 x Zip Ties; 2 x M4x6 mm screws in a plastic bag; 1 x M4x8 mm screw in a plastic bag; Base Plate – for mounting to a countertop

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
