Elo Touch · Display
Elo Touch EloPOS Z30

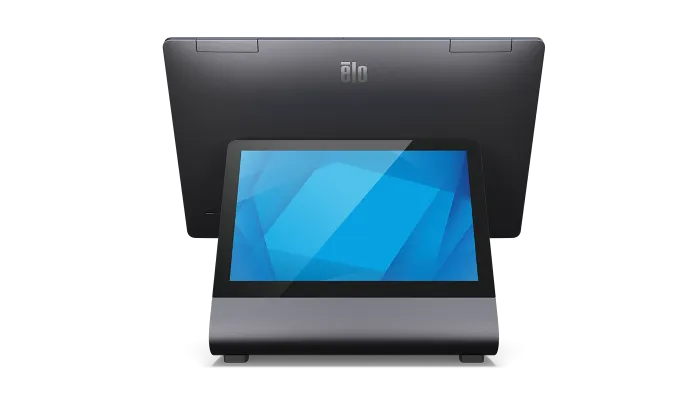

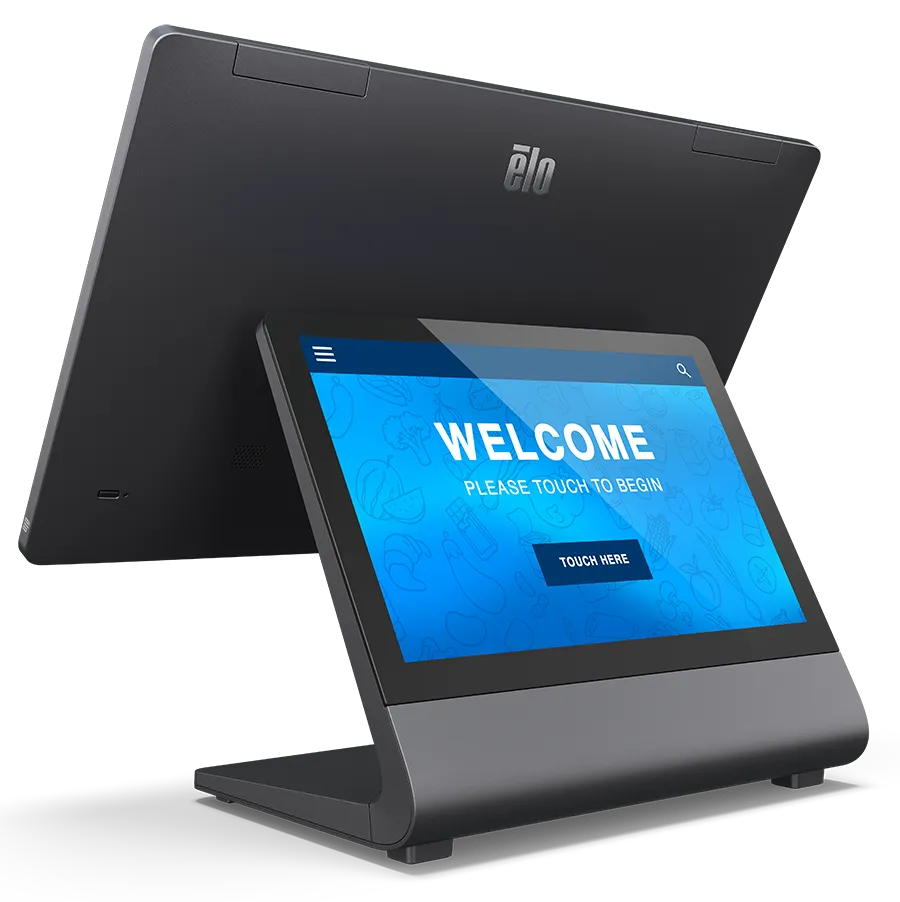

The Intel EloPOS Z30 combines modern design and powerful compute. Complete with a 15.6” touchscreen, built-in CFD and integrated connectivity.
- Operating systemNo OS Windows 10 IoT Enterprise LTSC 64-bit
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- No OS Windows 10 IoT Enterprise LTSC 64-bit
- Processor
- Intel Elkhart Lake J6426
- RAM / storage options
- 128GB M.2 NVME SSD (GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less)
Power
- Charging / power
- External 24VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 150W
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ports / interfaces

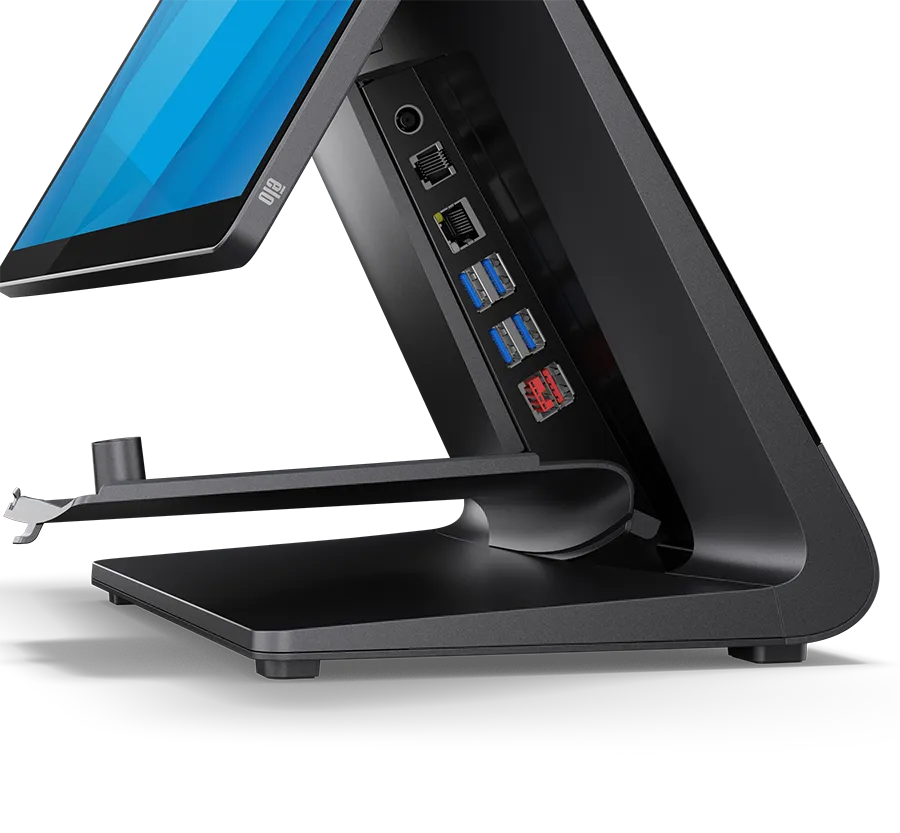

- I/O ports on display: USB-C Connector Supports USB 2.0/3.0, DP output (Requires 20V/40W USB-C Power Delivery 2.0 if not using IO Hub for power) I/O ports on stand: DC in Jack 4x USB3.0 LAN RJ45 (Gigabit) (wo Wake on Lan at S5 support) RJ12 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by BIOS) Powered USB 24V Full-function USB-C (Power up to 27W, USB 3.0, Display Port) (non-CFD model only)
Rugged
- Operating temperature
- 0°C to 35°C / 32°F to 95°F
- Storage temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 10% to 90% Storage: 0% to 95% (38.7℃ max wet bulb temperature)
Size
- Dimensions
- 14.3" x 17.6" x 7.10" / 362.8 mm x 298.7 mm x 180.4 mm
Software & service
- Warranty
- 3-year
